Description

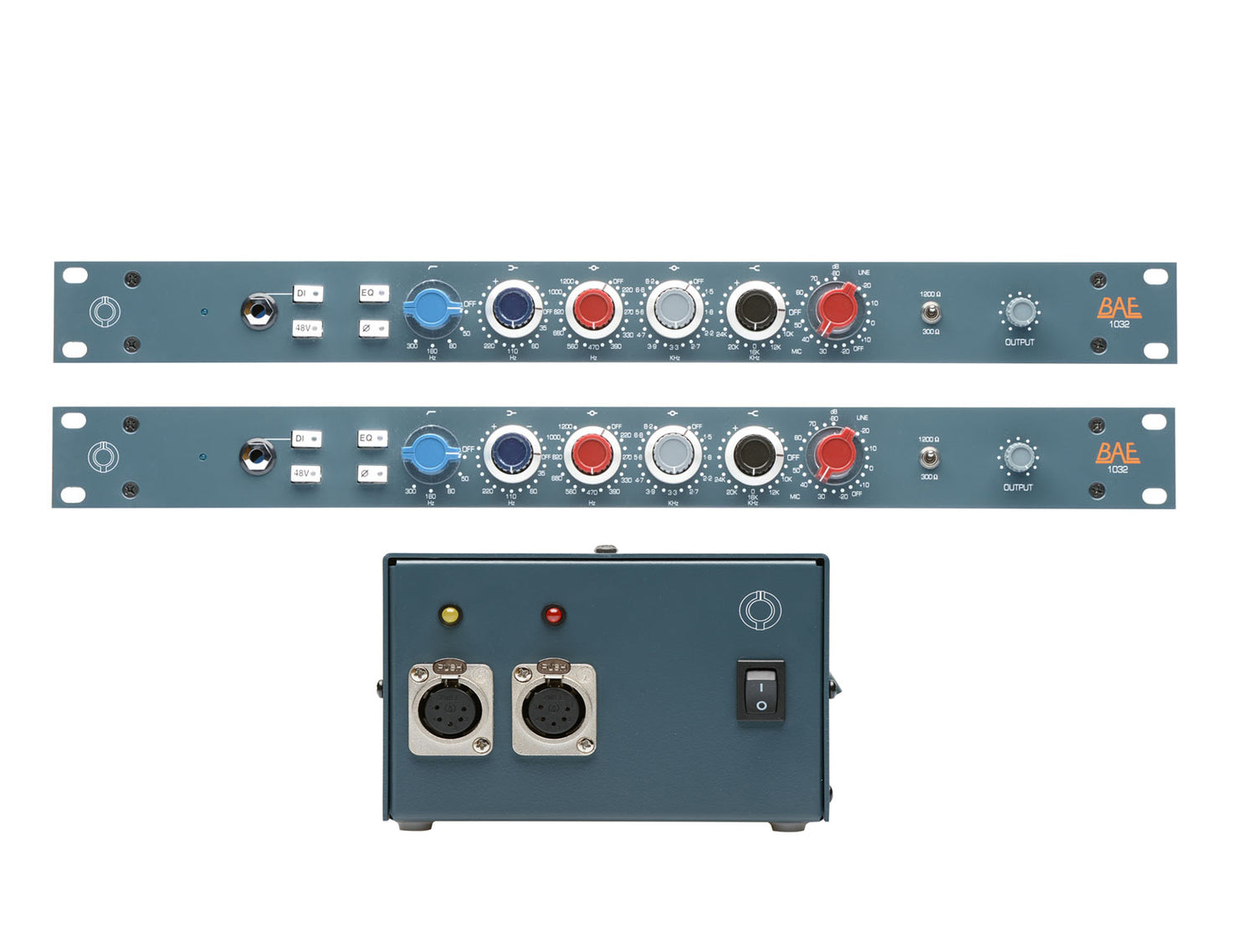

The BAE 1032 19" Pair with Power Supply combines two 1032 4-band mic/line preamps in a convenient rackmount configuration. Inspired by the classic 1081’s EQ frequencies, the 1032 pairs a flexible four-band equalizer with the Class A, transformer-coupled preamp design associated with the 1073. Each channel is hand wired and uses discrete components and modular cards, supporting dependable performance and long-term serviceability.

Its EQ section provides broad control for shaping and correcting a wide range of sources. Overlapping low-mid and high-mid frequency selections make it easier to target problem areas, while the expanded high-frequency shelving extends up to 24 kHz for detailed high-end adjustment without sacrificing midrange control. A passive inductor high-pass filter adds further flexibility for managing unwanted low frequencies.

High-quality Swiss-made Elma® rotary switches complement the robust construction and precise controls. Supplied as a pair in a 19-inch rackmount format with a power supply, this version offers two channels of BAE’s 1081-inspired EQ flexibility combined with Class A transformer-coupled amplification.

Features

1081-Inspired Equalizer
Classic EQ character provides flexible tone shaping for recording and mixing.

Class A Signal Path
Transformer-coupled Class A circuitry delivers the rich, musical sound associated with classic BAE preamps.

Four-Band EQ
Four bands provide broad control for shaping lows, mids, and highs.

Overlapping Mid Bands
High-mid and low-mid frequency ranges overlap, making it easier to target and correct problem areas.

Extended High-Frequency Control
A versatile high-frequency shelf allows added clarity and air without compromising the midrange.

High-Pass Filter
A passive inductor-based filter helps clean up unwanted low-frequency content.

Discrete Construction
Hand-wired, all-discrete circuitry maintains a traditional analog design and signal path.

Modular Design
Modular cards make the unit easier to service and maintain over the long term.

Premium Rotary Controls
High-quality Swiss-made Elma rotary switches provide precise, dependable operation.

Specifications

General Specifications
Device Type: Dual 19-inch microphone preamplifier/equalizer pair with power supply
Preamplifier Type: Class A
Maximum Gain: >80 dB
Input Impedance Selection: HI/LO
Input Configuration: Balanced and floating

Equalizer
Equalizer Engagement: EQ button
High Frequency Gain: ±16 dB
High Frequency Shelving: 10 kHz, 12 kHz, 16 kHz, 20 kHz, 24 kHz
Low Frequency Gain: ±16 dB
Low Frequency Shelving: 35 Hz, 60 Hz, 110 Hz, 220 Hz

Upper Mid Frequency
Gain: ±18 dB
Response: Peaking
Q: Fixed
Center Frequencies: 1.5 kHz, 1.8 kHz, 2.2 kHz, 2.7 kHz, 3.3 kHz, 3.9 kHz, 4.7 kHz, 5.6 kHz, 6.8 kHz, 8.2 kHz
Circuit: Inductor based

Lower Mid Frequency
Gain: ±18 dB
Response: Peaking
Q: Fixed
Center Frequencies: 220 Hz, 270 Hz, 330 Hz, 390 Hz, 470 Hz, 560 Hz, 680 Hz, 820 Hz, 1 kHz, 1.2 kHz
Circuit: Inductor based

High Pass Filter
Slope: 18 dB/octave
Selectable Frequencies: 50 Hz, 80 Hz, 160 Hz, 300 Hz
Circuit: Inductor based

Inputs and Outputs
Microphone Input Impedance HI: ≥1,200 Ω
Microphone Input Impedance LO: 300 Ω
Line Input Impedance: 10 kΩ bridging
Line Input Configuration: Transformer balanced and floating
Output Impedance: <75 Ω
Output Configuration: Transformer balanced and floating
Rated Load: 600 Ω
Maximum Output at 600 Ω: >+26 dBm
Maximum Output at 10 kΩ: >+32 dBu

Performance
Frequency Response: 20 Hz (+0.3 dB) to 20 kHz (-0.2 dB)
THD at 1 kHz: <0.025%
THD at 100 Hz: <0.05%
Noise: <-100 dBm

Controls
Phase Reverse: 180°
Equalizer Enable: Switchable

Power
Supply Voltage: 24 VDC
Current Consumption: 110 mA
