WARM AUDIO

JUDE-MP

Dual Mic-Preamps

Single-channel dual-discrete microphone preamp, Class-A amplifier, CineMag transformers, 9-position Z-Match impedance control, 65–76 dB gain

$1,149.00 CAD
Shipping calculated at checkout.
Want an alert when this item is on sale?

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.


Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.


Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Warm Audio Sound Techniques Jude Microphone Preamp brings the original Sound Techniques “A-Range” console preamp circuit from London’s legendary Trident Studios into a dedicated single-channel design. Created in collaboration with Sound Techniques and based on Geoff Frost’s original console schematics, Jude preserves the dual-discrete 3035 Class-A amplifier topology and transformer-coupled signal path associated with recordings from artists including The Beatles, David Bowie, Elton John, and Queen. Custom CineMag input and output transformers, premium capacitors, carbon resistors, and carefully hand-wired construction help retain the depth, punch, saturation, and musical character of the historic design.

Its distinctive 9-position Z-Match control is derived from the original Sound Techniques impedance-matching circuit, allowing the preamp to interact differently with a wide range of vintage and modern microphones. By changing input impedance, engineers can explore subtle variations in gain, response, and tonal character, making Jude equally useful for adding richness to vocals, guitars, piano, drums, and other sources. Up to 76 dB of preamp gain provides ample range for demanding microphones and quieter signals.

Jude also includes practical studio controls such as 48V phantom power, polarity switching, line-level operation, XLR and 1/4-inch connectivity, and VU meter level indication. Housed in a steel chassis with an aluminum faceplate, it combines the character of a celebrated 1960s and 1970s British console circuit with the connectivity and reliability expected in a modern recording setup.

Features

Original Sound Techniques Console Circuit
Delivers the authentic character of the legendary console preamp used on some of the most influential British recordings of the era.

Classic British Console Tone
Adds depth, punch, warmth, and musical character inspired by iconic recordings from the 1960s and 1970s.

Dual-Discrete Class-A Preamp Design
Uses the original amplifier topology to provide rich, detailed sound with the response and feel of a vintage studio console.

Custom CineMag Transformers
Carefully matched input and output transformers help create the full-bodied tone and natural saturation associated with classic analog recording equipment.

Z-Match Tone Control
Lets you change how the microphone interacts with the preamp, making it easy to explore different tonal colors from virtually any microphone.

Hand-Wired Construction
Built with carefully selected audio components and a hand-wired design to preserve the performance and character of the original console circuitry.

Flexible Microphone and Line Recording
Works with microphones and line-level sources, making it suitable for vocals, guitars, piano, drums, and other studio instruments.

Phantom Power and Polarity Control
Provides essential studio controls for working with condenser microphones and handling common recording situations.

VU Meter Level Monitoring
The built-in analog meter makes it easy to monitor signal level while adding a classic studio-console look and feel.

Durable Studio Construction
Features a rugged metal chassis designed for dependable use in professional and home recording environments.

Five-Year Warranty
Backed by Warm Audio’s five-year warranty and individually tested for reliable studio performance.

Specifications

General Specifications
Device Type: Single-channel, dual-discrete console microphone preamp
Circuit Topology: Sound Techniques A-Range console preamp circuit
Amplifier: Dual-discrete 3035 Class-A
Construction: Hand-wired PCB
Input Gain: Variable based on Z-Match impedance setting
Preamp Gain: 65–76 dB at 40 Ω source impedance
Input Transformer: Custom-wound 3-impedance CineMag
Output Transformer: Custom-wound high-purity nickel CineMag
Capacitors: Nichicon audio-grade and Wima
Faceplate Material: Aluminum
Chassis Material: Steel
Country of Origin: China

Audio Performance
Frequency Response: 10 Hz–25 kHz ±2 dB
Equivalent Input Noise: -128 dBu A-weighted
Self-Noise: -99 dBu A-weighted
THD: 0.008%

Impedance and Tone Control
Mic Input Impedance: 60 Ω | 200 Ω | 1.5 kΩ
Z-Match Control: 9-position
Z-Match Circuit: 8-lead impedance-matching design

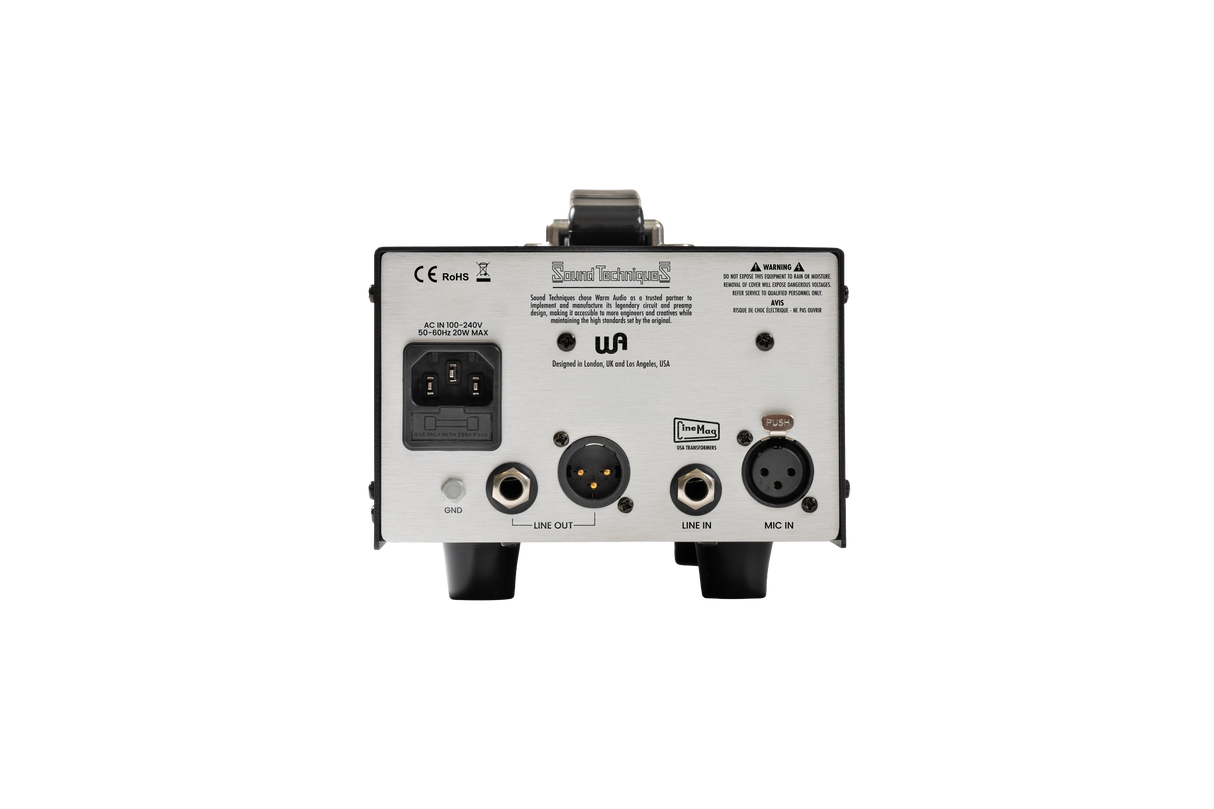

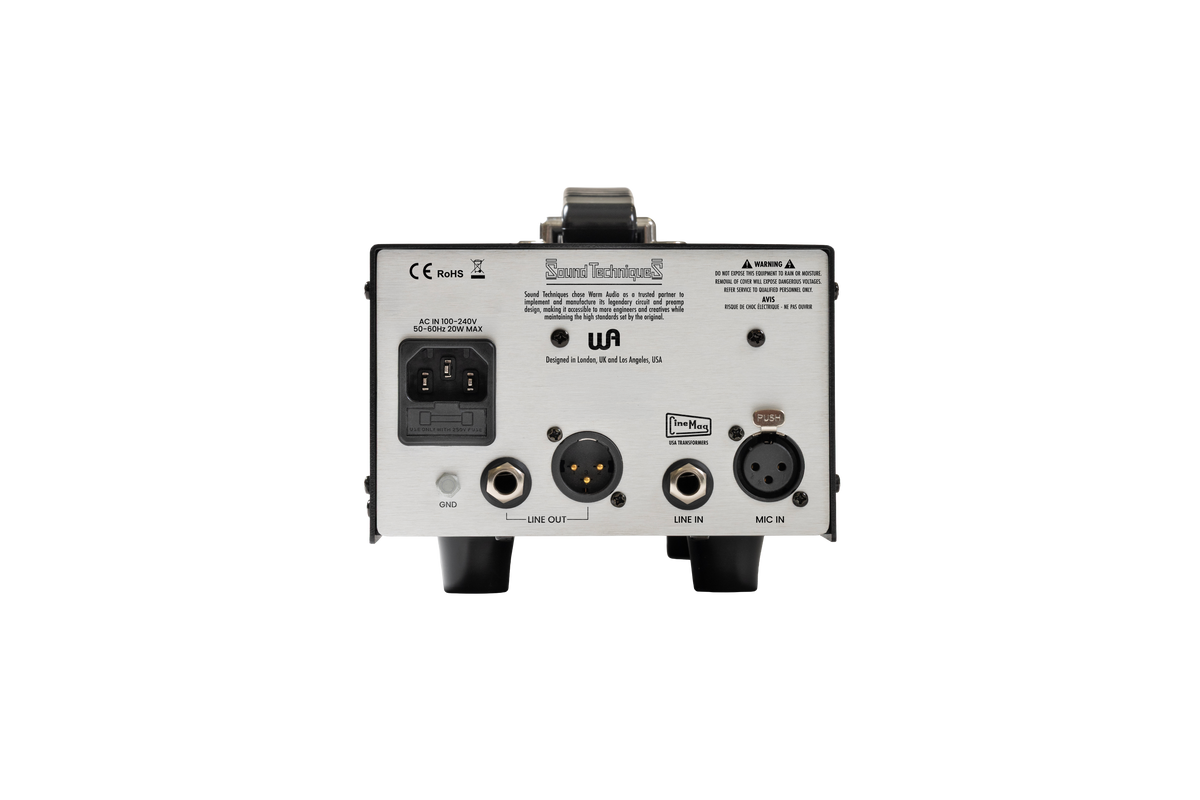

Inputs and Outputs
Microphone Input: XLR
Line Input: 1/4 in TS/TRS
Line Outputs: XLR | 1/4 in TRS

Controls and Indicators
Phantom Power: 48 V
Polarity Switch: Yes
Line-Level Switch: Yes
Level Meter: VU meter

Dimensions and Weight
Dimensions: 5.2 × 5.6 × 13.6 in
Dimensions: 13.2 × 14.2 × 34.5 cm
Weight: 6.5 lb
Weight: 2.95 kg

Packaging
Package Dimensions: 11.5 × 15.7 × 6.4 in
Package Dimensions: 29.3 × 39.9 × 16.2 cm
Package Weight: 8.3 lb
Package Weight: 3.76 kg
