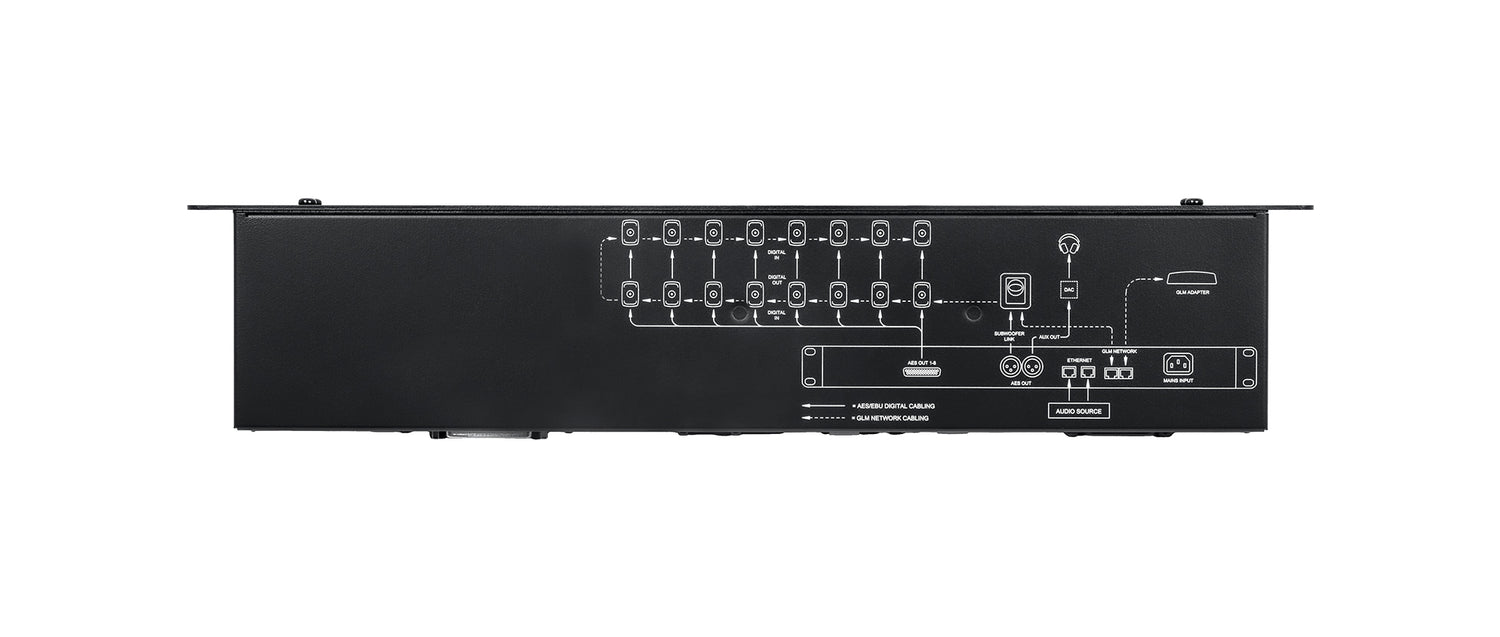

9402A

Audio-over-IP Integration
Connects networked audio sources directly to Genelec monitoring systems using widely adopted professional audio formats.

Immersive Monitoring Support
Handles multichannel audio for surround and immersive studio setups.

Digital Monitor Outputs
Sends clean AES/EBU audio directly to compatible Genelec monitors without altering the source signal.

Dedicated Subwoofer Connection
Provides a direct digital link for compatible Genelec subwoofers and supports coordinated bass management.

Flexible Stereo Output
Offers an additional stereo output for headphones or a separate monitoring system.

Redundant Network Operation
Uses dual network connections to help maintain uninterrupted audio if the primary connection fails.

GLM System Management
Works with Genelec Loudspeaker Manager for system setup, channel assignment, calibration, and alignment.

Automatic Room Calibration
Supports complete monitoring-system calibration to improve consistency at the listening position.

Front-Panel Status Indicators
Shows power and output activity clearly for quick system checks.

Energy-Saving Operation
Automatically enters a low-power state when no audio stream is present and returns to normal operation when audio resumes.

Rack-Mount Design
Fits easily into professional studio and equipment-rack installations.

General Specifications
Device Type: Audio-over-IP system management device
Primary Function: Dante, AES67, and ST2110-30 to AES/EBU conversion
Monitoring Support: Smart Active Monitoring monitors and subwoofers
Maximum Monitoring Layout: 9.1.6 with LFE
Main Audio Channels: 16
Auxiliary Audio Channels: 2
Internal Routing Matrix: 64 × 64 channels
Conversion Accuracy: Bit perfect
Clock Synchronization: Sample accurate

Network Specifications
Network Interface: 1000BASE-T Gigabit Ethernet
Ethernet Connectors: 2 × RJ45
Network Port Modes: Primary and secondary
Redundant Networking: ST2022-7
Secondary Port Default Mode: Switched
IP Addressing: Zero-configuration, DHCP, static IP
Supported Network Speeds: 1 Gbps
Unsupported Network Speeds: 10BASE-T, 100BASE-T
Minimum Cable Category: Cat 5e
Recommended Network Type: Managed Gigabit Ethernet
Recommended Switch Features: QoS, DiffServ, multicast support
Redundant Network Architecture: Spine-leaf
Standard Network Architecture: Star
Wireless Audio Networking: Not supported

Audio-over-IP Specifications
Supported Input Formats: Dante, AES67, ST2110-30
ST2110-30 Conformance Levels: A, B, AX, BX
AES67 Maximum Channels per Stream: 8
AES67 Streams Required for 16 Channels: 2
AES67 Packet Times: 125 µs, 250 µs, 333 µs, 1 ms
Clock Protocol: IEEE 1588-2008 PTPv2
PTP Operation: Clock source or network clock follower
Digital Audio Word Length: 16 to 32 bits
AES/EBU Output Word Length: Up to 24 bits
Sample Rate Range: 44.1 to 192 kHz
AES67/ST2110 Maximum Sample Rate: 96 kHz
AES/EBU Transmission Mode: Single-wire
Dual-wire AES/EBU: Not supported
Minimum Latency: 0.25 ms
End-to-End Latency: Less than 3 ms, buffer dependent

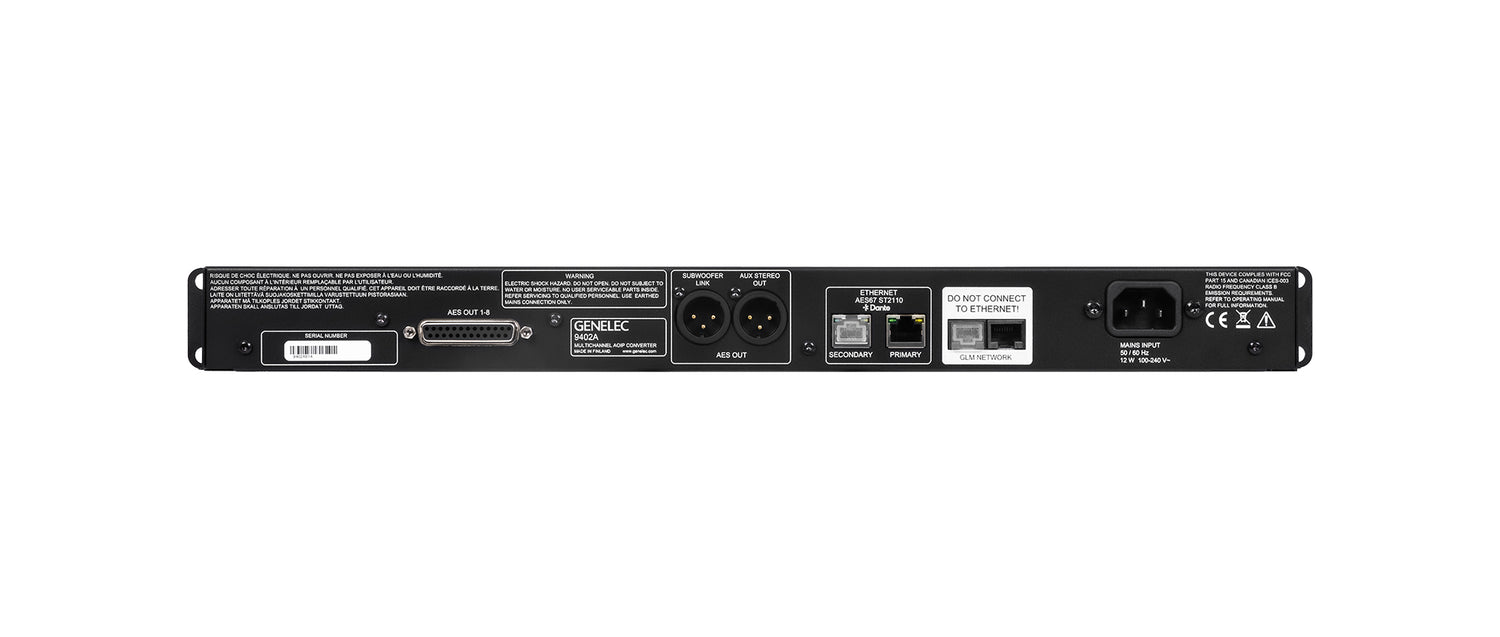

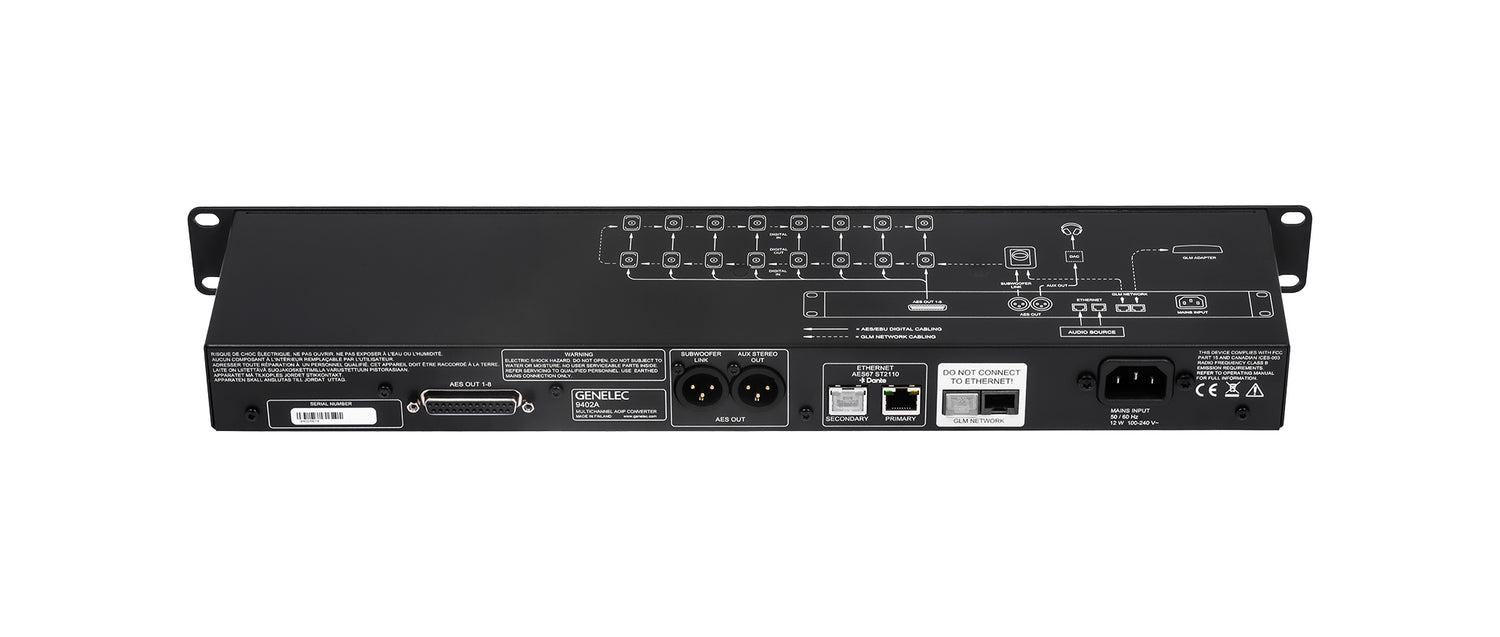

Main Digital Audio Outputs
Output Format: AES/EBU, AES3-2003
Main Output Connector: DB25
AES/EBU Output Pairs: 8
Output Audio Channels: 16
Connector Standard: AES59
DB25 Wiring: Tascam analogue pinout
Recommended Fan-Out: DB25 to 8 × XLR male
Output Signal Processing: Bit-for-bit copy of input stream
Output Impedance: 110 Ω differential
Output Level: 2.5 Vpp
Maximum AES/EBU Cable Length: 100 m
S/PDIF Compatibility: Supported with impedance converter
AES3id Compatibility: Supported with impedance converter

Subwoofer Output
Connector: 1 × XLR male
Signal Format: AES/EBU
Subframe A: Sum of main channels without LFE
Subframe B: Assigned LFE channel
Compatible Subwoofers: 7300 Series Smart Active Monitoring subwoofers
Daisy-Chaining: Supported through subwoofer AES/EBU output
LFE Assignment: Configurable by output and subframe
LFE Gain Option: +10 dB
Bass Management: GLM configurable

Auxiliary Output
Connector: 1 × XLR male
Signal Format: Stereo AES/EBU
Audio Channels: 2
Channel Assignment: GLM configurable
Applications: Stereo monitors, DAC, headphone monitoring

Management and Control
Management Platform: Genelec Loudspeaker Manager
Advanced Network Configuration: Dante Controller, Dante Domain Manager, Dante Director
GLM Network Connectors: 2 × RJ45
GLM Connector Type: 8P8C
GLM Ethernet Compatibility: None
GLM Power over Ethernet Compatibility: None
Minimum GLM Software Version: 5.2
System Controller Compatibility: 9320A Reference Controller, GLM Adapter
Automatic Calibration: Supported
System Alignment: Supported
Standalone Stored Settings: Supported
Factory Reset: Power switch held longer than 10 seconds

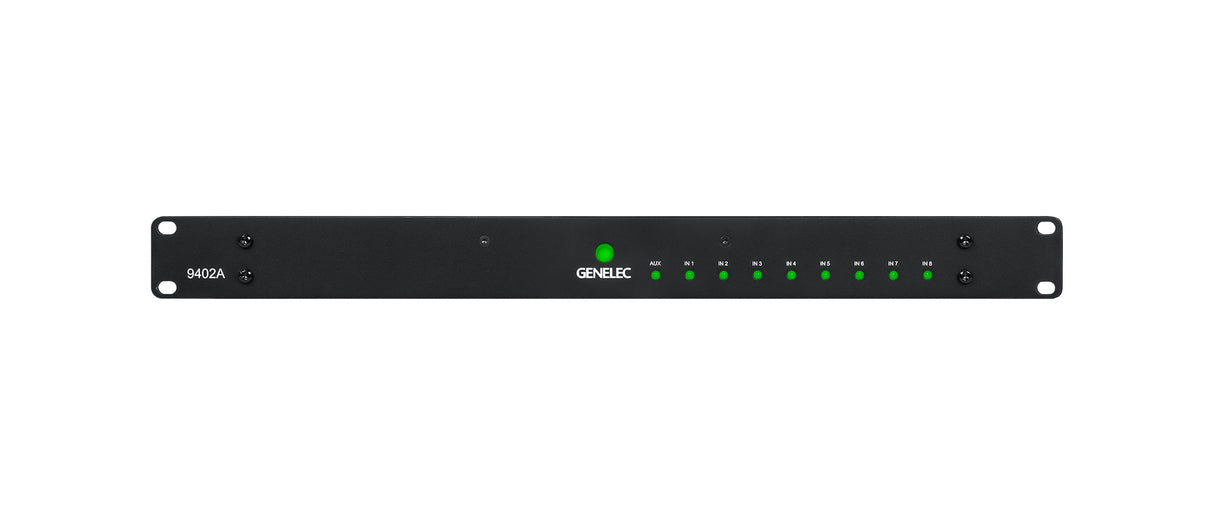

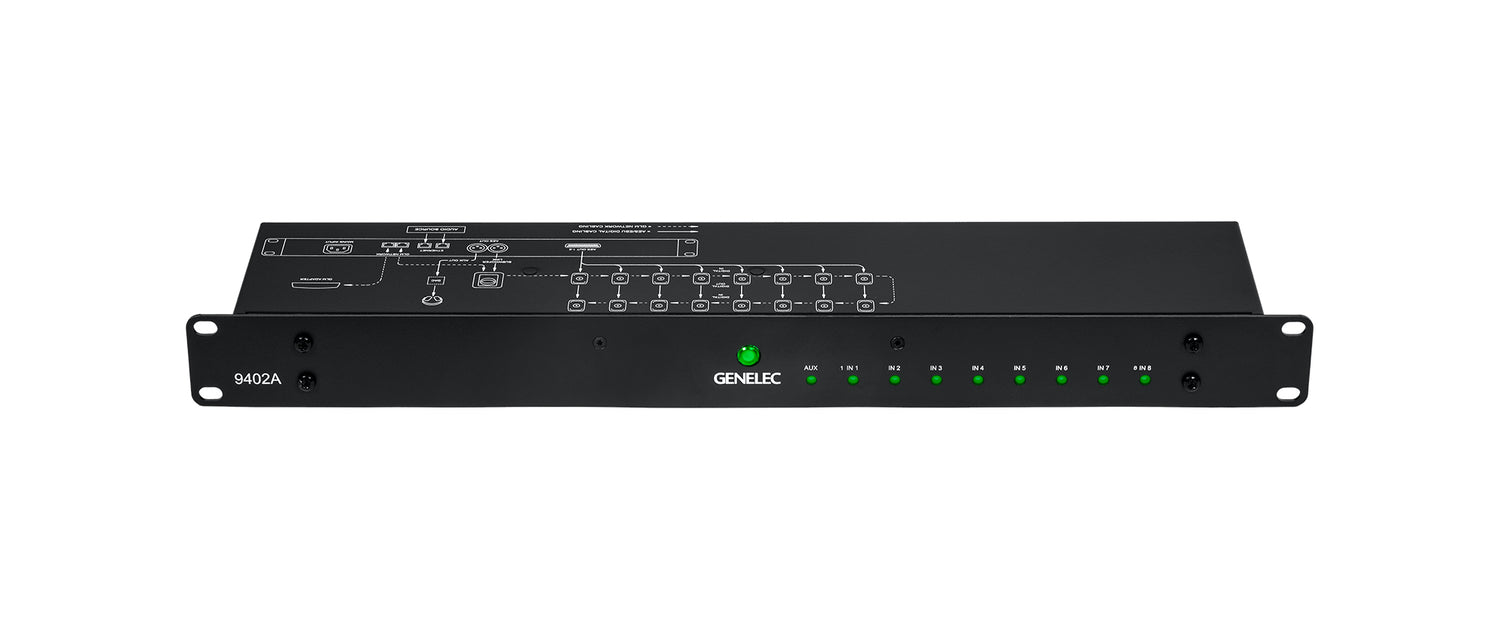

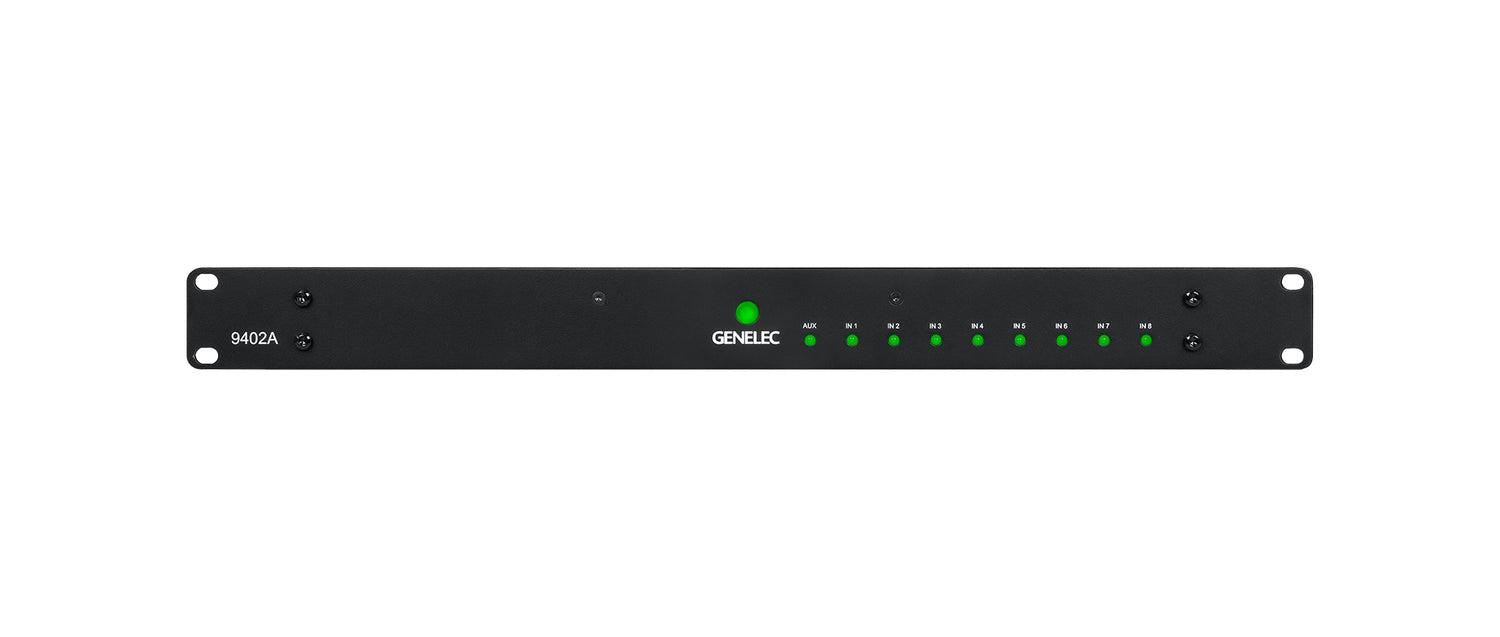

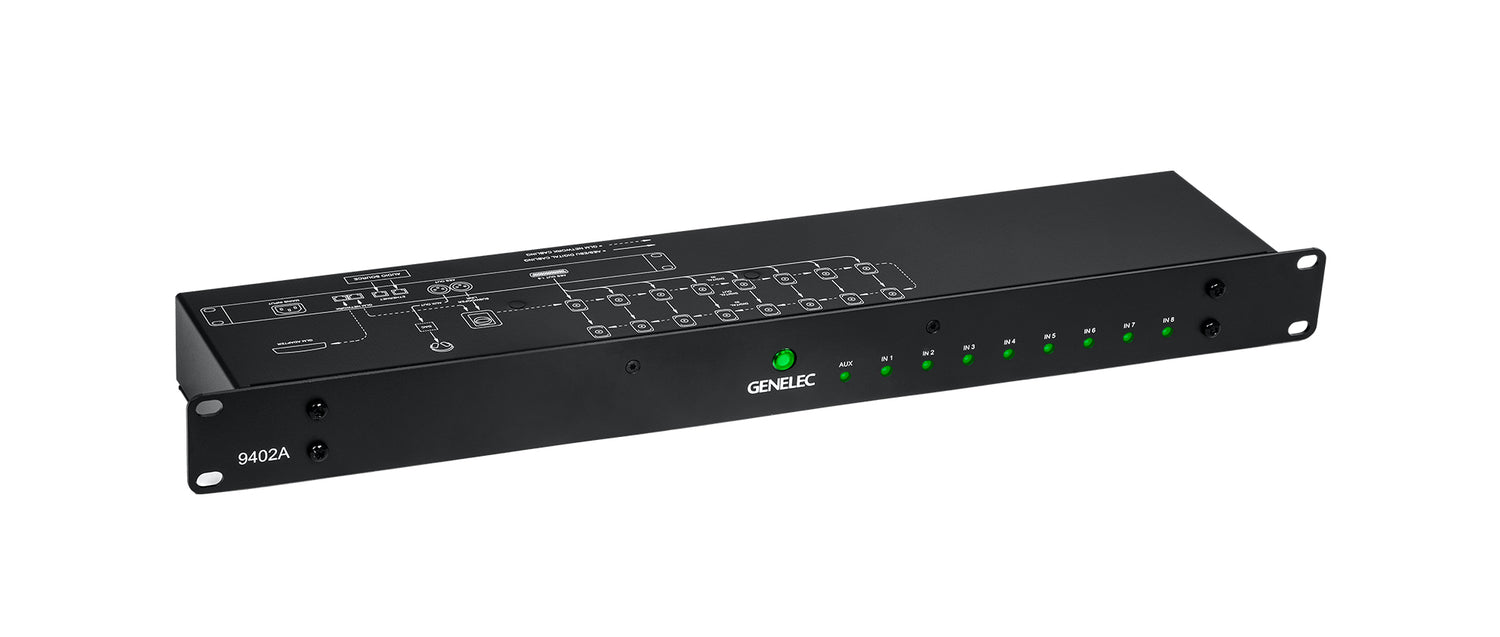

Front Panel Indicators
Power Indicator Normal Operation: Solid green
Power Indicator Configuration: Blinking green
Power Indicator Power-Save Mode: Green blink every 10 seconds
Power Indicator Off: No light
Output Indicators: 9
Output Indicator Active State: Solid green
Output Indicator Function: Active AES/EBU transmitter status

Power Specifications
Mains Input Voltage: 100 to 240 VAC
Mains Frequency: 50 to 60 Hz
Mains Tolerance: ±10%
Operating Power Consumption: 12 W
Idle Power Consumption: 9 W
ISS Power Consumption: 4.5 W
Power-Off Consumption: Less than 1 W
Energy-Saving System: Intelligent Signal Sensing
ISS Activation Delay: GLM configurable
ISS Wake Trigger: Audio-over-IP stream detection

Physical Specifications
Mounting: Standard 19-inch rack
Rack Height: 1U
Height: 43 mm
Width: 483 mm
Depth: 105 mm
Weight: 2 kg
Ventilation Clearance: None required

Environmental Specifications
Installation Environment: Indoor use only
Operating Temperature: 15 to 35 °C
Operating Temperature Imperial: 59 to 95 °F
Operating Humidity: 10% to 80% non-condensing
Protective Earth Requirement: Required
Ingress Exposure: Water and moisture prohibited

Compliance
EMC Compliance: FCC Part 15 Class B, CE
Safety Design: International safety standards
Service Access: Certified service personnel only
User-Serviceable Parts: None

Included Accessories
Mains Cable: Included
GLM Network Cable: 5 m
Operating Manual: Included
Quick Setup Guide: Included
