AP42C2BPA

Dual Wireless Microphone System
Combines a handheld microphone and bodypack transmitter for flexible live performance setups.

Includes OM2 Handheld Vocal Microphone
Delivers full-bodied vocal sound with clear mids and strong stage performance.

Bodypack Transmitter Flexibility
Supports wireless use with compatible lavalier, headset, or instrument microphones.

Excellent Feedback Rejection
Helps reduce unwanted stage feedback for cleaner and more controlled sound.

Strong Vocal Isolation
Focuses on the main sound source while minimizing surrounding stage noise.

One-Touch Auto Channel Scan
Quickly finds clear wireless frequencies for fast and simple setup.

Infrared Transmitter Sync
Automatically pairs transmitters with the receiver for hassle-free operation.

Durable Metal Construction
Built with rugged metal housing for dependable professional use.

106 Pre-Coordinated Frequencies
Supports reliable wireless operation and efficient multi-system setup.

Professional Dual Receiver Design
Uses a single rackmount receiver with shared antennas and power supply for a cleaner setup.

General Specifications
Device Type: Dual Channel Wireless Microphone System

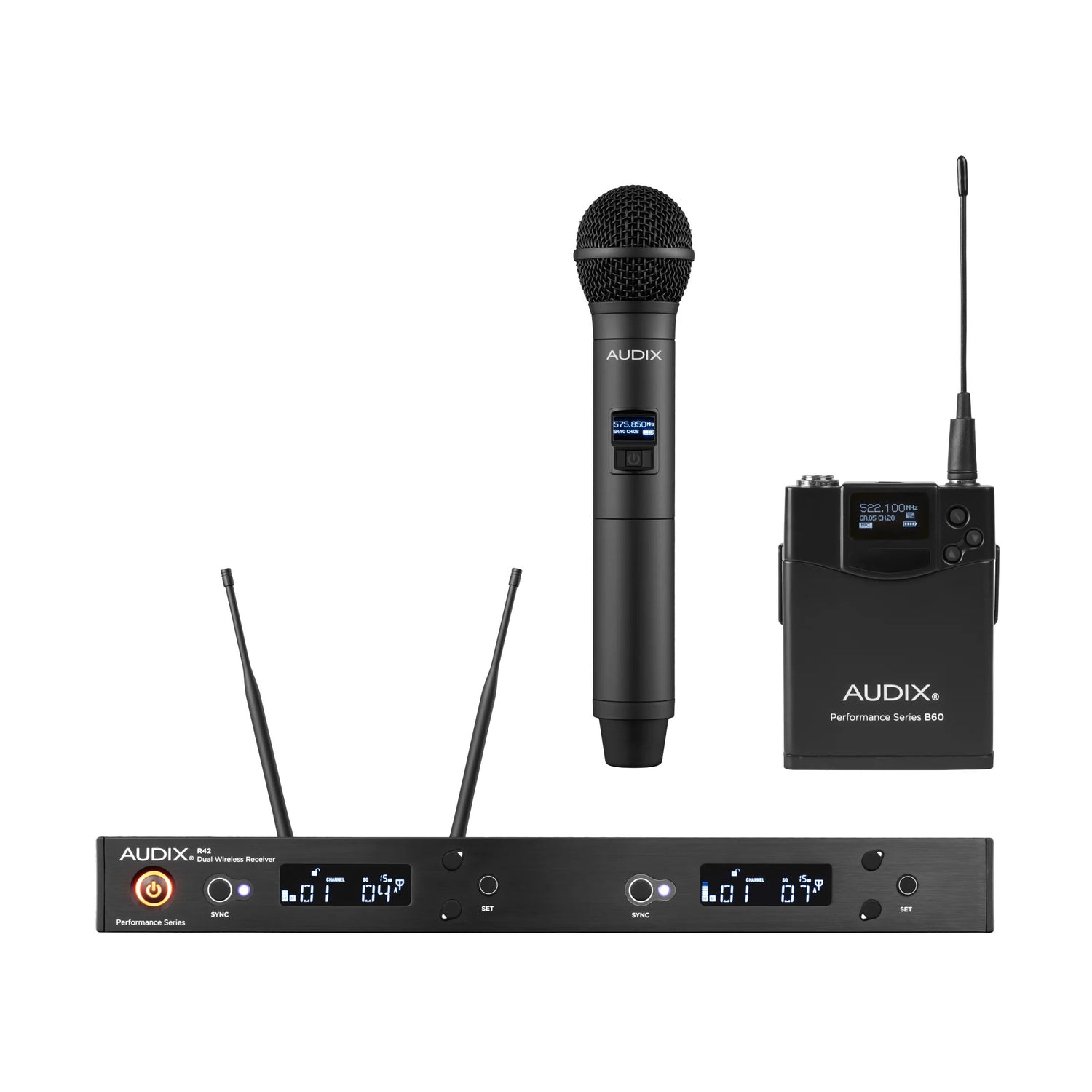

System Components: R42 Dual Receiver, H60 Handheld Transmitter with OM2 Capsule, B60 Bodypack Transmitter
Frequency Band: A Band 522 – 554 MHz
Operating Range: 300 ft / 91 m
Simultaneous Systems: Up to 8 systems with R42 receiver
Setup Features: One-touch auto clear channel scan and transmitter sync
Housing Construction: Durable metal housing

Receiver Specifications

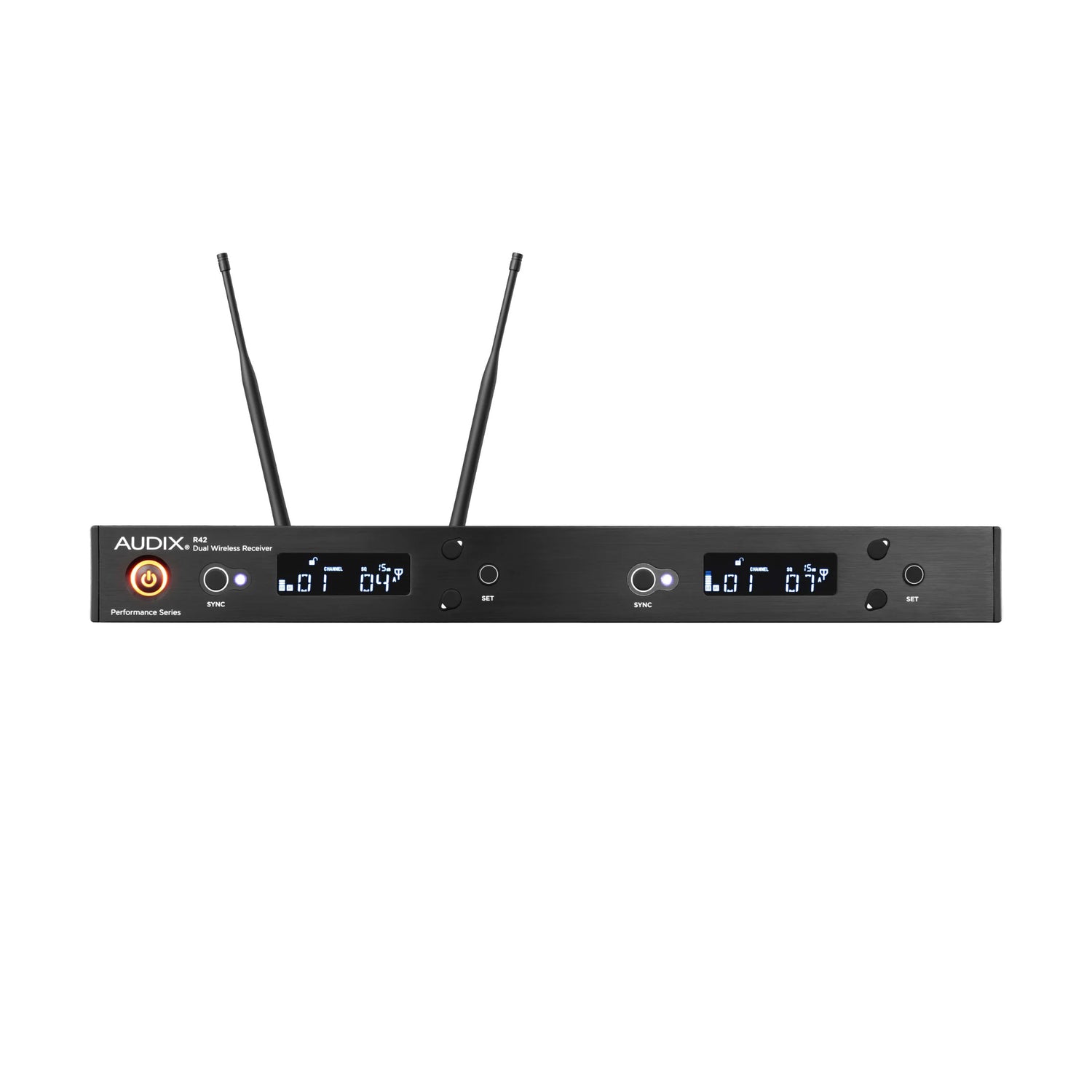

Receiver Model: R42
Receiver Type: Dual diversity receiver
Spectrum Bandwidth: 32 MHz
Switchable Frequencies: 106 pre-coordinated frequencies
Frequency Response: 45 Hz – 18 kHz
Compander System: 2:1
Pilot Tone: 32 kHz
Signal to Noise Ratio: 105 dB at 30 kHz deviation (A-weighted)
Total Harmonic Distortion: ≤0.7%
Sensitivity: 5 dBμV
Audio Outputs: Balanced XLR, 1/4 in output
Display Type: High contrast LCD display
Indicators: RF and AF indicators
Controls: Output level, squelch, pilot, lockout soft key controls
Rackmount Design: Metal rack-mountable chassis

Handheld Transmitter Specifications

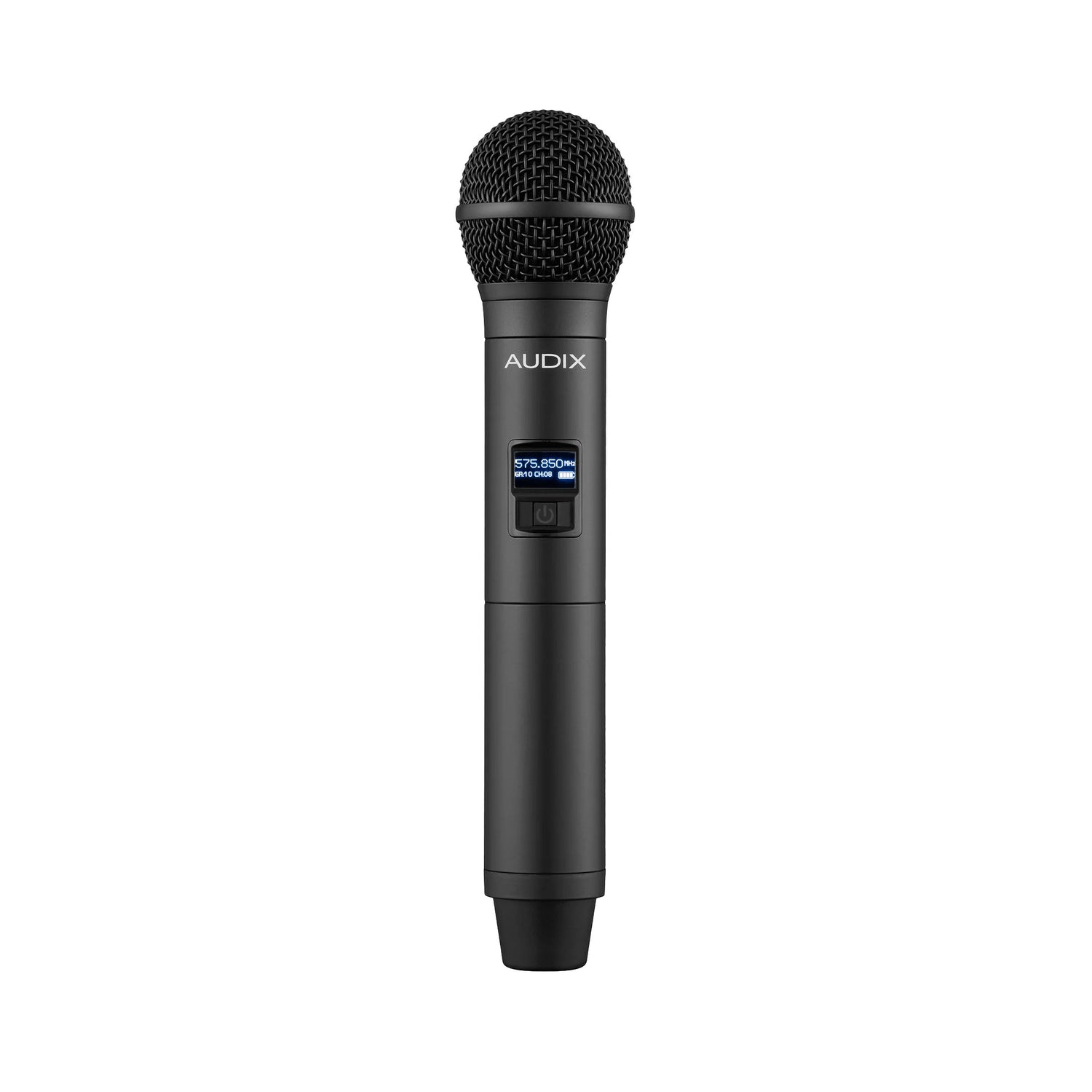

Transmitter Model: H60
Transmitter Type: Handheld wireless transmitter
Spectrum Bandwidth: 64 MHz
RF Power Output: 10 mW / 30 mW selectable
Gain Controls: 0 dB, -6 dB, -12 dB
Battery Type: 2 AA 1.5 V batteries
Battery Life: Up to 14 hours
Current Consumption: 110 mA typical
Display Type: High contrast LCD display with group, channel, and battery indicators
Controls: Soft mute switch
Housing Material: Metal housing with modular antenna design

Bodypack Transmitter Specifications

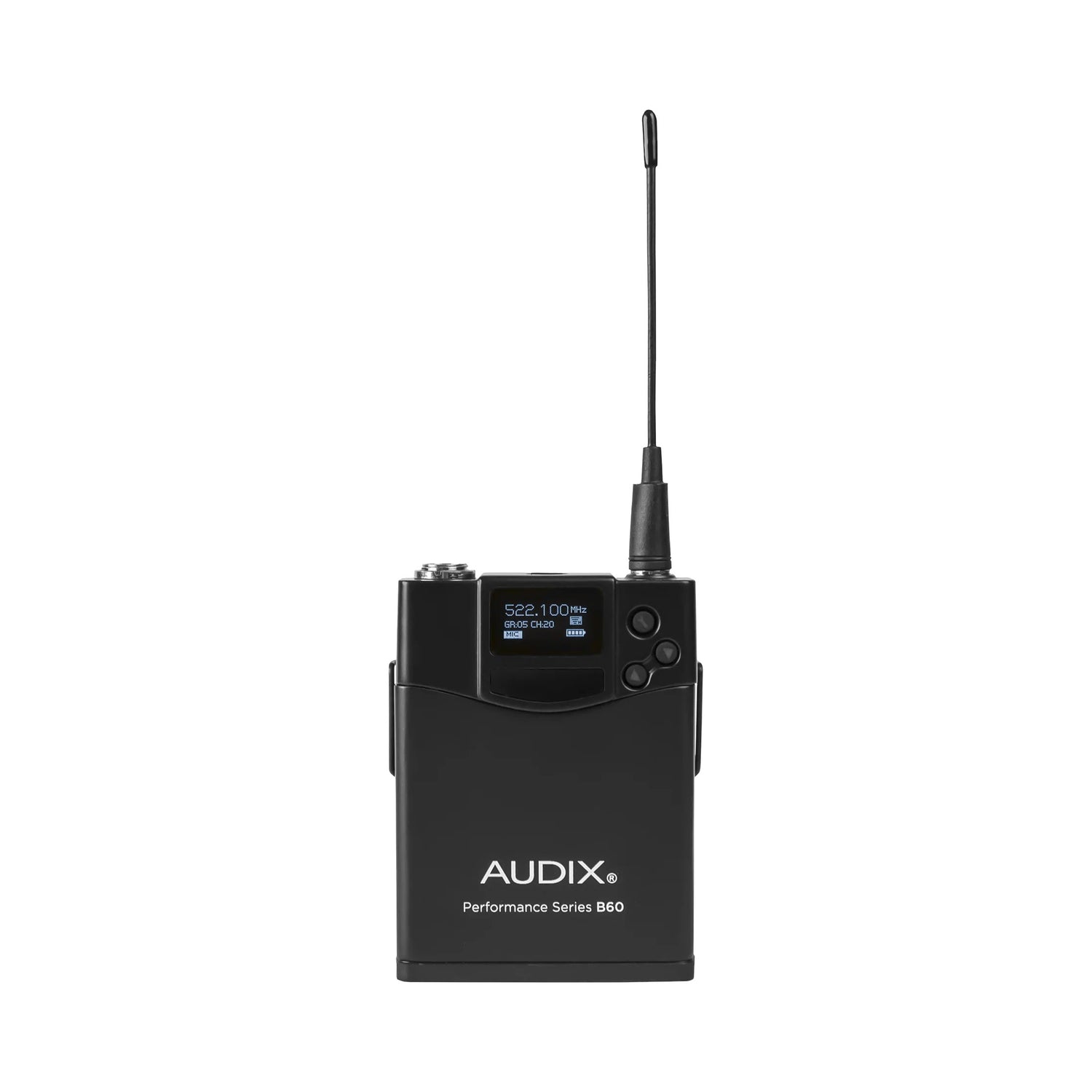

Transmitter Model: B60
Transmitter Type: Bodypack transmitter
Spectrum Bandwidth: 64 MHz
RF Power Output: 10 mW / 30 mW selectable
Gain Controls: 0 dB, -6 dB, -12 dB, -24 dB
Input Connector: 3-pin mini-XLR
Input Impedance: Mic 10 kohm, Line 1 Mohm
Battery Type: 2 AA 1.5 V batteries
Battery Life: Up to 14 hours
Current Consumption: 110 mA typical
Display Type: High contrast LCD display with group, channel, and battery indicators
Controls: Soft mute switch
Housing Material: Metal housing with modular antenna design

Microphone Specifications
Microphone Model: OM2
Microphone Type: Dynamic vocal microphone
Sound Profile: Full-bodied sound with tailored mid-range
Bass Response: Slight bass proximity
Stage Performance: Excellent isolation and feedback rejection
Maximum SPL Handling: High SPL handling without distortion
Applications: Small to mid-size PA systems, live vocals

Physical Specifications
Receiver Dimensions: 406 mm x 209 mm x 44 mm
Receiver Weight: 2.1 kg / 4.75 lb
Handheld Transmitter Dimensions: 53 mm diameter x 265 mm length
Handheld Transmitter Weight: 312 g / 11 oz
Bodypack Dimensions: 67 mm x 90 mm x 17 mm
Bodypack Weight: 85 g / 3 oz

Power Specifications
Receiver Power Supply: 100 – 240 V AC, 50/60 Hz, 12 V DC, 1 A

Included Accessories
Receiver: R42 dual diversity receiver
Handheld Transmitter: H60
Bodypack Transmitter: B60
Microphone Capsule: OM2 dynamic vocal microphone
Antennas: Included
Power Supply: Included
