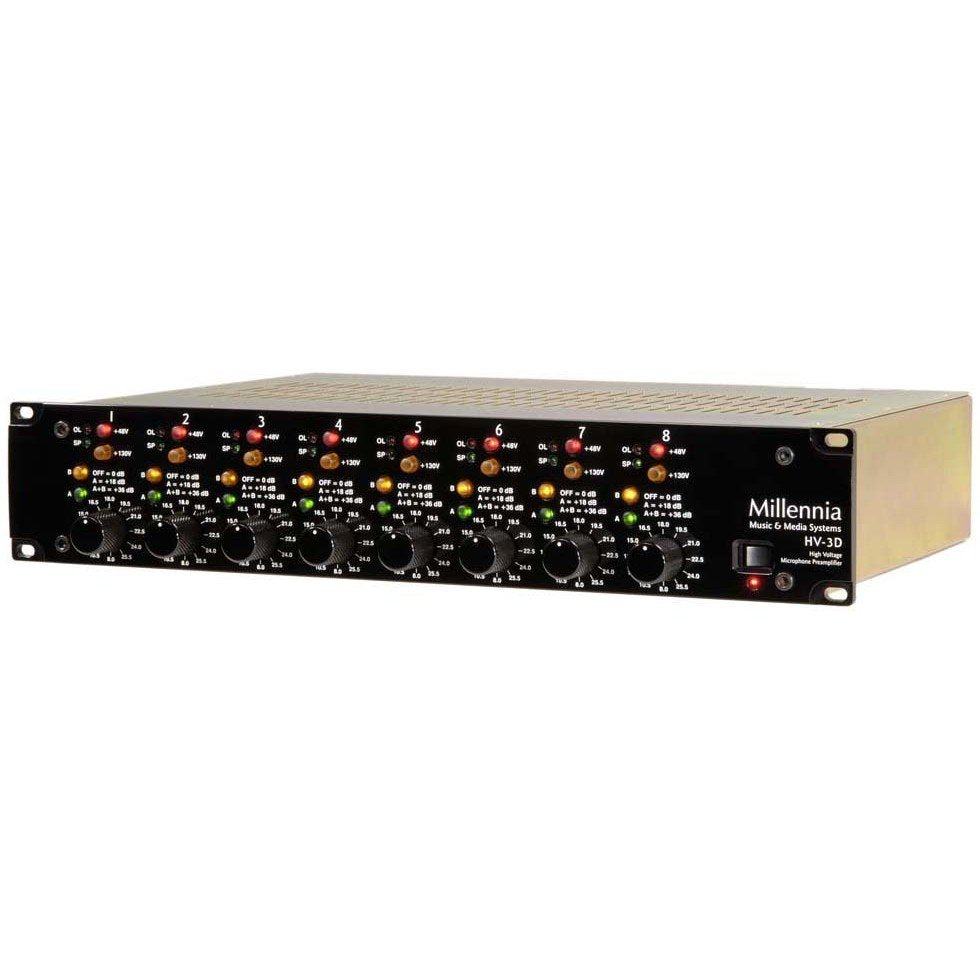

HV-3D-8

ID: 415

Eight channel version of HV-3C mic preamp. With unmatched performance, it is Millenia's flagship preamp topology.


$6,455.00 CAD
Shipping calculated at checkout.

Want an alert when this item is on sale?

Delivery & Shipping

Free shipping is available on eligible orders over $200 CAD. Remote regions and oversized or overweight items may be subject to additional shipping charges.

For full details, please review our View details here.

Financing

Financing is available on new, regularly priced products only. Sale, demo, open-box, clearance, and used items are excluded. Subject to financing approval.

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.


Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.


Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Millennia HV-3D-8 is an eight-channel microphone preamplifier designed for uncolored, transparent sound. Its transformerless design with a matched high-speed discrete transistor octet gives +23 dBu of input headroom, so no attenuator pads are needed, and the entirely balanced audio path is designed for extremely low distortion.

Standard 36-step gain controls (1.5 dB per step) are stereo matched to 0.08 dB, and a laser-trimmed FET-based output stage drives 300 m (1000 ft) cable runs with ease. The unit has Grayhill mil-spec gold switching, an ultra-clean universal power supply and a welded 16-gauge steel rack chassis, and it is hand-crafted in Northern California. Options include a ribbon-optimized DC-coupled input, extra gain, a DPA 130 V input and a Dante or MADI digital output expander.

Features

Unsurpassed ambience retrieval

Transformerless design with matched hi-speed discrete transistor octet has 23 dB input headroom: no attenuator "pads" needed

Uncolored timbral accuracy at all dynamic levels

Entirely balanced audio path with precision components maintains signal integrity: THD under 5 ppm (.0005%)

Effortless, vividly realistic, musical performance

Laser-trimmed FET-based output stage has 32 dB headroom: drives 1000 foot (300 m) cable runs with ease

Standard 36-step gain controls (1.5 dB per step) are stereo matched to .08 dB

Ultra-clean toroid power supply

Gold audio connectors and switches

Mogami Neglex OFC audio wiring

Silver Teflon power wiring

Welded 16 gauge steel rack chassis

Specifications

Minimum Gain

8.5 dB

Maximum Gain (1.5 dB per step, 36 steps)

65 dB (up to 75 dB on request)

Frequency Response (+0 / -3 dB)

sub 3 Hz to beyond 300 kHz

Noise (60 dB Gain, 10 Hz - 30 kHz, Inputs common)

-133 dB EIN

Total Harmonic Distortion + Noise (35 dB Gain, 10 Hz - 20 kHz bandwidth, +27 dBu Out)

< .001%, Typ. < .0005% (< 5 ppm)

Intermodulation Distortion (50 Hz & 7 kHz) 35 dB Gain, +27 dBu Out

< .0009%

Phase Response (35 dB Gain, 50 Hz - 20 kHz bandwidth, +27 dBu Out)

< 2 degrees deviation

Common Mode Rejection Ratio (35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M.)

> 65 dB, Typ > 85 dB

Slew Rate (35 dB Gain, +27 dBu Out)

> 25 Volts per microsecond

Maximum Input Level (20 Hz - 40 kHz)

+23 dBu (no attenuator pads required)

Maximum Output Level (20 Hz - 40 kHz)

+32 dBu

Phantom Input Impedance (1 kHz)

6,750 ohms

Output Impedance

24.3 Ohms (x2)

DPA (B&K) Mic Powering

+130 V dc max, (non-phantom)

Phantom Powering

+48 V dc, +/- 2 V dc

Power Consumption

45 watts maximum

Power Requirements

Selectable: 100-120, 200-240 V ac, 50/60 Hz

Dimensions/Shipping Weight

19" W x 3.5" H x 12.5" D, 25 lbs.
