SCHOEPS

MK 8g Matched Pair

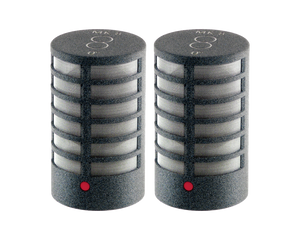

Name: MK 8g Matched Pair
Brand: SCHOEPS
SKU: 62060
Price: 3635.00 CAD
Availability: InStock

ID: 62060

Condenser microphone capsule matched pair, figure-8 pattern, single-diaphragm pressure-gradient design, side-address pickup, matte gray finish

$3,635.00 CAD

Shipping calculated at checkout.

Want an alert when this item is on sale?

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

This matched pair of condenser microphone capsules uses a single-diaphragm, pure pressure-gradient design to produce a consistent figure-8 polar pattern. Its clear, neutral sound and phase-matched performance make it well suited to M/S and Blumlein stereo recording, as well as carefully positioned spot-microphone applications.

The side-address pickup axis runs perpendicular to the capsule body, with red and black dots identifying the front and rear axes. For M/S recording, the capsule can be positioned directly above or below the mid microphone and as close as possible. Its equally sensitive rear lobe reverses polarity, so thoughtful placement helps prevent unwanted reflections, cancellation, and comb-filter effects. A hand-signed factory matching certificate is included.

Features

Consistent Figure-8 Pattern
The bidirectional polar response remains highly consistent across the frequency range.

Single-Diaphragm Construction
A true dipole design uses one diaphragm for pure pressure-gradient operation.

Phase-Matched Pair
Both capsules are matched for dependable performance in precision stereo recording arrangements.

Side-Address Pickup
Sound is captured perpendicular to the microphone body for accurate stereo-array positioning.

M/S and Blumlein Recording
The figure-8 pattern is ideally suited to M/S and Blumlein stereo techniques.

Clear, Neutral Sound
The capsule provides transparent reproduction for stereo and spot-recording applications.

Defined Axis Markings
Color-coded markings identify the front and rear pickup axes for precise orientation.

Factory Matching Certificate
A hand-signed certificate confirms close matching of frequency response and sensitivity.

Specifications

General Specifications
Product Type: Matched pair of condenser microphone capsules
Transducer Principle: Pure pressure-gradient
Diaphragm Configuration: Single diaphragm
Polar Pattern: Figure-8
Address Type: Side-address
Proximity Effect: Present
Finish: Matte gray
Capsule Quantity: 2

Performance
Frequency Range: 40 Hz to 16 kHz
Sensitivity: 10 mV/Pa
Equivalent Noise Level, A-Weighted: 18 dB-A
Equivalent Noise Level, CCIR: 26 dB
Signal-to-Noise Ratio: 76 dB-A
Maximum Sound Pressure Level: 134 dB SPL at 0.5% THD

Physical Specifications
Diameter: 0.79 in (20 mm)
Length: 1.35 in (34 mm)
Weight: 0.63 oz (18 g)

Orientation
Front Axis Marker: Red dot
Rear Axis Marker: Black dot
Axis Relationship: Perpendicular to capsule body

Included Items
Matched Microphone Capsules: 2
Factory Certificate: Hand-signed
