FERROFISH

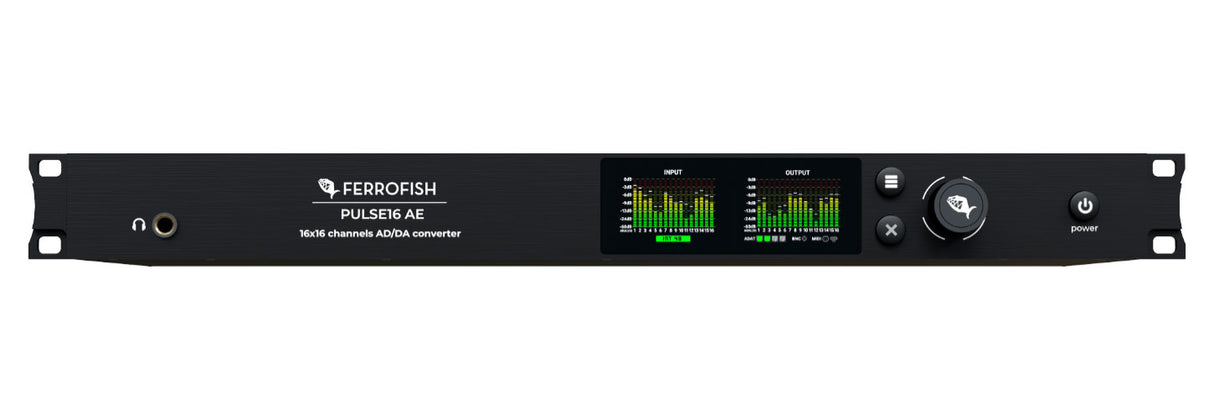

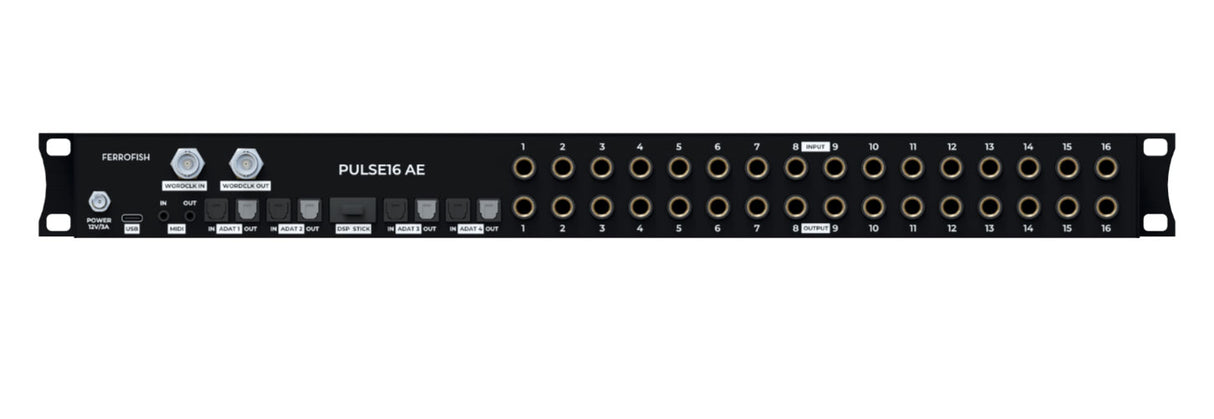

Pulse16 AE

Multi-Channel Converters

16×16 balanced TRS I/O, 32×32 ADAT, ESS 32-bit converters, USB-C and MIDI control, word clock sync, high-res metering, DSP expansion, 1U rackmount.

$1,700.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Ferrofish PULSE16 AE is a powerful and flexible 16 x 16 analog-to-digital and digital-to-analog converter, offering up to 32 channels of ADAT I/O in a sleek 19” 1U rackmount form factor. Designed for professional studios and live sound environments, it bridges analog and digital workflows with studio-grade conversion, intuitive metering, and extensive connectivity options.

Equipped with 16 balanced TRS inputs and outputs, the PULSE16 AE ensures pristine analog conversion using premium ESS converters, delivering up to 192kHz sample rates with exceptional dynamic range and ultra-low distortion. ADAT connectivity includes 4 input and 4 output ports, supporting SMUX for higher-resolution formats, and word clock I/O provides reliable synchronization with external systems.

For added flexibility, the PULSE16 AE features a dedicated headphone output with independent DAC and precise 1 dB step volume control, ideal for critical monitoring. Real-time signal levels are clearly displayed on its high-resolution multi-color LED meters, and all settings are easily accessed via the front panel or RemoteFish software over USB-C or MIDI.

Whether used as a standalone converter or a central routing hub, the PULSE16 AE delivers clean signal integrity, advanced control, and future-ready expansion via an optional DSP slot—making it a smart choice for modern hybrid setups.

Features

16×16 Analog I/O

Provides 16 balanced TRS inputs and 16 balanced TRS outputs for clean AD/DA conversion.

32×32 ADAT Connectivity

Includes 4 ADAT inputs and 4 ADAT outputs, supporting up to 192 kHz via SMUX.

Studio-Quality Conversion

Utilizes premium ESS converters with 32-bit/192 kHz resolution for pristine audio clarity.

Visual Signal Monitoring

High-resolution front-panel displays with multi-color LED meters show real-time levels and system status.

Advanced Headphone Output

Dedicated ESS DAC with 1 dB volume steps and four-stage amplification for precise monitoring.

Remote Control via USB-C and MIDI

Manage settings and routing through Ferrofish RemoteFish software or MIDI controller integration.

Flexible Routing and Clocking

Supports per-channel routing, internal or external sync, and word clock I/O for tight system integration.

Expandable DSP Architecture

Modular design allows optional DSP upgrades for future processing capabilities.

Compact and Rack-Ready

Fits in a 1U 19" rack space, making it ideal for both studio and live sound environments.

Specifications

General Specifications

Product Name: PULSE16 AE

Product Type: 16 x 16 AD/DA and 32 x 32 ADAT Converter

Form Factor: 19" / 1U Rackmount

Dimensions: 50 × 4.4 × 19 cm

Weight: 2 kg

Power Supply: 12V DC / 3A (locking screw barrel jack, center-positive)

Power Consumption: 12 VA nominal, <1 VA standby

Fuse: Internal polyfuse, self-resetting

Operating Temperature: +5 °C to +45 °C

Humidity: <75%, non-condensing

Analog I/O

Inputs: 16 x Balanced TRS (¼-inch / 6.3 mm)

Outputs: 16 x Balanced TRS (¼-inch / 6.3 mm)

Input Impedance: 6 kΩ

Output Impedance: 110 Ω

Digital I/O – ADAT

Inputs: 4 x ADAT ports (32 channels @ 48 kHz, 16 @ 96 kHz, 8 @ 192 kHz via SMUX)

Outputs: 4 x ADAT ports

Conversion Specifications

ADC: ESS ES9840Q

Resolution / Rate: 32-bit / 192 kHz

DNR: 116 dB

THD+N: –108 dB

DAC: ESS ES9017

Resolution / Rate: 32-bit / 192 kHz

DNR: 120 dB

THD+N: –110 dB

Clocking

Internal Word Clock: 125 MHz high-precision oscillator

Initial Accuracy: ±1.5 ppm

Temperature Drift: ±2.5 ppm

Aging: ±1 ppm

External Sync: Via Word Clock (BNC) or ADAT

PLL: Digitally controlled PLL with active jitter reduction

Monitoring & UI

Displays: High-resolution front-panel meters (input/output)

Meter Type: Multi-colored LED meters

Headphone Output: 1 x ¼-inch (6.3 mm)

DAC: Dedicated ESS ES9023

Volume Control: Digital, 1 dB resolution

Amplification: Four-stage adjustable

Impedance Range: 15–600 Ω

Routing & Control

Routing: Per-channel routing matrix

Control Interface:

– Front-panel knob and buttons

– USB-C (RemoteFish software for Mac/PC)

– TRS-MIDI Type A (MIDI CC and firmware updates)

– Remote control via MIDI controller

Expandability

DSP Slot: Available for optional DSP stick (future processing upgrades)

Key Features

Studio-grade AD/DA conversion with ESS technology

32 x 32 ADAT routing

16 analog inputs and 16 outputs

Word clock sync & jitter reduction

Remote control and firmware updates via USB-C or MIDI

Dedicated headphone monitoring path

Rack-mountable, compact 1U design

Future-proof DSP expansion slot
