Advanced Transmission Line Bass
Delivers deep, controlled bass with excellent clarity and reduced distortion.

Wide Listening Area
Maintains accurate sound across a broad listening position for easier placement and better stereo imaging.

Clear High-Frequency Detail
Reproduces fine detail with a smooth, natural character that supports precise listening.

Fast, Accurate Midrange
Keeps voices and instruments clear, balanced, and easy to evaluate.

Built-In Amplification
Provides dedicated power for each driver, removing the need for a separate amplifier.

Analogue Active Crossover
Separates the audio signal cleanly so each driver performs at its best.

Balanced Audio Input
Supports a reliable, low-noise connection for professional studio equipment.

Driver Protection
Helps protect the speaker during demanding use without interrupting normal performance.

Level Adjustment
Allows the speaker output to be matched easily with other equipment or monitors.

Wide Application Support
Suitable for recording, mixing, mastering, broadcast, post-production, home cinema, and high-quality music listening.

Flexible Placement
Designed to perform consistently in a range of rooms and listening environments.

Hand-Built Quality
Carefully assembled, matched, tested, and inspected for consistent performance.

General Specifications
Device Type: Active nearfield reference monitor
Enclosure Type: Advanced Transmission Line
System Configuration: 2-way active
Frequency Response: 45 Hz–22 kHz
Maximum Sound Pressure Level: 112 dB at 1 m
Effective Transmission Line Length: 1.5 m
Crossover Frequency: 2 kHz
Crossover Type: Pure analogue active
Crossover Slope: 24 dB/octave

Driver Specifications
Low-Frequency Driver: 170 mm doped natural-fibre cone
High-Frequency Driver: 27 mm soft-dome tweeter
High-Frequency Features: Perforated acoustic lens, diffraction fins
Acoustic Axis: Midpoint between LF and HF drivers

Amplifier Specifications
Amplifier Type: Class D
Total Amplifier Power: 165 W RMS
Low-Frequency Amplifier Power: 100 W RMS
High-Frequency Amplifier Power: 65 W RMS
Protection System: Dual-band limiter with independent driver protection sensors
Gain Adjustment Range: -10 dB to +10 dB

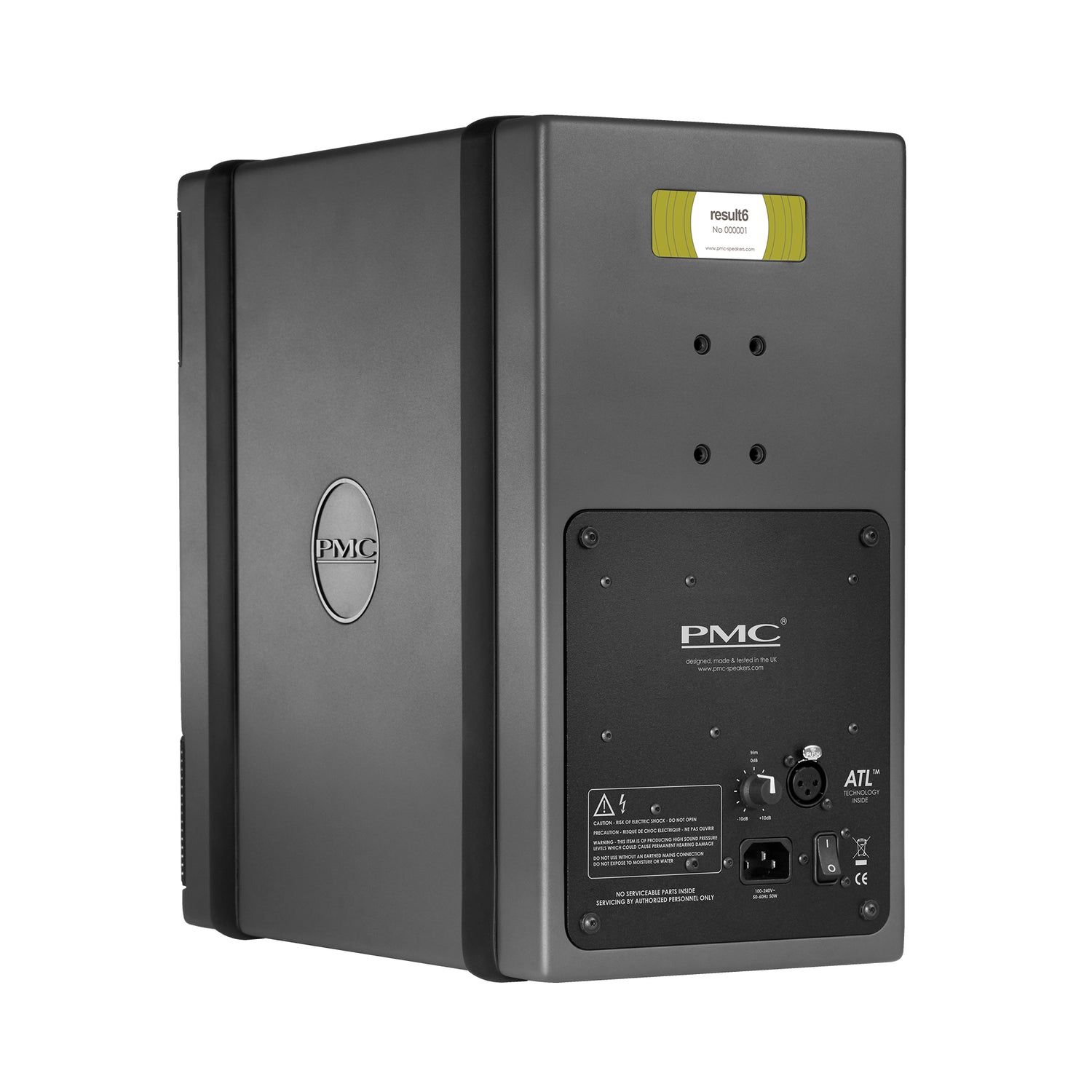

Audio Input
Input Type: Electronically balanced analogue
Connector: 3-pin male XLR
Pin 1: Screen/Ground
Pin 2: Signal Positive/Hot
Pin 3: Signal Negative/Cold
Input Impedance: Greater than 8 kΩ
Signal Filtering: RFI and EMI filtering

Power Specifications
Mains Connector: IEC C14
Input Voltage: 90–260 V AC
Voltage Selector: Not required
Power Switch: Rear-panel
Grounding Requirement: Protective earth required

Indicator Specifications
Power Indicator: White LED
Fault Indicator: Red LED
Limiter Indicator: Red LED

Physical Specifications
Height: 380 mm
Width: 199 mm
Depth: 360 mm
Weight: 8 kg

Installation Specifications
Recommended Listening Configuration: Equilateral triangle
Recommended Toe-In: Acoustic axes crossing approximately 0.5 m behind listening position
Recommended Boundary Clearance: More than 0.5 m from side and rear walls
Recommended Height: Acoustic axis level with listener’s ears
Mounting Support: Stand or dedicated tilting wall bracket
Operating Orientation: Vertical

Operating Specifications
Initial Run-In Period: Approximately 50 hours
Cabinet Cleaning: Dry, lint-free cloth
Cooling Requirement: Unrestricted airflow behind cabinet
Recommended Applications: Nearfield monitoring, music recording, speech recording, mixing, broadcast, post-production, editing, mastering, home theatre, high-end audio, A&R evaluation

Included Items
Monitors (2x)
AC Power
User Guide
