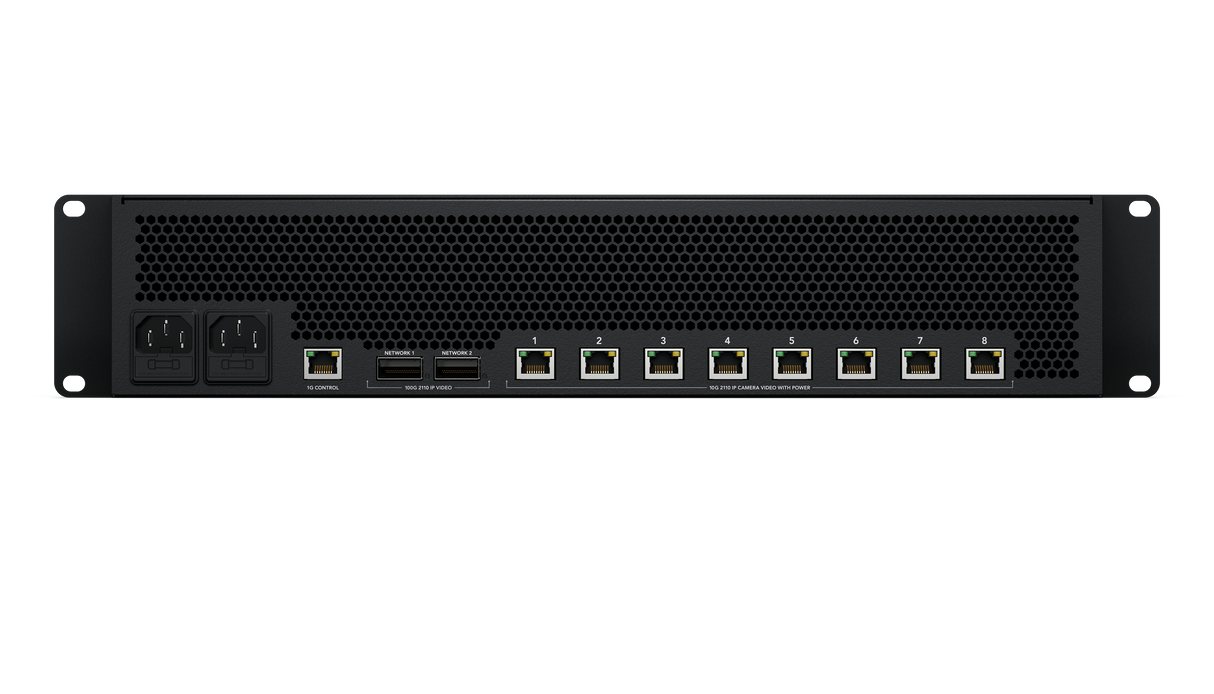

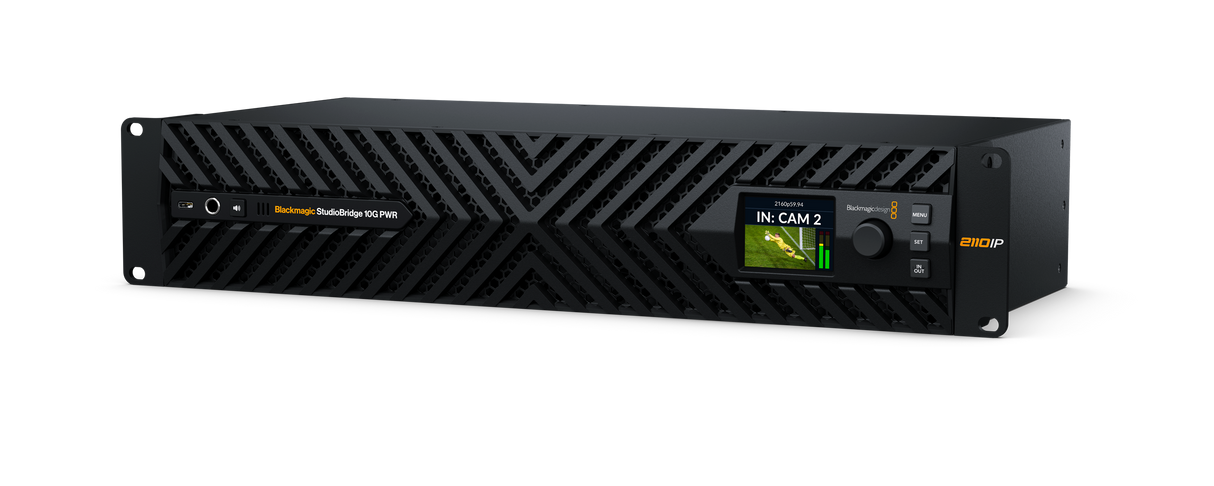

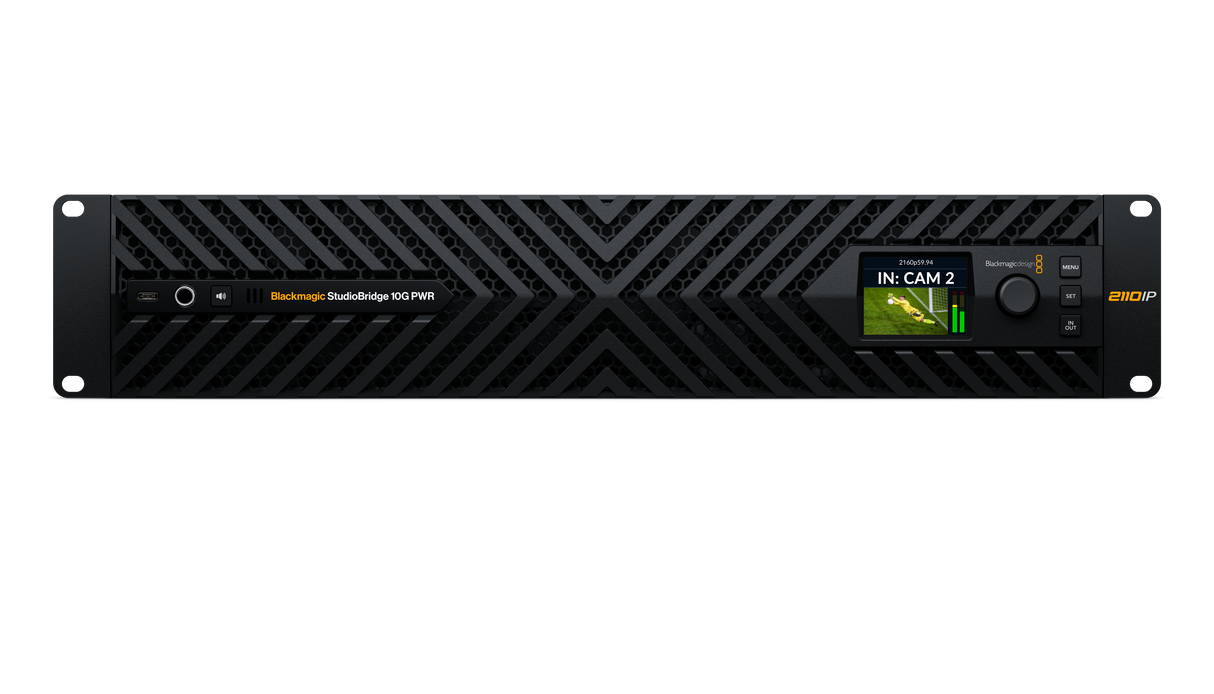

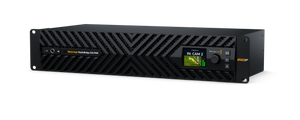

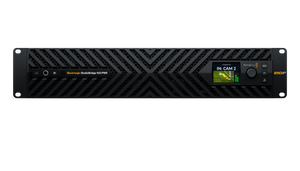

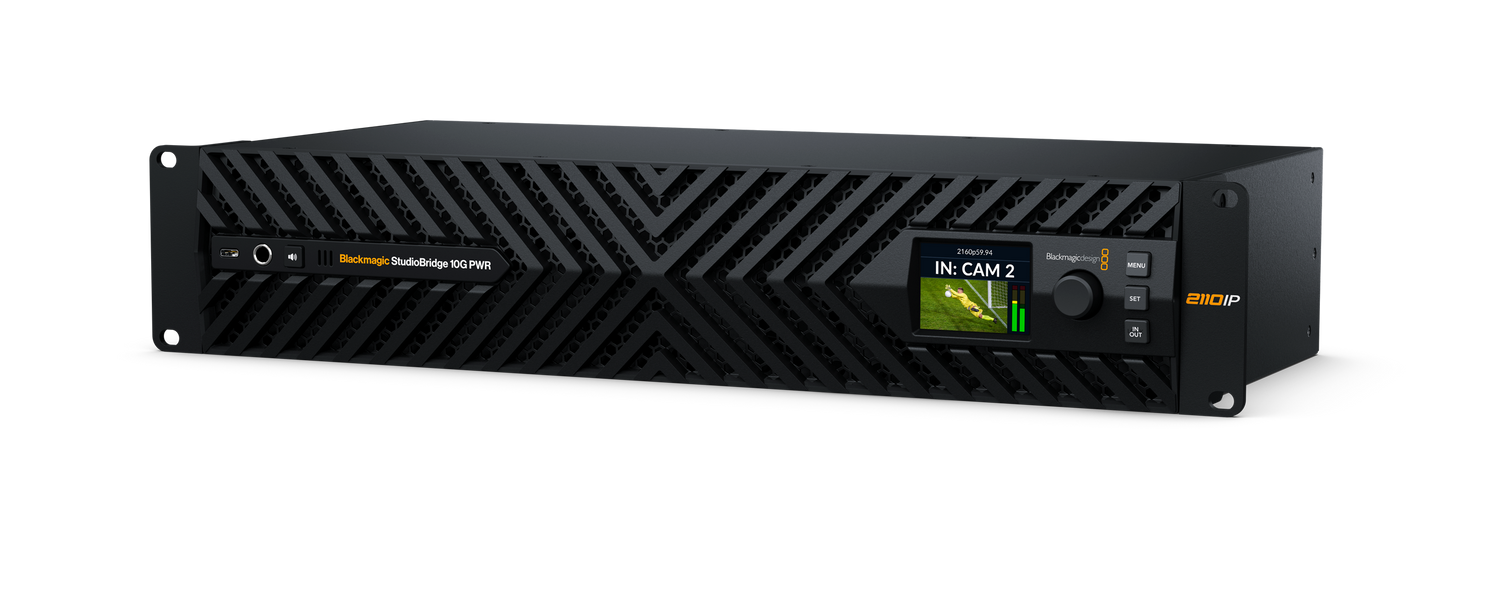

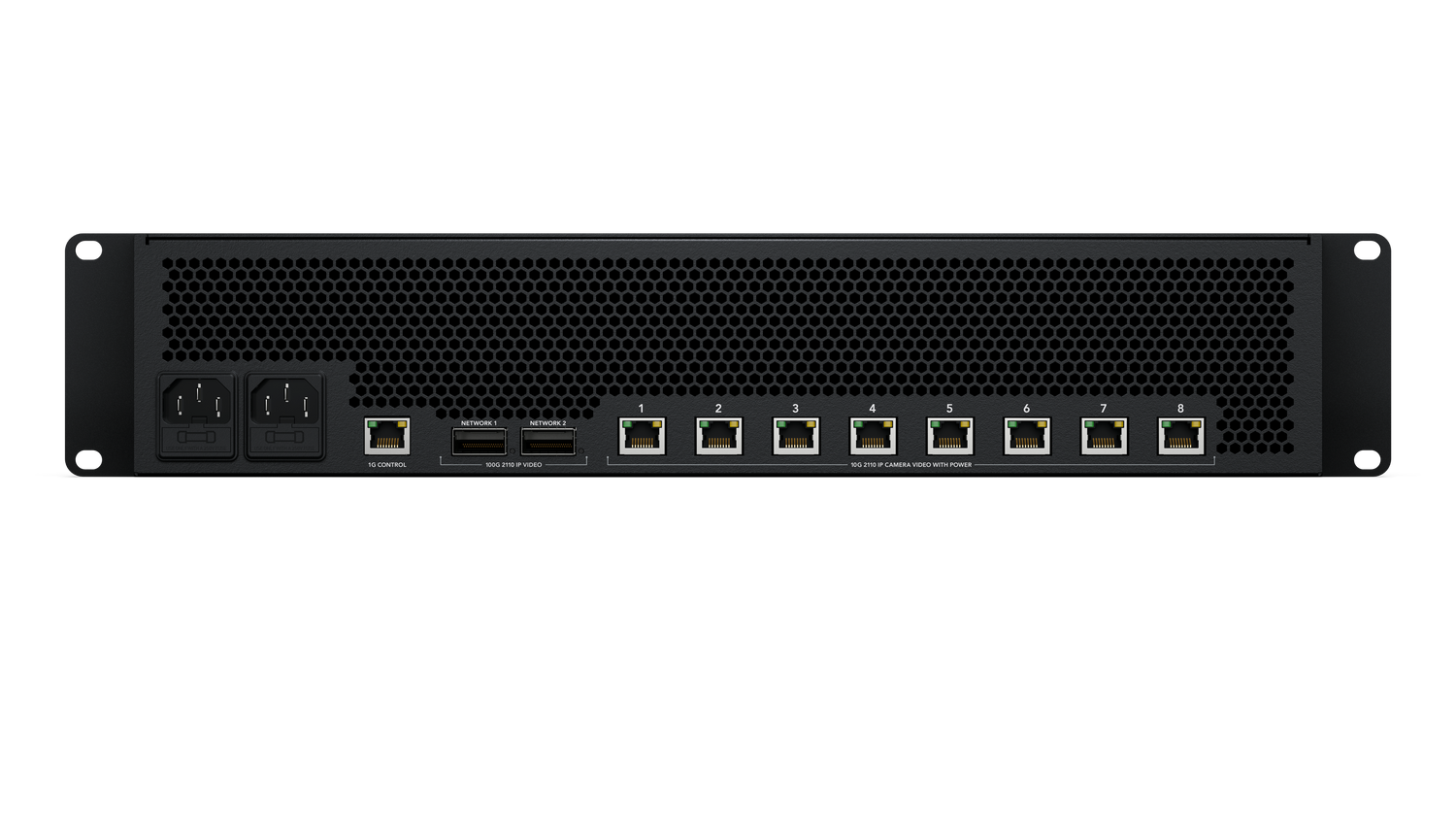

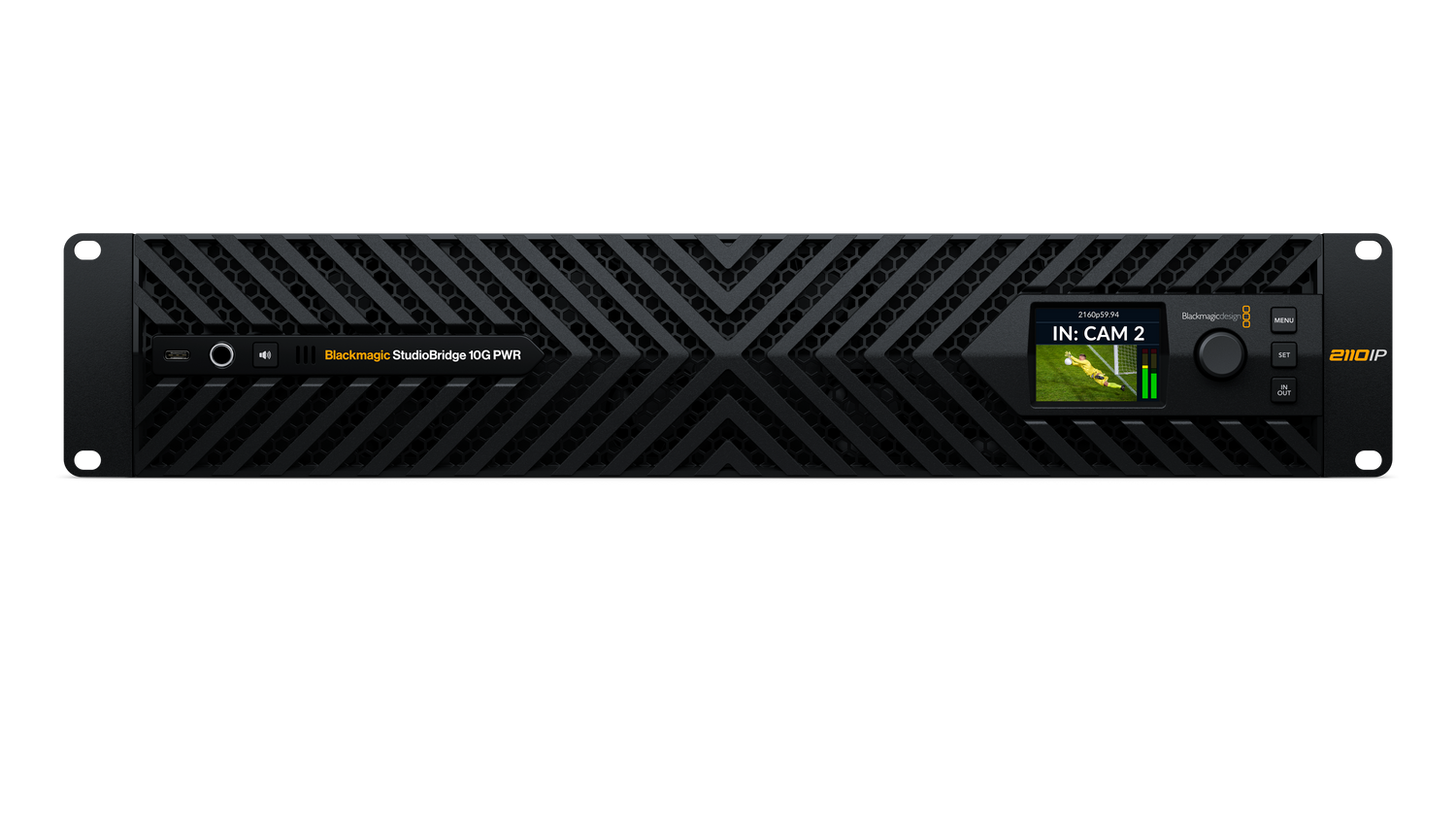

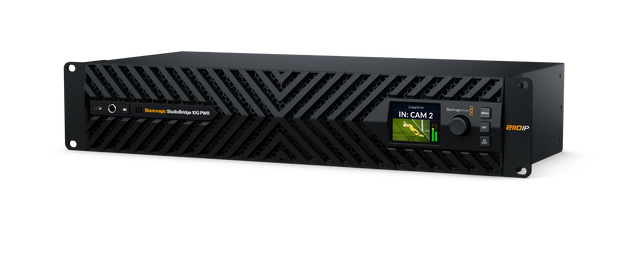

StudioBridge 10G IP video bridge converter, 1U

StudioBridge 10G PWR
Professional IP video bridge designed to connect multiple 10G SMPTE ST 2110 devices into high-capacity redundant 100G broadcast infrastructures.

10G to 100G IP Video Bridging
Converts and combines multiple 10G Ethernet SMPTE ST 2110 connections into redundant 100G Ethernet links for large-scale broadcast systems.

8-Channel IP Video Aggregation
Supports up to 8 independent HD or Ultra HD SMPTE ST 2110 video channels simultaneously.

Eight 10G Ethernet Ports
Includes 8 dedicated 10G Ethernet connections for connecting cameras, converters, and other SMPTE ST 2110 devices.

90W PoE++ on Every Port
Provides up to 90W of PoE++ power per 10G Ethernet connection, allowing connected devices to be powered directly through the network cable.

Dual 100G Ethernet Connections
Features two high-bandwidth 100G QSFP28 interfaces for transport into core broadcast IP infrastructures.

SMPTE 2022-7 Redundancy
Supports seamless network redundancy for uninterrupted video transport across dual IP networks.

Native SMPTE ST 2110 Support
Fully compatible with SMPTE ST 2110 video, audio, and ancillary data workflows used in professional IP broadcast facilities.

HD and Ultra HD Compatibility
Supports HD and Ultra HD video formats up to 2160p60.

10-Bit Broadcast Quality Processing
Maintains professional 10-bit 4:2:2 video quality for live production and broadcast applications.

Embedded Audio Transport
Supports up to 16 channels of embedded audio on every SMPTE ST 2110 video stream.

PTP Synchronization
Supports IEEE 1588 Precision Time Protocol and SMPTE ST 2059 standards for accurate timing across IP networks.

NMOS Integration
Supports NMOS discovery, registration, and connection management for simplified routing and control.

Blackmagic IP10 Codec Support
Supports the Blackmagic IP10 codec for efficient Ultra HD transport over SMPTE ST 2110 networks.

Dedicated Control Network Port
Includes a separate 1G Ethernet connection for NMOS control, configuration, and software updates.

Front Panel LCD Monitoring
Features a built-in color LCD for monitoring video, audio, timecode, and network status directly from the front panel.

Integrated Audio Monitoring
Includes a built-in speaker and headphone output for convenient confidence monitoring.

USB-C Configuration Port
Provides USB-C connectivity for setup, management, and firmware updates.

Dual Redundant Power Supplies
Features dual internal AC power supplies for maximum operational reliability in mission-critical environments.

2RU Rackmount Design
Compact rackmount form factor designed for broadcast facilities, equipment rooms, and live production environments.

Ideal for SMPTE ST 2110 Infrastructure Expansion
Perfect for connecting multiple 10G cameras and converters into high-capacity 100G broadcast networks while simplifying power and network deployment.

General Specifications
Device Type: SMPTE ST 2110 IP video bridge converter
Application: Bridge 10G SMPTE ST 2110 devices into redundant 100G SMPTE ST 2110 networks
Form Factor: 2RU rackmount
Channel Capacity: 8 channels
Compatibility: HD and Ultra HD SMPTE ST 2110 workflows

IP Connectivity
100G Network Ports: 2 x 100G QSFP28
10G Network Ports: 8 x 10G RJ45
Control Network Port: 1 x 1G RJ45
Redundancy Standard: SMPTE ST 2022-7
10G to 100G Bridging: Supported
Senders and Receivers per 100G Pair: 8 x Ultra HD or HD

PoE Power
PoE Standard: PoE++
PoE Ports: 8 x 10G RJ45
Power per Port: 90 W
Device Powering: Cameras, converters and compatible PoE devices

Audio Specifications
SMPTE ST 2110 Audio Inputs: 16 channels embedded audio per stream
SMPTE ST 2110 Audio Outputs: 16 channels embedded audio per stream
Headphone Output: 1 x 6.35 mm front panel jack
Audio Sampling Rate: 48 kHz
Audio Bit Depth: 24-bit
Built-In Speaker: Supported

Video Standards
HD Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF Standards: 1080PsF25, 1080PsF29.97, 1080PsF30
Ultra HD Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

Video Processing
Color Precision: 10-bit 4:2:2 YUV
Color Space: Rec.709, Rec.2020
Auto Detection: HD and Ultra HD

SMPTE Compliance
SMPTE ST 2110-20
SMPTE ST 2110-21
SMPTE ST 2110-30
SMPTE ST 2110-40
SMPTE ST 2022-7

IP Standards
IGMP v3
SMPTE ST 2110-21 Sender: Narrow
SMPTE ST 2110-21 Receiver: Narrow
SMPTE ST 2110-21 Receiver: Wide Synchronous
SMPTE ST 2110-21 Receiver: Asynchronous
SMPTE ST 2110-30 Audio Conformance: Level C

Ancillary Data Support
Timecode: RP188 / SMPTE 12M-2
Closed Captioning: Supported
HDR Static Metadata: Supported
Full SMPTE Ancillary Data Stream Access: Supported

PTP & NMOS
Precision Time Protocol: IEEE 1588-2008 (PTP v2)
Synchronization: ST 2059-1
Synchronization: ST 2059-2
NMOS IS-04 Discovery and Registration: v1.3.2
NMOS IS-05 Connection Management: v1.1.2
NMOS BCP-002-01: Natural Grouping
NMOS BCP-004-01: Receiver Capabilities
Peer-to-Peer Discovery: mDNS/DNS-SD

Codec Support
Blackmagic IP10 Codec: Optional for 2160p59.94 and 2160p60 SMPTE ST 2110 IP video

Control & Monitoring
Display: 2.2-inch color LCD
Front Panel Controls: 3 buttons and spin knob
Video Monitoring: Built-in LCD preview
Audio Monitoring: Built-in speaker and headphone output
External Control: Ethernet and USB-C

Connectivity
USB Port: 1 x USB-C
Control Port: 1 x 1G RJ45 Ethernet

Power Specifications
Power Supplies: Dual internal redundant power supplies
AC Input Voltage: 100-240V AC, 50/60Hz
Power Inputs: 2 x IEC C14
PoE Output Power: 8 x 90 W

Physical Specifications
Form Factor: 2RU rackmount
Width: 482.6 mm
Depth: 220 mm
Height: 88.4 mm

Operating Systems
macOS: macOS 15 Sequoia or later
macOS: macOS 26 Tahoe or later
Windows: Windows 11

Environmental Specifications
Operating Temperature: 5°C to 40°C
Storage Temperature: -20°C to 45°C
Relative Humidity: 0% to 90% non-condensing
