RADIAL ENGINEERING

TrainTrack

D.I.

Pedalboard mounting bracket for compact Radial devices, clean fit, secure hold, XLR access, ideal for ProDI, Pro48, and Highline setups.

$34.99 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

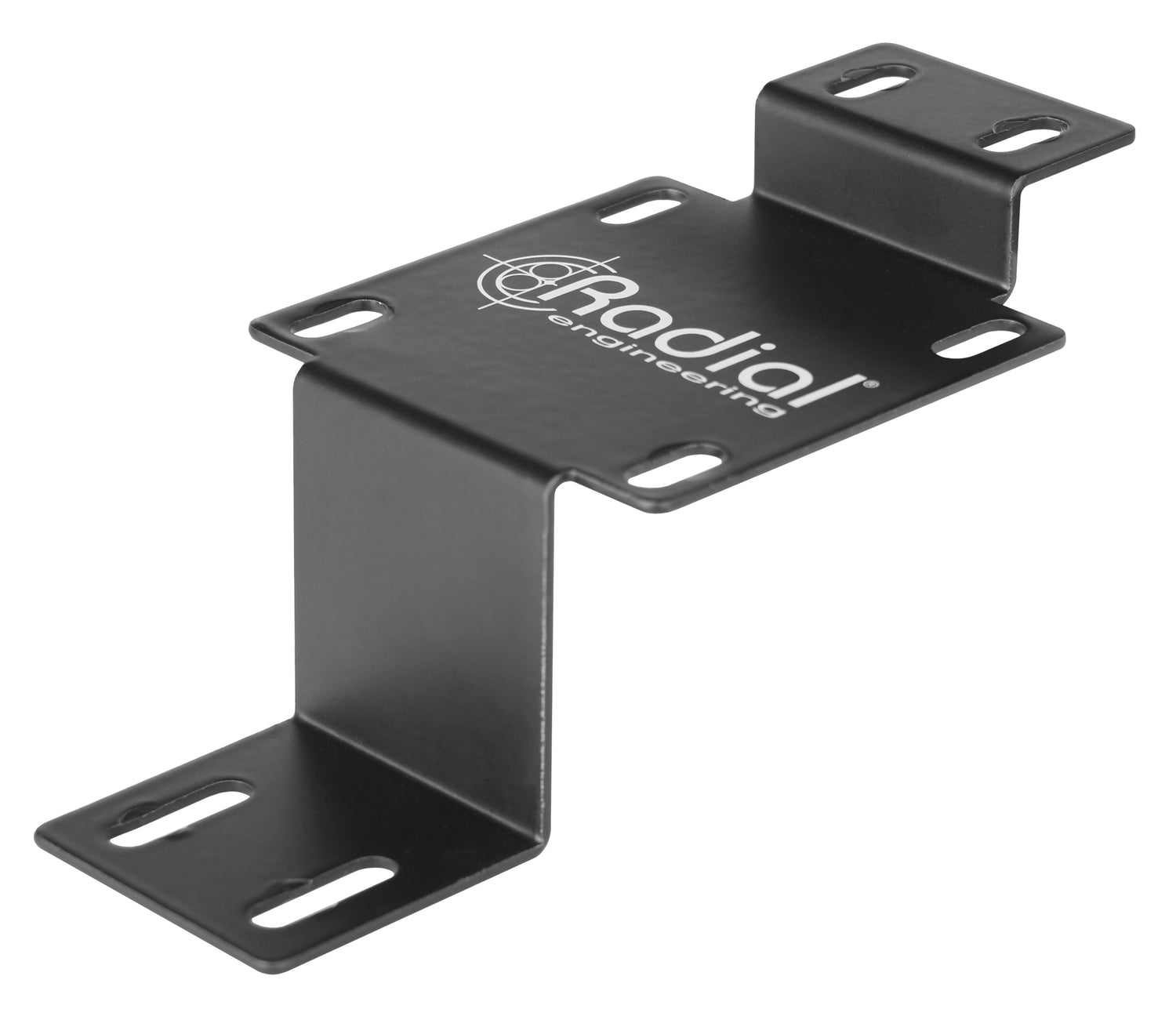

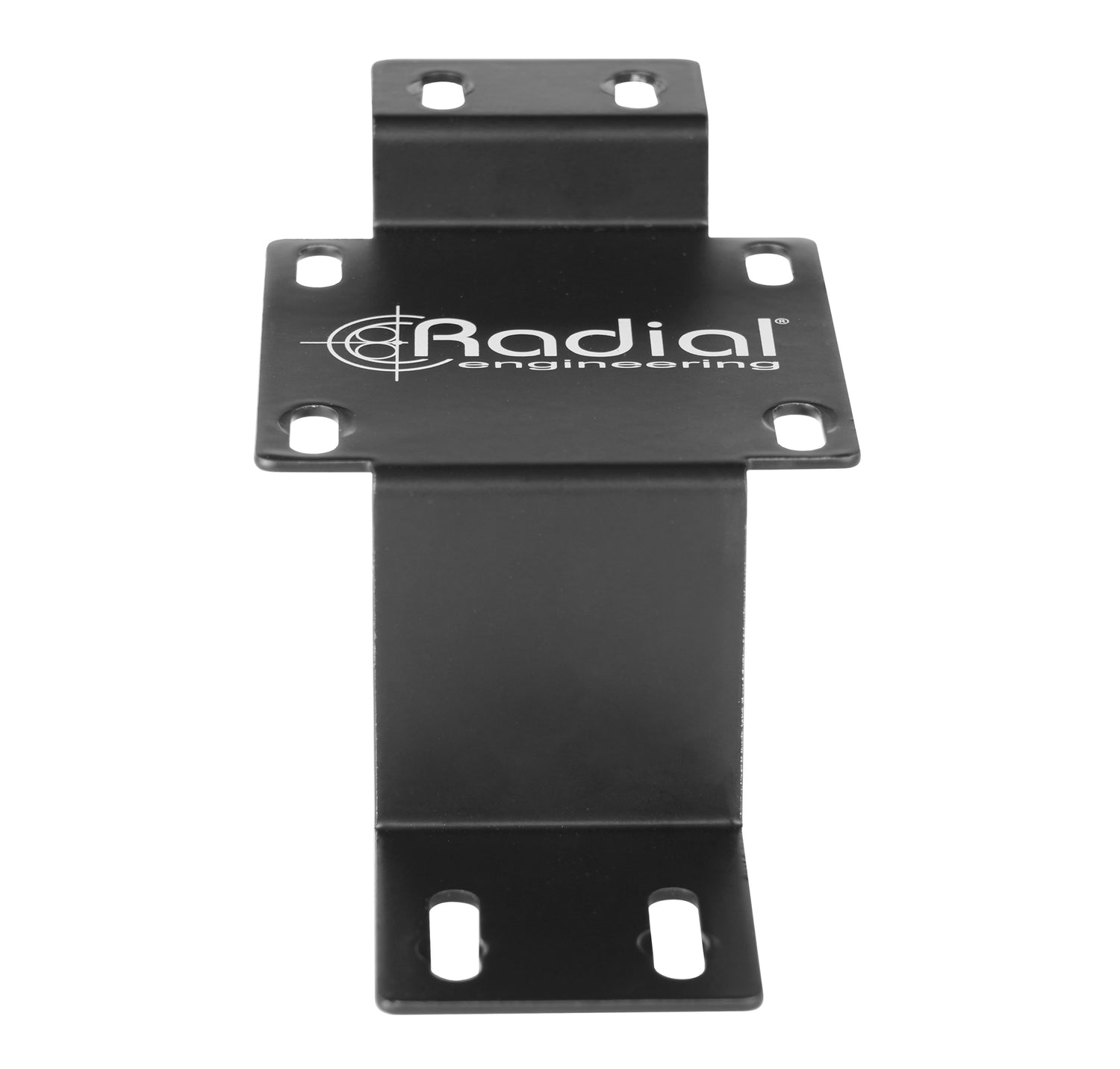

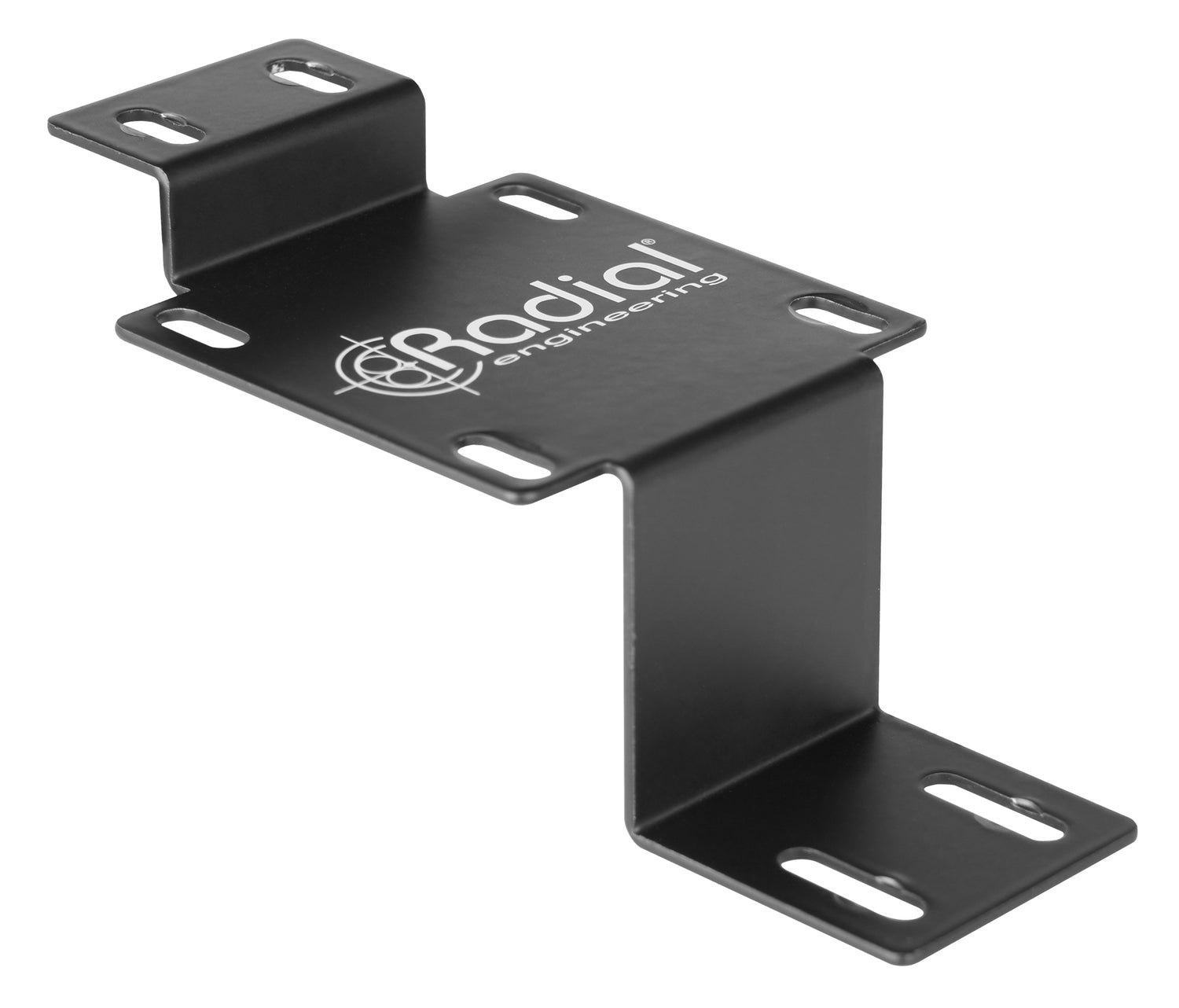

The Radial TrainTrack is a pedalboard mounting bracket designed to securely fasten select Radial devices to the underside of compatible pedalboards. It provides a clean, stable solution for integrating gear like the Highline or ProDI into a pedalboard setup, helping to reduce clutter and protect your equipment during transport or live use. Its form-fitting design makes it easy to mount supported devices while keeping connectors accessible.

Compatible with Pedaltrain boards (Classic JR and larger) and certain modular pedalboards, the TrainTrack allows for flush-edge mounting to keep outputs within easy reach. The bracket comes with all necessary hardware, including screws, washers, hex nuts, and a hex key. Installation is straightforward and requires only basic tools such as a screwdriver, a drill with a 1/8" or 3mm bit, and a marker for placement. It's a practical choice for musicians who need a simple, secure mounting option for their Radial gear.

Features

Secure Mounting
Firmly attaches Radial devices underneath your pedalboard for a stable setup.

Clean Cable Access
Positions the XLR outputs at the edge of the board for easy and tidy connections.

Fits Pedaltrain Boards
Designed to work with most Pedaltrain models (Classic JR and larger).

Removable Foam Pad Option
Allows better fit by removing the device’s foam pad using common household tools.

Multiple Placement Options
Lets you mount the device on either side of the board for flexible positioning.

Easy Installation
Includes all required screws and tools; just add a drill and screwdriver.

Compatible with Key Radial Models
Supports ProDI, Highline, and similar-sized devices

Specifications

General Specifications
Product Type: Pedalboard Mounting Brackets
Model: TrainTrack
Compatible Pedalboards: Pedaltrain (Classic JR and larger), certain modular pedalboards
Compatible Devices: Radial Highline, ProDI, and other devices with same dimensions
Primary Use: Underside mounting of Radial devices on pedalboards
Construction: Metal brackets with slotted mounting holes

Included Hardware
Hex Screws: 2x 5/16" Hex Screws
Washers: 4x
Self-Tapping Screws: 4x
Machine Screws: 2x
Hex Nuts: 2x
Hex Key: 1x

Tools Required (Not Included)
Screwdriver: Phillips Head
Drill Bit: 1/8" or 3mm
Marking Tool: Pen or Marker

Installation Method – Pedaltrain Pedalboards
Step 1: Remove two screws from Radial device with Hex Key
Step 2: Use Hex Screws and Washers to attach TrainTrack to device
Step 3: Position assembly on pedalboard with XLR outputs facing outward
Step 4: Drill four 1/8" (3mm) pilot holes aligned with bracket slots
Step 5: Use Self-Tapping Screws to secure assembly to pedalboard

Installation Method – Modular Pedalboards
Step 1–2: Same as Pedaltrain method
Step 3: Align bracket holes with existing pedalboard holes
Step 4: Attach top edge using 2x Self-Tapping Screws
Step 5: Attach bottom edge using 2x Machine Screws and 2x Hex Nuts
