RADIAL ENGINEERING

TrainTrack Plus

D.I.

Pedalboard bracket for full-size Radial DIs like Highline Stereo, JDI and J48, fits Pedaltrain boards, supports modular setups, includes full mounting hardware, installs underside flush.

$34.99 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

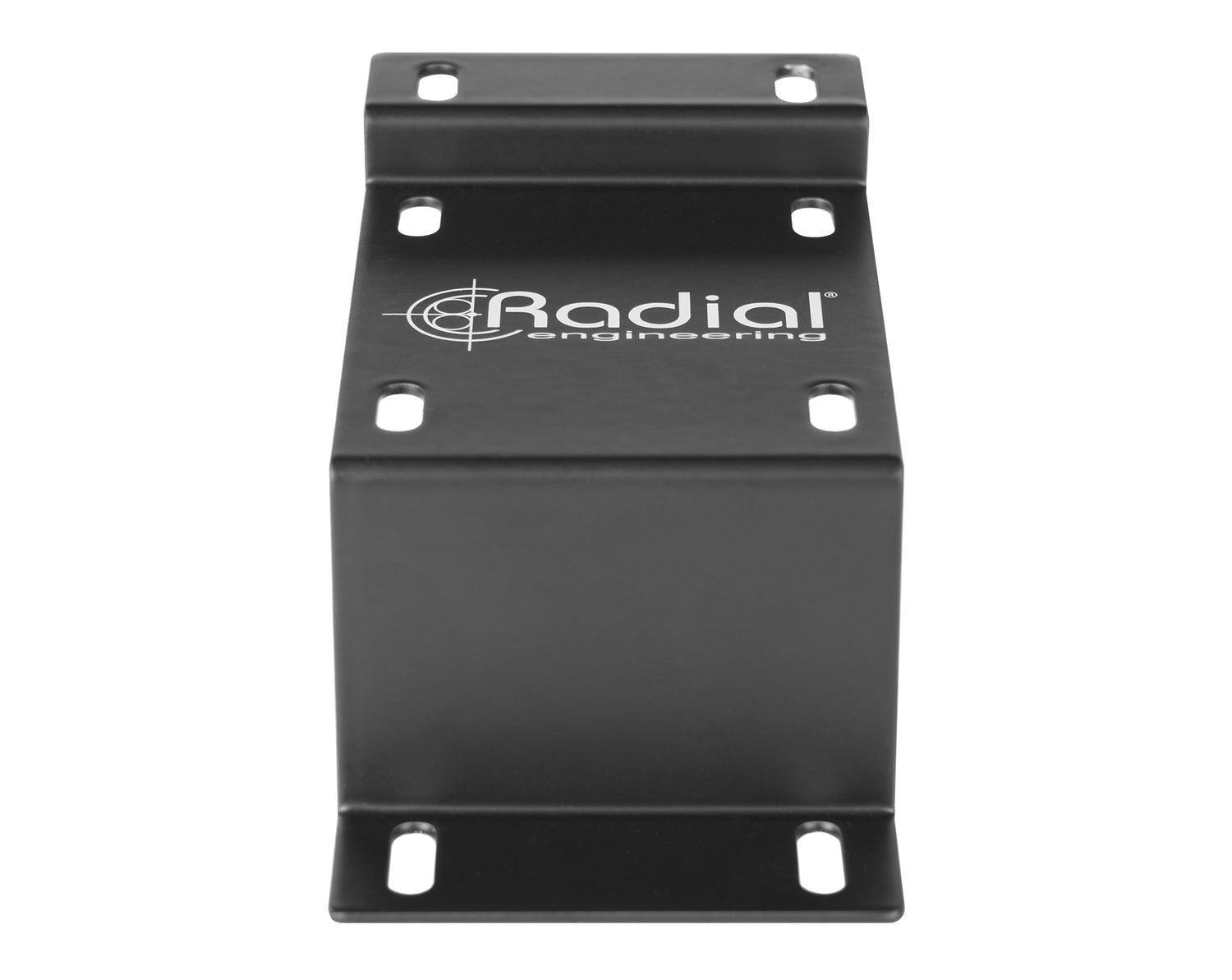

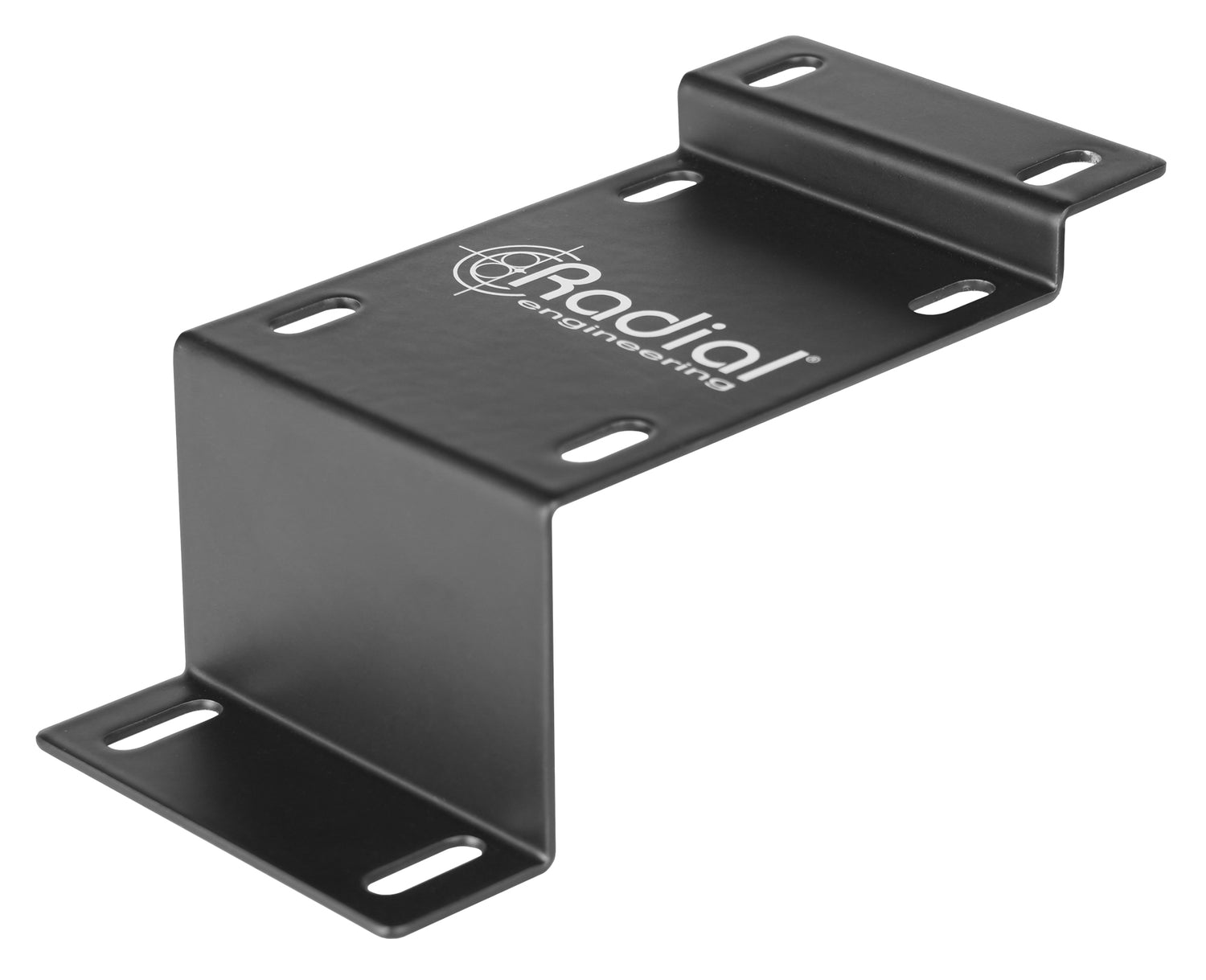

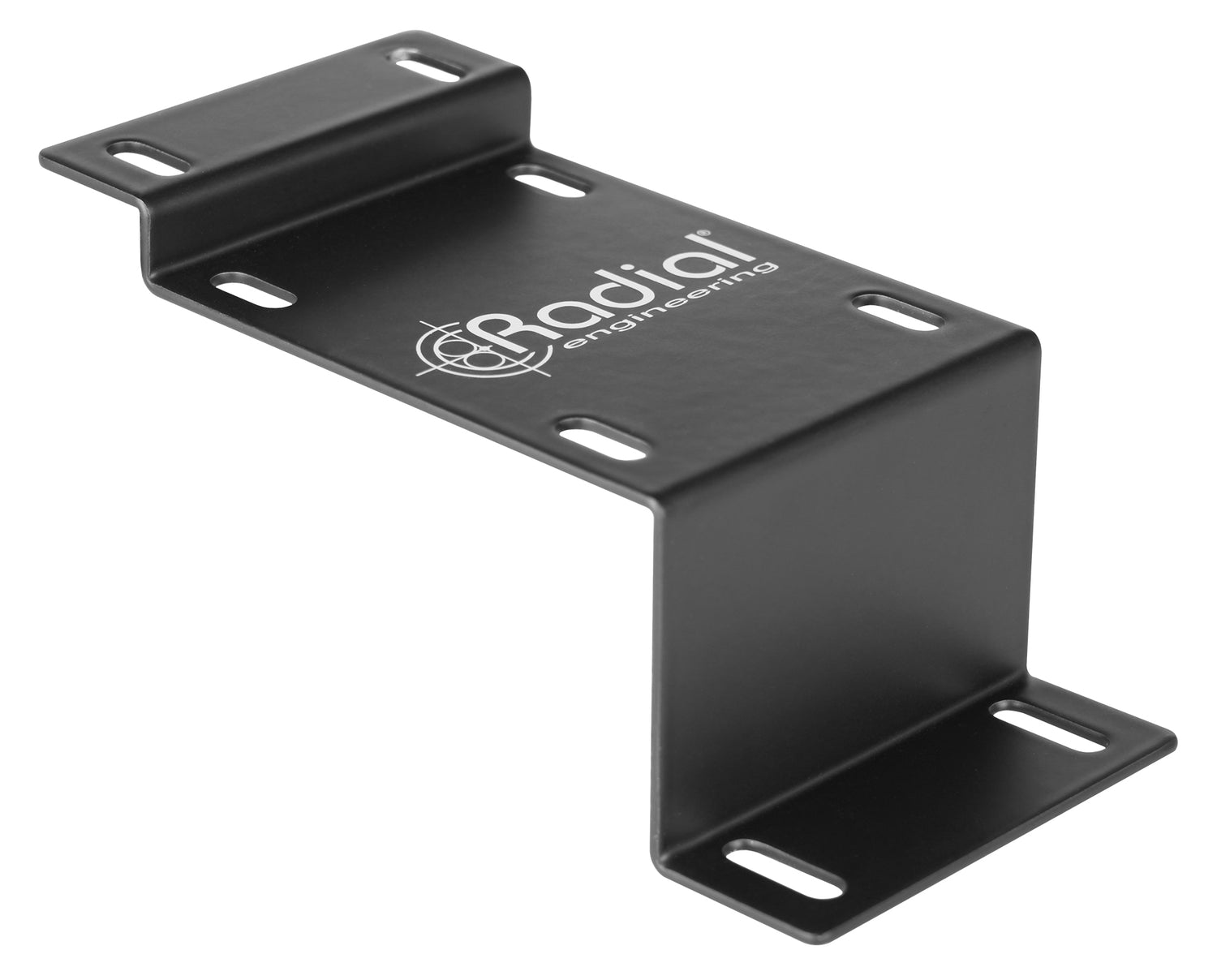

The TrainTrack Plus is a pedalboard mounting bracket developed by Radial Engineering, built specifically to secure larger Radial devices such as the Highline Stereo, JDI, and J48 to your pedalboard. It offers a fixed, professional solution for attaching these units without relying on adhesives or hook-and-loop fasteners. Compatible with Pedaltrain pedalboards (Classic JR and up), it can also be used with certain modular pedalboard styles, offering flexibility for a range of performance setups.

This bracket replaces the standard rubber feet on the device and mounts it beneath the pedalboard using the supplied hardware. It aligns the XLR outputs so they remain accessible at the edge of the board. Installation is straightforward using basic tools like a screwdriver and drill, and the package includes all necessary components: hex screws, washers, self-tapping screws, machine screws, hex nuts, and a hex key. Once in place, the TrainTrack Plus offers a clean and stable mounting method for players who want a tidy, road-ready pedalboard setup.

Features

Secure Pedalboard Mounting
Firmly attaches larger Radial devices to your pedalboard to keep them stable during use.

Designed for Larger Devices
Made to fit bigger models like the Radial Highline Stereo, JDI, and J48.

Pedaltrain & Modular Compatibility
Works with Pedaltrain boards (Classic JR and up) and certain modular pedalboards.

Flush Fit for Easy Access
Allows the mounted device to align with the pedalboard edge for simple access to connectors.

Quick, Tool-Assisted Setup
Includes all needed screws and hardware, plus a hex key for fast installation.

Flexible Placement Options
Can be positioned on either side of the board, with multiple mounting slot choices.

Durable Metal Bracket
Built from strong materials to handle live performance and travel use.

Specifications

General Specifications
Product Type: Pedalboard Mounting Brackets
Model: TrainTrack Plus
Compatible Pedalboards: Pedaltrain (Classic JR and larger), certain modular pedalboards
Compatible Devices: Highline Stereo, JDI, J48
Primary Use: Underside mounting of Radial devices on pedalboards
Construction: Metal brackets with slotted mounting holes

Included Hardware
Hex Screws: 2x 5/16" Hex Screws
Washers: 4x
Self-Tapping Screws: 4x
Machine Screws: 2x
Hex Nuts: 2x
Hex Key: 1x

Tools Required (Not Included)
Screwdriver: Phillips Head
Drill Bit: 1/8" or 3mm
Marking Tool: Pen or Marker

Installation Method – Pedaltrain Pedalboards
Step 1: Remove two screws from Radial device with Hex Key
Step 2: Use Hex Screws and Washers to attach TrainTrack to device
Step 3: Position assembly on pedalboard with XLR outputs facing outward
Step 4: Drill four 1/8" (3mm) pilot holes aligned with bracket slots
Step 5: Use Self-Tapping Screws to secure assembly to pedalboard

Installation Method – Modular Pedalboards
Step 1–2: Same as Pedaltrain method
Step 3: Align bracket holes with existing pedalboard holes
Step 4: Attach top edge using 2x Self-Tapping Screws
Step 5: Attach bottom edge using 2x Machine Screws and 2x Hex Nuts
