SOLID STATE LOGIC

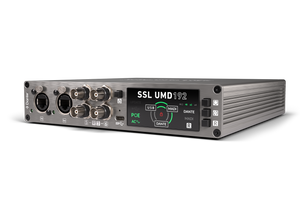

UMD192

Multi-Channel Converters

Digital audio interface and format converter, 192ch at 48/96kHz, MADI, Dante, USB 3.0, ultra-low latency, redundant power, AoIP, macOS/Windows compatible

$4,639.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Solid State Logic UMD192 is a professional-grade USB audio interface designed to deliver high channel counts and dependable performance in live sound, broadcast, studio, and postproduction environments. It supports up to 192 channels at 48 or 96 kHz, and 128 channels at 192 kHz, all within a compact ½ rack unit that’s easy to integrate into mobile or fixed installations. With seamless connectivity across USB, MADI, and Dante, it enables engineers to route audio between formats with minimal latency and full format transparency. This flexibility allows users to consolidate systems, manage large-scale routing requirements, and maintain signal quality across complex setups. Mac users benefit from native Core Audio compatibility without the need for additional drivers, while Windows users can rely on SSL’s dedicated ASIO driver for multi-client workflows. The inclusion of AC, USB, and PoE power options further supports a range of deployment scenarios, including those requiring power redundancy for critical use.

The UMD192 provides a practical solution for connecting digital consoles, recorders, computers, and networked audio systems. It offers six MADI BNC pairs with support for dual-redundant configurations, ideal for applications where continuous audio delivery is essential. On the Dante side, it supports AES67 and ST 2110 (with DDM), along with low-latency performance starting at just 0.25 milliseconds. Real-time status indicators on the front panel give clear visual feedback for signal flow, sync status, and network activity, while a front panel lock feature helps preserve settings during operation. The UMD192’s format bridging capabilities and robust design make it suitable for use across a wide range of professional workflows, from high-track-count studio sessions to live production scenarios where reliability and flexibility are key. With solid construction, comprehensive connectivity, and an intuitive interface, the UMD192 provides a straightforward path to managing modern digital audio environments.

Features

High-Capacity Audio Interface
Handles up to 192 channels across MADI, Dante, and USB formats for seamless integration in professional environments.

Format Bridging
Routes audio bidirectionally between any two of the supported formats, with the third able to receive a mirrored feed.

Dante Network Ready
Fully compatible with Dante AoIP, supporting AES67 and ST 2110, with ultra-low latency for networked audio systems.

Flexible Clocking
Switches between MADI and Dante as clock sources, supporting a wide range of sample rates.

Redundant MADI Connections
Supports up to three dual-redundant MADI connections for critical live or broadcast workflows.

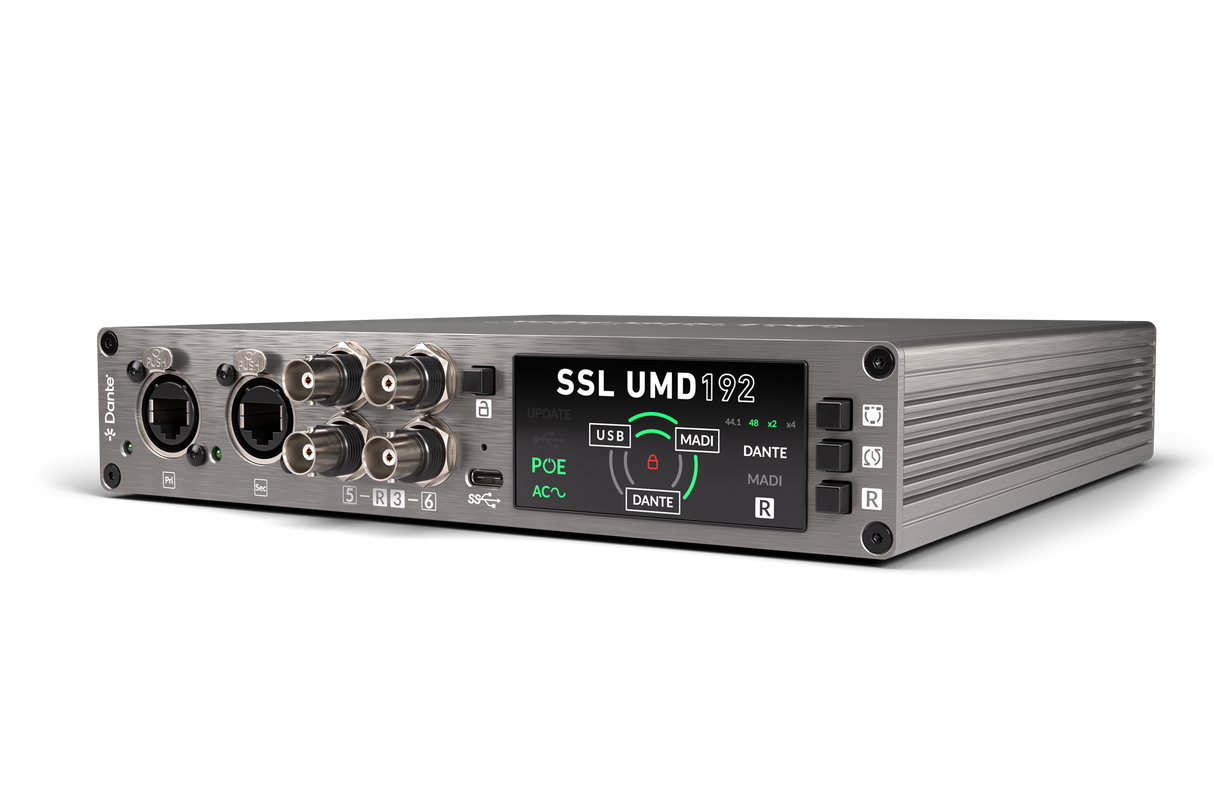

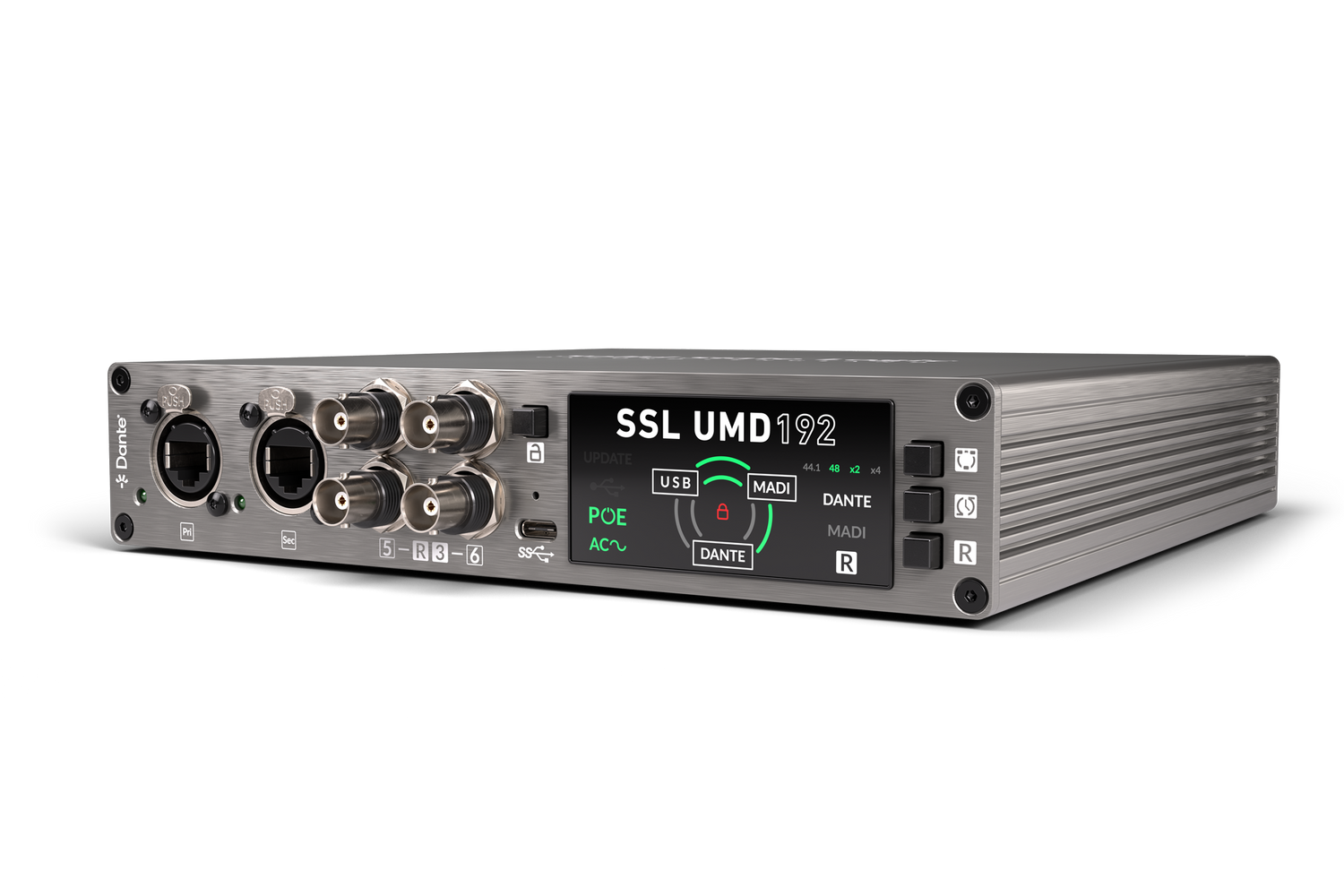

Intuitive Front Panel
Clear status indicators and control buttons help manage routing, sync, and power visibility at a glance.

Control Lockout Protection
Prevents accidental changes during operation with a front panel lock feature.

Multiple Power Options
Operates on AC, USB, or PoE power, with built-in redundancy for reliability.

Plug-and-Play on Mac
No drivers required for macOS—connect and start working instantly.

Windows Support with SSL Driver
Provides ASIO driver support for multi-client audio workflows on Windows systems.

Compact and Portable Design
Lightweight and versatile for desktop, rack-mounted, or console-side use.

Included Accessories
Ships with USB-C, USB-A adapter, and power cable for quick setup.

Specifications

General Specifications
Device Type: High-Capacity Digital Audio Interface
Compatibility: macOS (Core Audio, class-compliant), Windows (via SSL ASIO driver)
Form Factor: ½ Rack Unit (½RU)
Construction: Portable, ruggedised for live/broadcast/studio use
Control Interface: Intuitive front panel with lockout protection

Audio Channels
At 48/44.1 kHz: 192 channels
At 96/88.2 kHz: 192 channels
At 192/176.4 kHz: 128 channels

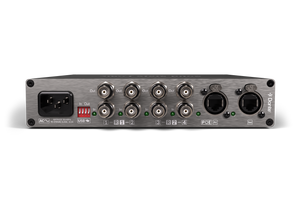

Connectivity
USB: USB 3.0, class-compliant

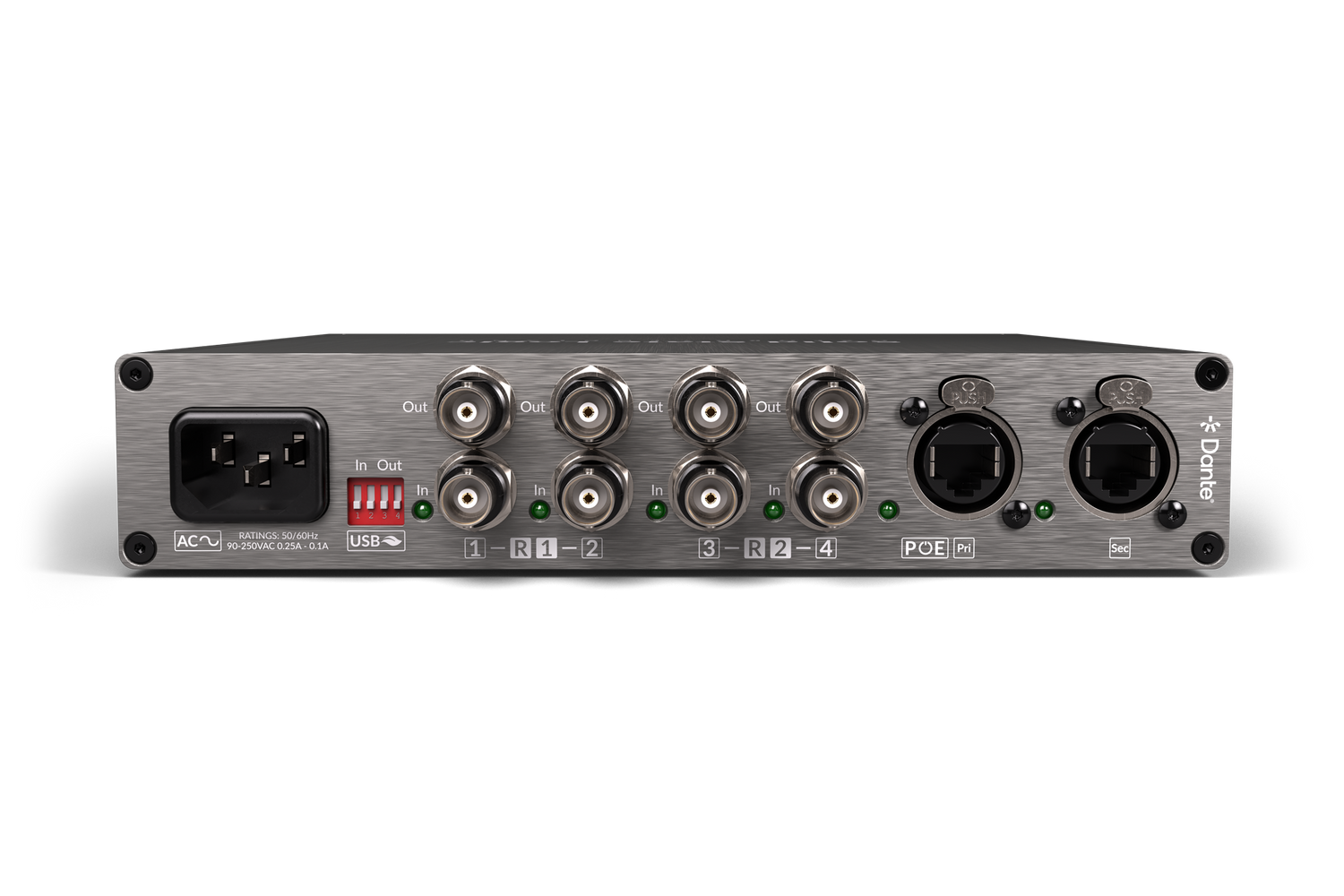

MADI: 6x MADI BNC pairs (supports 3x dual-redundant MADI connections)
Dante: 2x Primary and 2x Secondary Ethernet ports (ruggedised, with Link & Activity LEDs)
AoIP Support: Dante with AES67 and ST 2110 (with DDM)
Latency: Dante latency as low as 0.25 ms

Clocking
Clock Source Options: Selectable between MADI and Dante
Supported Sample Rates: 44.1 to 192 kHz

Power
Power Sources: AC mains, Power over Ethernet (PoE), USB
Power Redundancy: Supported via combined PoE and external PSU

Software & Driver Support
macOS: Native support, no driver needed
Windows: SSL ASIO driver required (multi-client capable)

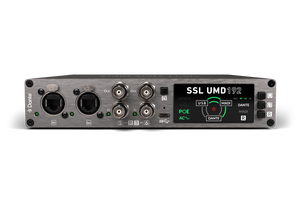

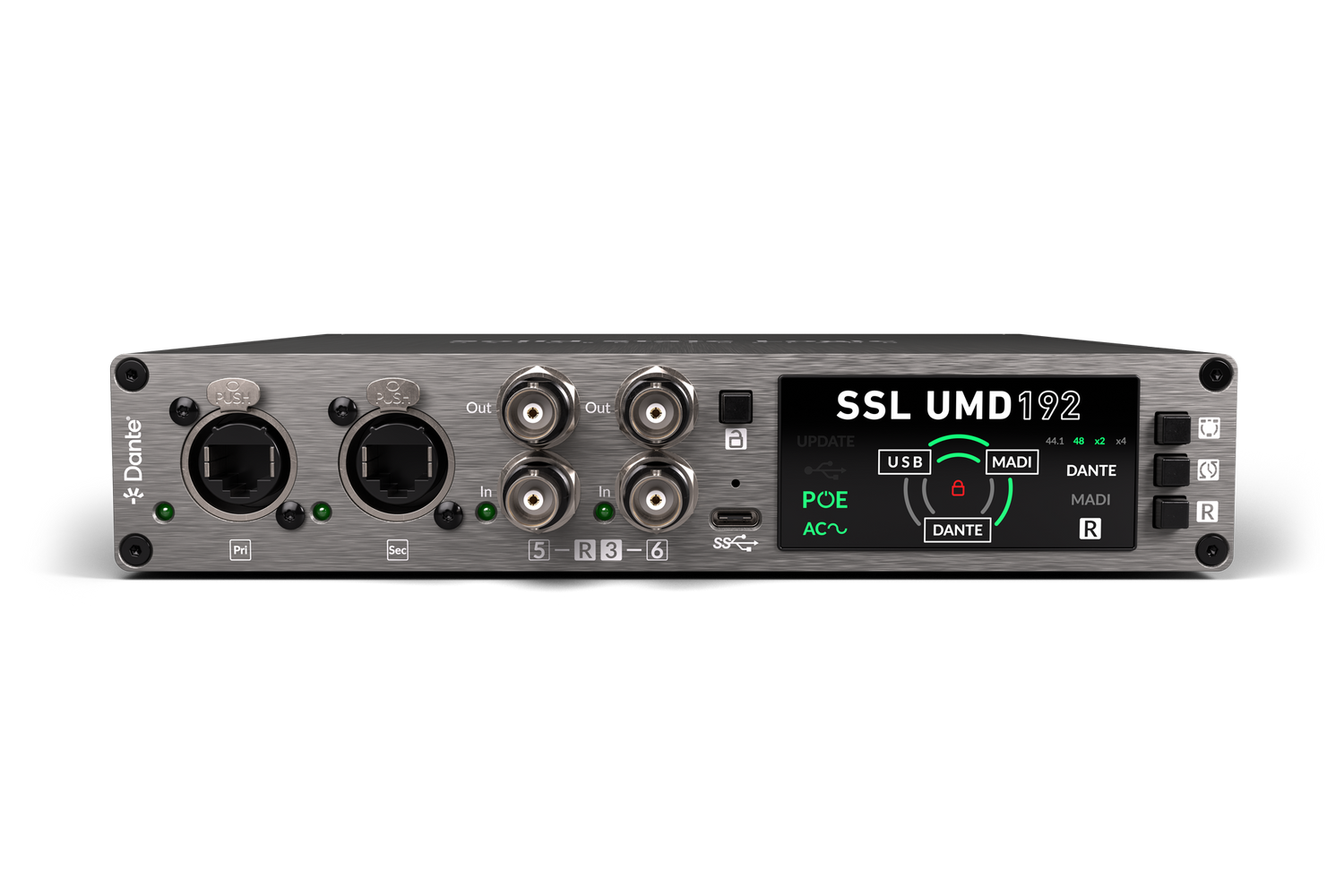

Front Panel Features
Indicators: Signal flow, sample rate sync, power status, network connectivity
Controls: Mode select, clock source toggle, MADI redundancy toggle, lockout button

Included Accessories
Cables: USB-C to C cable, USB-A to C adapter, IEC power cable
Rack Mounting: Optional rack kit available
