SCHOEPS

V4 SGV Set b

Name: V4 SGV Set b
Brand: SCHOEPS
SKU: 62427
Price: 4911.00 CAD
Availability: InStock

ID: 62427

Studio vocal microphone set, cardioid small-diaphragm capsule, bevelled collar, mild high-frequency lift, rigid stand clamp, wooden case, blue finish

$4,911.00 CAD

Shipping calculated at checkout.

Want an alert when this item is on sale?

Delivery & Shipping

Free shipping is available on eligible orders over $200 CAD. Remote regions and oversized or overweight items may be subject to additional shipping charges.

For full details, please review our View details here.

Financing

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

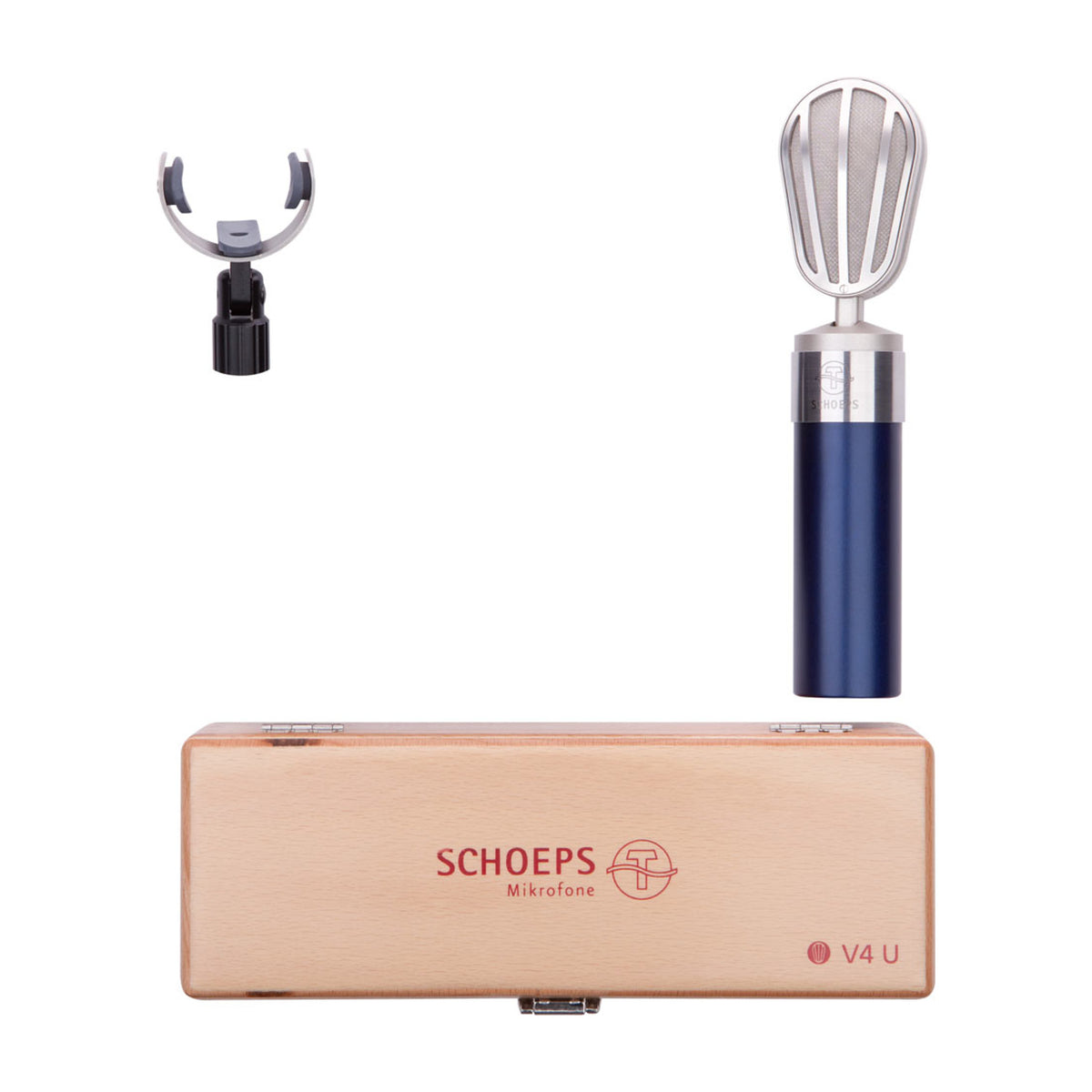

The Schoeps V4 U SGV Set in blue brings the V4 U studio microphone together with a wooden case and the SGV stand clamp. The V4 U unites the outstanding technical characteristics typical of Schoeps with a timeless, classic design.

Its small-diaphragm capsule has a 33-mm beveled collar, so the directivity increases steadily and smoothly at high frequencies, as in a large-diaphragm microphone. The on-axis response has a mild high-frequency lift, the capsule is elastically suspended internally to reduce handling noise, and the capsule head has an adjustable tilt angle.

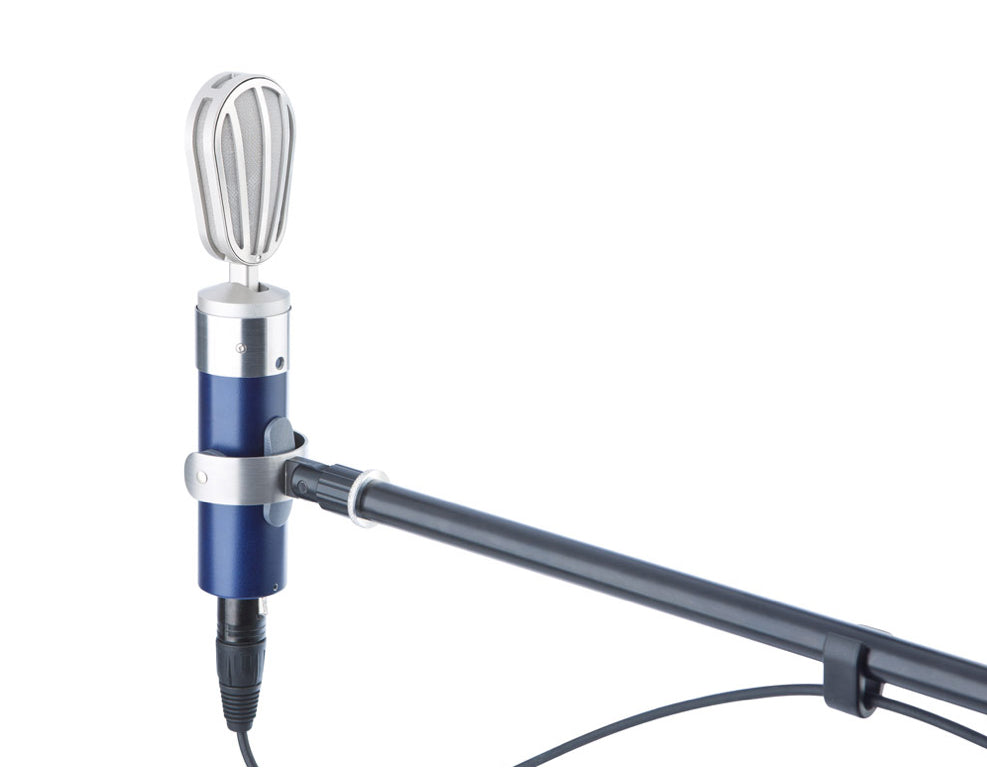

The SGV stand clamp has a steel frame with flexible plastic holders and a 5/8"-27 NS internal thread, with a threaded adapter for 3/8" and 1/2" mounting. The angle can be varied continuously in the vertical plane.

Features

Studio Vocal Microphone
The V4 U is the studio microphone by Schoeps, with a timeless, classic design.

Beveled Collar Capsule
A 33-mm beveled collar increases the capsule directivity steadily and smoothly at high frequencies.

Adjustable Capsule Head
The capsule head has an adjustable tilt angle.

Handling Noise Reduction
The capsule is elastically suspended internally to reduce solid-borne sound such as handling noise.

High Maximum Level
A maximum sound pressure level of 144 dB SPL corresponds to an output level of 4.8 V.

Interference Protection
Gapless shielding and a modern RFI filter at the output give high immunity to interference.

SGV Stand Clamp
A steel frame with flexible plastic holders holds the microphone, and its angle can be varied continuously in the vertical plane.

Wooden Case
The set contains a wooden case for the microphone.

Specifications

General Specifications
Pickup Pattern: Cardioid
Frequency Range: 50 Hz - 22 kHz
Sensitivity: -36 dB (V/Pa), 16 mV/Pa
Surface Finish: Blue

Audio Performance
Equivalent Noise Level (A-weighted): 15 dB
Equivalent Noise Level (CCIR): 25 dB
Signal-to-Noise Ratio (A-weighted): 79 dB
Maximum Sound Pressure Level (THD < 0.5 %): 144 dB-SPL
Maximum Output Voltage: 4.8 V (13 dBV) with 1 kΩ load
Low Cut Filter: 40 Hz, 18 dB/oct.
Common Mode Rejection Ratio (at 1 kHz): > 80 dB

Connectivity
Output: XLR-3M, analog, 1 channel
Minimum Recommended Load Impedance: 1 kΩ
Output Impedance: 50 Ω
Maximum Cable Length: > 300 m

Power
Powering Standard / Valid Range: P 48 / >43 V
Current Consumption: 3.3 mA

Dimensions and Weight
Length: 194 mm
Diameter: 34 mm
Width of the Capsule Head: 45 mm
Head Swivel Degree Span: +/- 20°
Weight: 302 g

Included Components
Studio Microphone
Wooden Case
SGV Stand Clamp
