SCHOEPS

V4 USM Set b

Name: V4 USM Set b
Brand: SCHOEPS
SKU: 62429
Price: 4911.00 CAD
Availability: InStock

ID: 62429

Cardioid studio condenser microphone, small-diaphragm capsule with bevelled collar, 144 dB-SPL maximum level, elastic suspension and wooden case, blue finish

$4,911.00 CAD

Shipping calculated at checkout.

Want an alert when this item is on sale?

Delivery & Shipping

Free shipping is available on eligible orders over $200 CAD. Remote regions and oversized or overweight items may be subject to additional shipping charges.

For full details, please review our View details here.

Financing

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

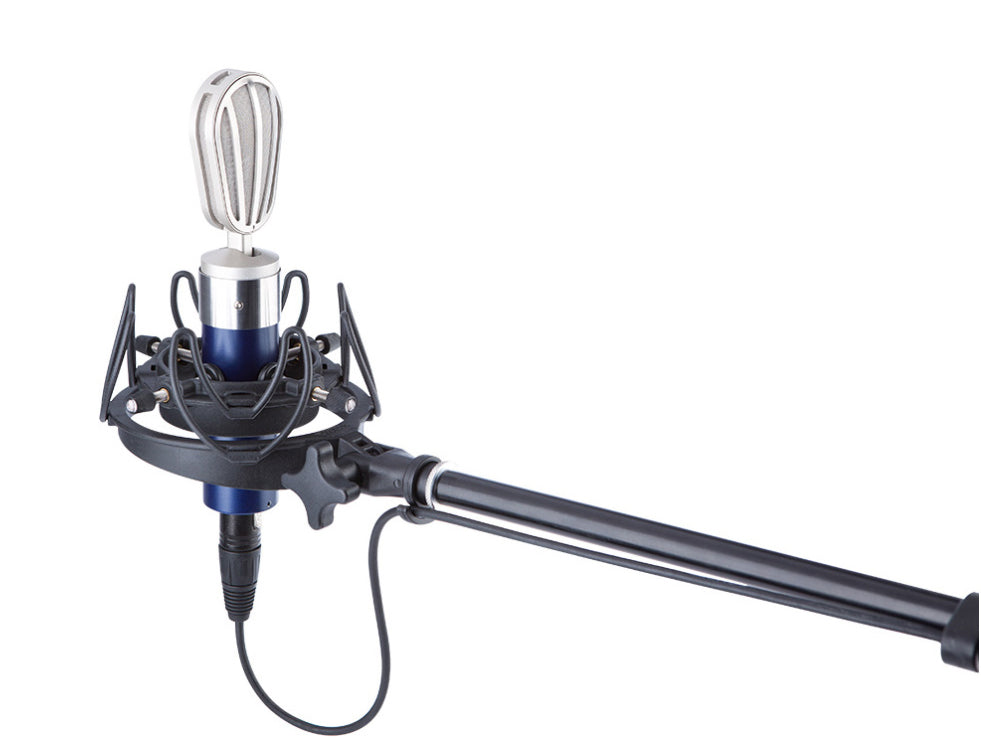

The Schoeps V4 U USM Set pairs the V4 U studio microphone with a wooden case and the USM-V4 elastic suspension. The V4 U is the studio microphone by Schoeps, with a classic look based on the Schoeps CM 51/3 from 1951 and a thoroughly modern capsule, circuit and mechanical construction.

Its small-diaphragm capsule has a 33-mm beveled collar, so the directivity increases steadily and smoothly at high frequencies, as in a large-diaphragm microphone, while the extraordinarily smooth frequency and polar response are maintained. The on-axis response has a mild high-frequency lift. This set comes in blue.

The USM-V4 elastic suspension is recommended for maximum solid-borne sound isolation. Its base has a 3/8' inner thread, and an adapter for 5/8' is included.

Features

Studio Microphone Design
The V4 U look is based on the Schoeps CM 51/3 from 1951, while its capsule, circuitry and mechanics are new developments.

Bevelled-Collar Capsule
A 33-mm beveled collar makes the directivity increase steadily and smoothly at high frequencies, while the smooth frequency and polar response of a small-diaphragm capsule are maintained.

Mild High-Frequency Lift
The on-axis frequency response features a mild high-frequency lift.

Adjustable Capsule Head
The capsule head has an adjustable tilt angle.

Internal Capsule Suspension
The capsule is elastically suspended internally to reduce solid-borne sound such as handling noise.

High Maximum Level
The maximum sound pressure level is 144 dB SPL, corresponding to an output level of 4.8 V.

Balanced Transformerless Output
The output stage is transformerless and free of coupling capacitors, with a symmetrical balanced output.

Interference Protection
Gapless shielding and a modern RFI filter at the output give high immunity to interference.

USM-V4 Elastic Suspension
Recommended for maximum solid-borne sound isolation. The base has a 3/8' inner thread and an adapter for 5/8' is included.

Specifications

General Specifications
Pickup Pattern: Cardioid
Frequency Range: 50 Hz - 22 kHz
Sensitivity: -36 dB (V/Pa), 16 mV/Pa
Surface Finish: Blue

Audio Performance
Equivalent Noise Level (A-weighted): 15 dB
Equivalent Noise Level (CCIR): 25 dB
Signal-to-Noise Ratio (A-weighted): 79 dB
Maximum Sound Pressure Level (THD < 0.5 %): 144 dB-SPL
Low Cut Filter: 40 Hz, 18 dB/oct.
Common Mode Rejection Ratio (at 1 kHz): > 80 dB

Electrical
Maximum Output Voltage: 4.8 V (13 dBV) with 1 kΩ load
Minimum Recommended Load Impedance: 1 kΩ
Output Impedance: 50 Ω
Maximum Cable Length: > 300 m
RFI Shield: Yes
Powering Standard / Valid Range: P 48 / >43 V
Current Consumption: 3.3 mA
Output: XLR-3M, analog, 1 channel

Dimensions and Weight
Length: 194 mm
Diameter: 34 mm
Width of the Capsule Head: 45 mm
Head Swivel Degree Span: +/- 20°
Weight: 302 g

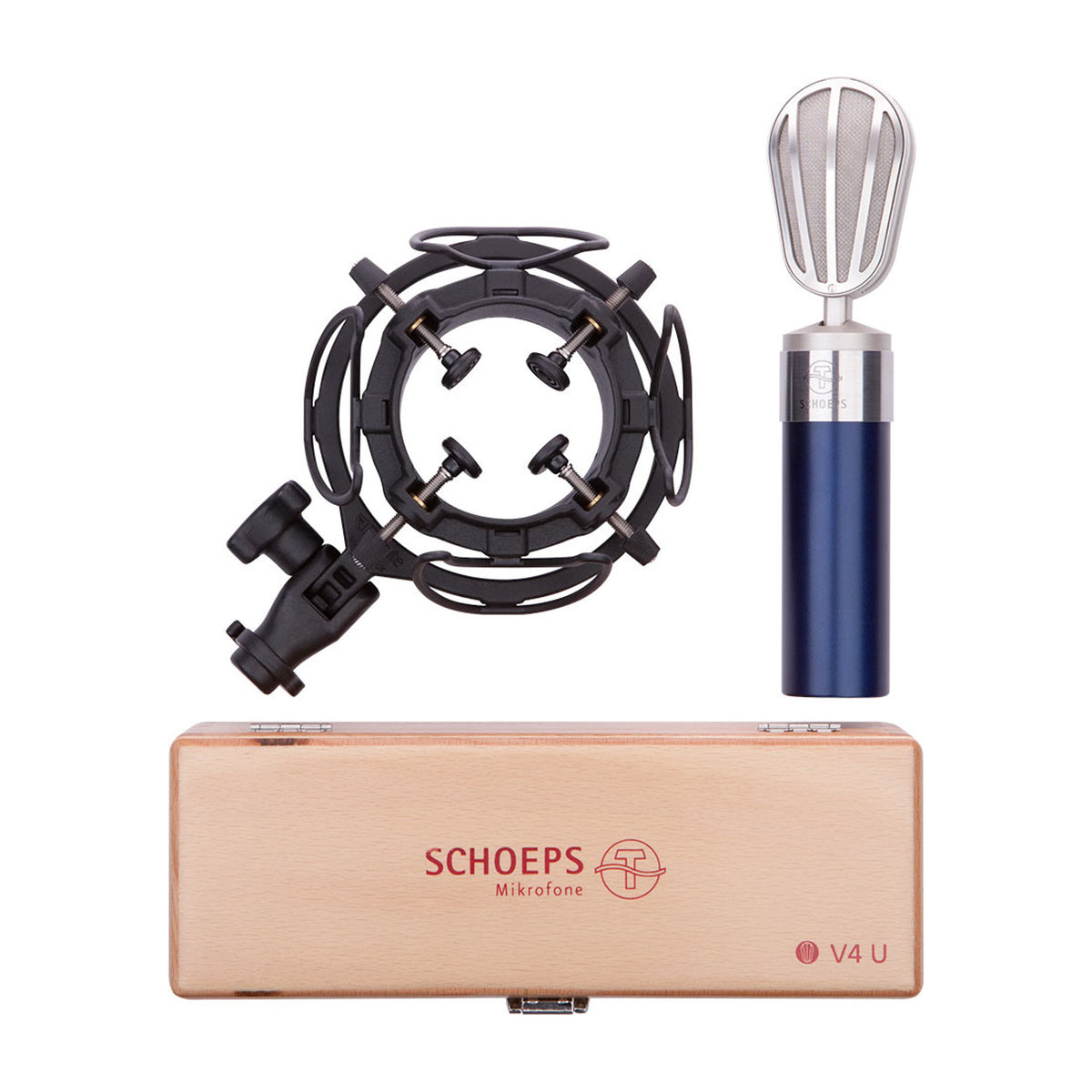

Included Components
V4 U Studio Microphone
Wooden Case
USM-V4 Elastic Suspension
5/8' Thread Adapter
