Orion Studio rev.2017 Thunderbolt and USB interface
Through a unique sampling technique for vintage gear modeling we have provided Orion Studio with the finest selection of hardware-quality audio effects, among which legendary EQ and compressor hardware plus our very own and extremely versatile AuraVerb reverb.

Orion Studio comes with full yet ever expanding list of Antelope Vintage FX models

Microphones
Edge Duo emulations (available with Antelope's Edge Duo Modeling Microphone)

Berlin 47 FT

Berlin 49T

Berlin 57

Berlin 87

Berlin 67

Berlin M103

Vienna 12

Vienna 414

Tokyo 800T

Oxford 4038

Sacramento 121R

coming soon: Berlin K86, Berlin 47 TU, Berlin V563, Berlin/Halske M25, Berlin M251, Minnesota 20, Illinois 7B

Verge emulations (available with Antelope's Verge Modeling Microphone)

Berlin 184

Perth 55

Freiburg 6

Aalborg 4006

Hamburg 40

EQ Legends

VEQ-STU 089

VEQ-STU 169

VEQ-STU 900

VEQ HA32C

BAE 1023

BAE 1084

NEU-W492

NEU-W495

VEQ-4K Black

VEQ-4k Brown

VEQ-4K Pink

VEQ-4K Orange

BAE-1073

VEQ-HLF

VEQ - 1A

VMEQ-5

LANG PEQ2

VEQ-55A

UK-69

NEU-PEV

INTEGRATED EQ

Vintage Compressors

X160

Tube176

X903

Gyratec X

Grove Hill Liverpool

Feedforward Antelope Compressor

FET-A76

AURAVERB

New Reverb Leveraging Unique Algorithms and Proprietary FPGA Chip for "Smooth and Clear" Sound

The Guitar Classics

Cabinets: Darkface 65 2x12, Top30 2x12, Green 2x12, Vintage 4x12, Green 4x12, Caliper50 1x10, Clst1x12, England4x12, Modern 4x12, Bluelux 1x12, Bass Tube 1x15.

Guitar Amps: Darkface 65 US, Top32 UK, Modern US, Plexi 59 UK, Rock 22.10 UK, Rock 75 UK, Marcus II US, Tweed, Deluxe US, Overange 120 UK, BurnSphere DE, Bass SuperTube VR.

Mics

California 121 Ribbon

Austria Gold 414

American57

German FET87

Mic Preamp Emulations

Gyratec IX

VPA 76

BAE-1073MP

RD-47

BA-31

Tape-machine Emulation

Reel to Reel

ALL YOU NEED IN JUST 1U
Orion Studio fits Thunderbolt and USB connectivity, 12 mic pres and our renowned clocking in just 1U rack space.

Since its release in 2015 Orion Studio has become one of the biggest stars in the Antelope Audio line of ThunderboltTM & USB audio interfaces. And now we made it even better. With 12 Class-A Mic Pres make it's one and only piece of gear you'll need to record a full band and do it like a pro. For 2017 Orion Studio got brand new AD converters, raising its dynamic range to an industry best 124 dB and features superior low latency performance. Now coming in a gorgeous

carbon grey faceplate, Orion Studio has a ton of new features inside its powerful Control panel and FPGA engine.

Just like Zen Tour and Goliath, Orion Studio features the full array of real-time FPGA powered vintage FX. This best-selling interface also includes Antelope's traditionally stunning AD/DA conversion, powered by our very own, world-renowned 64-bit Acoustically Focused Clocking (AFC) technology for jitter management.

ORION STUDIO'S SECRET WEAPON

Custom FPGA will allow you to create and stream multiple complex mixes and process audio with zero latency.

Orion Studio's secret weapon is the extremely powerful Field-Programmable Gate Array (FPGA) device. Its massive parallel processing capabilities are far ahead of DSP chips used in similar devices. Through smart algorithms, oversampling and custom-tweaked models, the FPGA provides the lowest latency possible, allowing you to create up to four independent, zero latency mixes. Those can be easily assigned to any output including the two separate headphone outs.

Antelope Modeling Microphones

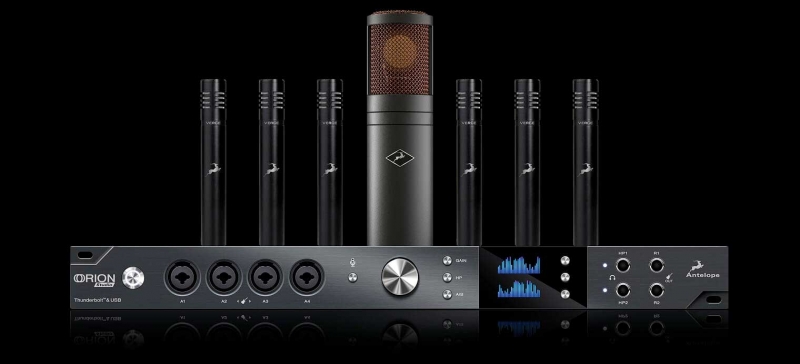

Orion Studio rev.2017 meets Edge Duo and Verge
Orion Studio Rev. 2017 is the latest revision of one of Antelope Audio's most sought-after units. It comes with extended connectivity options, generous mic pre-count and an always growing selection of mic emulations and authentic FX models of vintage studio gear. Bundled with the sophisticated modeling mic powerhouse Edge Duo and an extended set of Verge mics it's a next level solution for capturing and shaping sounds.

Edge Duo & Verge are two of Antelope Audio's powerful modeling microphones that combine outstanding modeling potential with fast and user-friendly workflow. Bundled with the Orion Studio rev.2017 interface they make for a perfect and versatile recording setup. The bundle gives users access to an exquisite collection of vintage mic emulations and authentic FX models of legendary studio gear.

Edge Duo is a large-diaphragm condenser microphone coming with a sleek matte black finish. It captures vocals and instruments with pristine clarity, depth and detail, making it the perfect starting point for emulating a plethora of timeless studio microphones. The original package of 11 legendary microphone models will soon be expanded with 7 more mic emulations.

Verge is a small diaphragm modeling microphone suited for both nuanced accuracy and high SPL recording. Also exhibiting excellent performance on its own, it can take on the character and personality of the world's best small diaphragm condensers and electrets.

Orion Studio rev.2017

ANALOG
Analog Inputs

4 x Mic / Line Instrument on XLR combos on the front

8 x Mic / Line on XLR combos on the rear

Analog Inserts

2 x Inserts on TRS (inputs 1,2)

Analog Outputs

16 x Lines on 2 x DB25 (16 channels Line Out)

2 x Stereo Monitor out on TRS (4 channels, only 1 active pair at a time)

2 x Stereo Headphone outs on TRS (4 channels)

2 x ReAmp outs on TRS (2 channels)

D/A Monitor Converter

Dynamic Range: 129 dB

THD + N: -108 dB

A/D Converter

Dynamic Range: 124 dB

THD + N: -112 dB

D/A Converter

Dynamic Range: 120 dB

THD + N: -107dB

Mic Preamp

Gain: 0,10 - 65 dB

THD + N: -108 dB

DIGITAL
Digital Inputs

2 x ADAT (up to 16 depending on the sample rate)

1 x S/PDIF

Digital Outputs

2 x ADAT

1 x S/PDIF

USB I/O

USB 2.0 Hi-Speed;

Data stream up to 480 Mbits/192kHz, 24 channels I/O, Type B

Thunderbolt I/O

1 x Thunderbolt, 32 channels I/O

CLOCKING
Word Clock Input

1 x Input @ 75 Ohms 3Vpp on BNC 32 - 192kHz

Word Clock Outputs

1 x Outputs @ 75 Ohms 3Vpp on BNC 32 - 192kHz

Clocking System

4th Generation Acoustically Focused Clocking

64-bit DDS

Oven Controlled Crystal Oscillator

Clocking Stability

<+/-0.02 ppm, oven controlled at 64.5/ 148.1

Clock Aging

< 1 ppm per year

Clock Calibration

<+/-0.001 ppm

Sample Rates

32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)

OTHER
Operating Temperature

0-50, 32-122

Weight

3.1 kg/ 6.83 lbs ( approx )

Dimensions (Approx)

Width: 483 mm / 19"

Height: 44 mm / 1.7"

Depth: 220 mm /8.6"

Electrical specs

DC Universal input: 18V

Power Consumption: 25 Watts Max

Edge Duo
Microphone type: Stereo condenser microphone
Diaphragm: Large Condenser - Double-sided 6 gold-sputtered membranes
Diaphragm diameter: 34mm
Polar pattern: Multi-pattern (Cardioid, Figure-8, Omnidirectional)
Frequency response: 20HZ ~ 20KHZ
Sensitivity: -35dB | 18mV/Pa (-1 to +3dB)
THD+N: -116dB
Self-noise: 19dB(A)
SNR: 75dB(A)
Output impedance: 50 Ohms @ 1kHz
Power requirements: 48V DC Phantom Power
Output connector: 5-pin male XLR
Color: Black matte
Weight (mic body): 1.23 lbs. (560 grams)
Dimensions (mic body): 8.6" x 2.1" (219mm x 53mm)
Breakout cable: 16.4' (5meters) 5-pin female XLR to dual 3-pin male XLR (High grade OFC Y-cable)
Mount: Shock absorber type
Case: Standard mid-size road case with handle and custom-fit foam inserts

Verge
Diaphragm: Condenser (back electret type)
Freq. response: 40Hz ~20kHz
Sensitivity: -40dB (+/-3dB)
Max input SPL: 146dB
Power Requirements: 48V DC Phantom Power
