Orion Studio rev.2017 Thunderbolt and USB interface
Thanks to our love for both analog detail and digital perfection you can now access not only legendary guitar amps and cabs, but a plethora of classic studio gear. Through a unique sampling technique for vintage gear modeling we have provided Orion Studio with the finest selection of hardware-quality audio effects, among which legendary EQ and compressor hardware plus our very own and extremely versatile AuraVerb reverb.
Orion Studio comes with full yet ever expanding list of Antelope Vintage FX models:
Edge Solo emulations (available with Antelope's Edge Solo Modeling Microphone) - Berlin 47 FT, Berlin 49T, Berlin 57, Berlin 87, Berlin 67, Berlin M103, Vienna 12, Vienna 414, Tokyo 800T, Berlin V563 cardioid capsule, Illinois 57, Illinois 7B, Minnesota 20, Vienna 112, Berlin K86, Berlin 47 TU, Berlin M251, Hamburg 441
Verge emulations (available with Antelope's Verge Modeling Microphone)- Berlin 184, Perth 55, Freiburg 6, Aalborg 4006, Hamburg 40
* EQ Legends: VEQ-STU 089, VEQ-STU 169, VEQ-STU 900, VEQ HA32C, BAE 1023, BAE 1084, NEU-W492, NEU-W495, VEQ-4K Black, VEQ-4k Brown, VEQ-4K Pink, VEQ-4K Orange, BAE-1073, VEQ-HLF, VEQ - 1A, VMEQ-5, LANG PEQ2, VEQ-55A, UK-69, NEU-PEV, INTEGRATED EQ
* Vintage Compressors: X160, Tube176, X903, Gyratec X, Grove Hill Liverpool, Feedforward Antelope Compressor, FET-A76
* AURAVERB: New Reverb Leveraging Unique Algorithms and Proprietary FPGA Chip for "Smooth and Clear" Sound
* The Guitar Classics:
Cabinets: Darkface 65 2x12, Top30 2x12, Green 2x12, Vintage 4x12, Green 4x12, Caliper50 1x10, Clst1x12, England4x12, Modern 4x12, Bluelux 1x12, Bass Tube 1x15.
Guitar Amps: Darkface 65 US, Top32 UK, Modern US, Plexi 59 UK, Rock 22.10 UK, Rock 75 UK, Marcus II US, Tweed, Deluxe US, Overange 120 UK, BurnSphere DE, Bass SuperTube VR.
Mics: California121 Ribbon, Austria Gold 414, American57, German FET87.
* Mic Preamp Emulations: Gyratec IX, VPA 76, BAE-1073MP, RD-47, BA-31
* Tape-machine Emulation: Reel to Reel
ALL YOU NEED IN JUST 1U
Orion Studio fits Thunderbolt and USB connectivity, 12 mic pres and our renowned clocking in just 1U rack space.
Since its release in 2015 Orion Studio has become one of the biggest stars in the Antelope Audio line of ThunderboltTM & USB audio interfaces. And now we made it even better. With 12 Class-A Mic Pres make it's one and only piece of gear you'll need to record a full band and do it like a pro. For 2017 Orion Studio got brand new AD converters, raising its dynamic range to an industry best 124 dB and features superior low latency performance. Now coming in a gorgeous carbon grey faceplate, Orion Studio has a ton of new features inside its powerful Control panel and FPGA engine.
Just like Zen Tour and Goliath, Orion Studio features the full array of real-time FPGA powered vintage FX. This best-selling interface also includes Antelope's traditionally stunning AD/DA conversion, powered by our very own, world-renowned 64-bit Acoustically Focused Clocking (AFC) technology for jitter management.
ORION STUDIO'S SECRET WEAPON
Custom FPGA will allow you to create and stream multiple complex mixes and process audio with zero latency.
Orion Studio's secret weapon is the extremely powerful Field-Programmable Gate Array (FPGA) device. Its massive parallel processing capabilities are far ahead of DSP chips used in similar devices. Through smart algorithms, oversampling and custom-tweaked models, the FPGA provides the lowest latency possible, allowing you to create up to four independent, zero latency mixes. Those can be easily assigned to any output including the two separate headphone outs.
Antelope Modeling Microphones

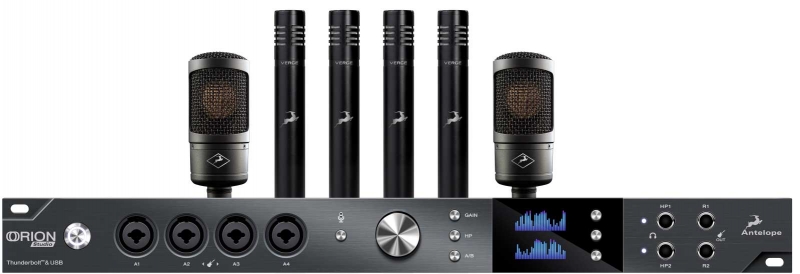

Orion Studio rev.2017 meets Edge Solo and Verge
Orion Studio Rev. 2017 is the latest revision of one of Antelope Audio's most renowned interfaces. It comes with extended mic pre-count and an always growing selection of mic emulations and authentic FX models of vintage studio gear. Bundle it with the versatile Edge Solo & Verge to be well-suited for any recording scenario.
Edge Solo & Verge are two of Antelope Audio's powerful modeling microphones that combine outstanding modeling potential with fast and user-friendly workflow. Bundled with the Orion Studio rev.2017 interface they make for a perfect and versatile recording setup. The bundle gives users access to an exquisite collection of vintage mic emulations and authentic FX models of legendary studio gear.
Edge Solo is a single-capsule large-diaphragm mic by Antelope Audio, specifically designed to recreate the true sound of a multitude of vintage cardioid-pattern microphones. For maximum accuracy, Edge Solo can be used with any of Antelope Audio's mic preamp-equipped interfaces, whose built-in FPGA processing capabilities allow real-time vintage mic emulation.
Verge is a small diaphragm modeling microphone suited for both nuanced accuracy and high SPL recording. Also exhibiting excellent performance on its own, it can take on the character and personality of the world's best small diaphragm condensers and electrets.
Analog Inputs6 x Mic / Line Inputs2 x Mic / Line / Hi-Z Inputs
1 x Monitor Out on TRS 1/4 Jacks, +20 dBu max1 x ReAmp Out on TRS 1/4 Jacks1 x Line Outs on DB25, +20 dBu max2 x Stereo Headphone Outputs
EIN: -128 dBu (A-weighted)Dynamic Range: -121 dB (A-weighted)THD: -106 dBMax input: +18 dBu Gain Range: 65 dB
D/A Monitor Converter
Dynamic Range: 124 dBTHD + N: -101 dB
Dynamic Range: 121 dBTHD + N: -112 dBD/A Converters (Line Out)Dynamic Range: 121dB THD + N: - 100dB
Digital Inputs 2 x ADAT (up to 16CH)1 x S/PDIFDigital Outputs 2 x ADAT (up to 16CH)1 x S/PDIFUSB 2.0 I/OUSB 2.0 Type B connectorThunderbolt Thunderbolt connector
Word Clock Input 1 x Input @ 75 Ohms 3Vpp on BNC 32 - 192kHzWord Clock Outputs3 x Outputs @ 75 Ohms 3Vpp on BNC 32 - 192kHzClocking System4th Generation Acoustically Focused Clocking64-bit DDSSample Rates (kHz)32, 44.1, 48, 88.2, 96, 176.4, 192
Operating Temperature0-50°C, 32-122°FWeight (Approx) 3.0 kg/ 6.61 lbsDimensions (Approx)Width: 483 mm / 19"Height: 44 mm / 1.7"Depth: 220 mm /8.6"Power Consumption 20 Watts
Microphone type: Condenser microphoneDiaphragm: Large condenser, single-sided 6 gold-sputtered membraneDiaphragm diameter: 34mmPolar pattern: Cardioid (fixed)Freq. response: 20HZ ~ 20KHZSensitivity: -35dB | 18mV/Pa (-1 to +3dB)THD+N: -116dBSelf-noise: 19dB(A)SNR: 75dB(A)Output impedance: 50 Ohms @ 1kHzPower requirements: 48V DC Phantom PowerOutput connector: 5-pin male XLRColor: Black matteBreakout cable: Not included (standard 3-pin XLR cable)Mount: Not includedCase: Standard small suitcase
Diaphragm: Condenser (back electret type)Freq. response: 40Hz ~20kHzSensitivity: -40dB (+/-3dB)Max input SPL: 146dBPower Requirements: 48V DC Phantom Power
