Sorry, the product Antelope Audio Platinum 10M Bundle is not available anymore on Studio Economik's website.

Interested in other Recording Hardware products?

Do you want to see other Antelope Audio products?

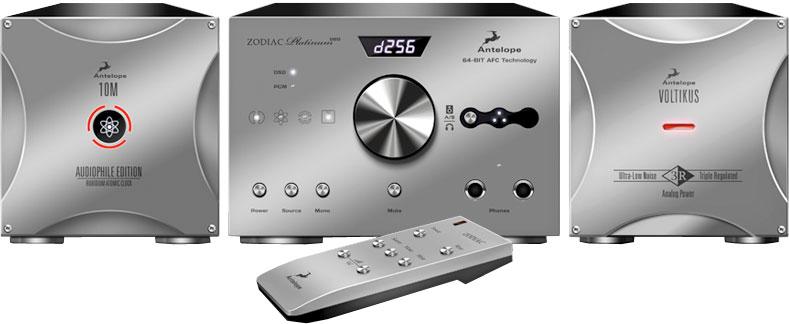

The Antelope Zodiac Platinum DSD DAC offering the audiophile community the most comprehensive top-end DSD and PCM sample rate with 2nd generation Voltikus PSU and a Antelope 10M.

The Zodiac Platinum DSD DAC supports up to DSD128 (Double-DSD) and 384kHz, 24-bit streaming to a custom-designed, ultra-low jitter USB connection, as well as AES/EBU, S/PDIF, and TOSLINK PCM support.

The DSD features include a unique 256X upsampling mode where DSD64 and DSD128 are upsampled to DSD256, thereby releasing the true potential of DSD - delivering new standards in accuracy, transparency, imaging, and dynamics. The unit compliments the high-resolution PCM inputs with switchable 64-bit precision 8x linear phase upsampling using a dedicated FPGA and Independent dual DACs per channel to eliminate crosstalk and improve dynamic range and linearity.

Signature Antelope clocking
The foundation of the Zodiac Platinum is the renowned 64-bit, Acoustically Focused Clocking and the ultra-low jitter oven-controlled crystal oscillator, which stand as a guarantee of unprecedented sound quality - used by the best recording, mastering, and post production studios around the world. In addition, the Platinum is equipped with a 10MHz input for the legendary Antelope 10M Rubidium atomic clock, providing the most accurate and stable clocking reference, and uncompromising digital to analog conversion.

Distinctive pedigree and highly evolved technology
Zodiac Platinum has inherited the stepped relay volume control and the dual-stage headphone drivers with impedance control from its very successful predecessor, the Zodiac Gold. It also comes with supplied with the 2nd Generation Voltikus external audiophile grade power supply and an elegant remote control.
Free PC, Mac, and mobile control software is available for total control of the Zodiac.
Widest DSD support
  • Support for DSD64, DSD128, via USB (DoP) and a unique DSD upsampling mode to DSD256.
  • Direct-To-Analog DSD conversion
  • The Zodiac Platinum converts DSD directly to analog for optimum performance - it does not convert to PCM then on to Analog as others do.
  • DSD Upsampling
  • The unique DSD upsampling mode from DSD64 and DSD128 to DSD256 takes advantage of lower-order modulators and gentler noise reduction filters for the purest possible reproduction... All the detail that DSD is capable of.
  • Acoustically Focused Clocking technology
  • Antelope AFC with 64-bit DSP, backed by an ultra-low jitter, oven-controlled crystal oscillator for detailed and focused sound.
  • New Voltikus PSU Included
  • Antelope's 2nd generation, triple regulated power supply with integrated power line filtering, new high-performance power cable, and precision locking power connection.
  • Auto-update
  • Automatic, internet-based device updates
  • Highest sample rates
  • An Antelope-designed custom USB chip offers ultra-low jitter and streaming support for up to DSD128 and 384kHz PCM - four times higher than similar devices.
  • FPGA PCM Upsampling
  • For natural detail and stunning stereo imaging even in PCM mode, switchable 64-bit precision 8x linear phase upsampling using a dedicated FPGA (Field Programmable Gate Array)
  • Quad DAC architecture
  • Independent dual DACs per channel to eliminate crosstalk and improve dynamic range and linearity.
  • Precision Relay Control
  • Fast, quiet, precise, and dedicated stepped relay attenuators for left and right outputs - accurate to 0.05dB. Relay-based Input and output trims with front panel control.
  • Atomic Clock Input
  • Direct connection for the 10M - Antelope's 10MHz Rubidium atomic master clock for the ultimate reference, ultimate quality, and ultimate imaging.
  • Aluminum IR remote
  • Main volume, headphone volume
  • Dual, variable impedance headphone outputs
  • Headphone outputs are relay-based, fed by dual-stage drivers with impedance control.
  • Zodiac Control Panel
  • Control application for Mac, PC, Linux and mobile platforms gives full access to Zodiac functionality.
  • Specifications
  • 2x 1/4" TRS headphone outputs
  • Balanced, trimmable analogue XLR left/right outputs
  • Unbalanced, trimmable analogue RCA left/right outputs
  • Balanced, trimmable analogue 1/4" TRS left/right inputs
  • Unbalanced, trimmable analogue RCA left/right inputs
  • AES/EBU digital input (PCM up to 192kHz, 24-bit)
  • 2x S/PDIF Coaxial inputs (PCM up to 192kHz, 24-bit)
  • 2x optical TOSLINK inputs (PCM up to 192kHz, 24-bit)
  • USB - standard B-type connector (Up to DSD128, PCM 384kHz, 24-bit)
  • 10Mhz Atomic clock / word clock BNC input
  • De-jittered AES/EBU output (PCM up to 192kHz, 24-bit)
  • 2x de-jittered S/PDIF Coaxial outputs (PCM up to 192kHz, 24-bit)

  • In The Box
  • Audiophile 10M Atomic Clock
  • Power cord
  • Owner's manual
  • Warranty card
  • Custom BNC cable

  • Dimensions
  • Width: 166 mm/6.5"
  • Depth: 193 mm/7.6"
  • Height: 112 mm/4.4"
  • Weight 1.4 kg/ 3.1 lb
