Sorry, the product Antelope Audio Voltikus is not available anymore on Studio Economik's website.

Interested in other Recording Hardware products?

Do you want to see other Antelope Audio products?
Information

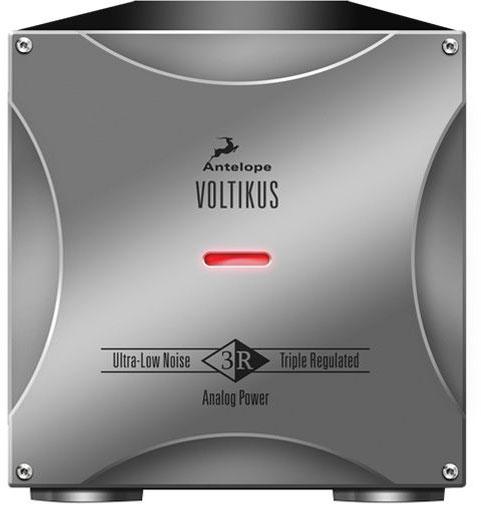

The Voltikus is a sleek heavy-duty Power Supply Unit (PSU) designed to perfectly match your Zodiac DAC. Audiophile grade ultra low noise power supply


Carefully tailored to deliver uncompromised power, Voltikus helps Zodiac achieve the punch and sonic richness of deep lows, a full range of mids, and tightly defined highs. This degree of performance is accomplished by incorporating a hefty, custom-wound, electrostatically shielded toroidal transformer followed by a unique concept of three cascaded power regulators.
Features
  • Audiophile grade PSU perfectly matching Zodiac Platinum DSD in aesthetics and performance
  • Unique multi-stage linear regulator topology achieves vastly superior stability
  • Toroidal transformer with custom electrostatic shield suppresses power line disturbances
  • Ground / Lift switch helps eliminate hum and buzz caused by ground loops
  • Wide (90-250V) input voltage range ensures dependable operation under varying line conditions
  • Advanced discrete design dispenses with the need for noisy off-the-shelf voltage regulators
  • Robust sturdy construction with custom machined aluminum front panel
  • Specifications
  • Input Power: Nominal: 100-120/220-240 VAC, 50 or 60 Hz, Actual: 90-264 VAC, 50 or 60 Hz
  • Fuses: 0.5A 250V Type T, 5 mm x 20 mm
  • Input Power Cord: 3-Wire grounded / Lifted option
  • Terminals: C14 panel mounted male connector (inlet)
  • Output: Voltage: 18 VDC, Power (maximum): 18 W, Terminals: Precision locking power connector
  • Overload/short circuit protection: Automatic power limit / short circuit protection
  • Input Line Protection: Fuse on both hot and neutral
