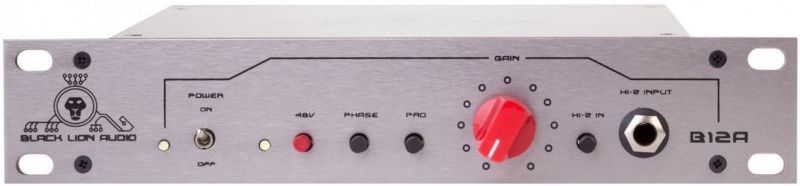

Black Lion Audio B12A
Inspired by the classic American rock sound of the original API 312A, the B12A MkII delivers the high-end sound and rugged quality you’d expect from B.L.A., at an amazing price! The B12A MkII is a single-channel microphone preamp in the style of an API 312A, and features an upgraded input transformer, higher gain, and lower noise than the original B12A. It also features an output transformer, a Hi-Z input, phantom power, pad, phase, and is housed in a 1U, 1/2 rack chassis.
Features
  • Cinemag Input Transformer
  • Edcor Output Transformer
  • 70dB Gain
  • Hi-Z Input (passive, unbalanced)
  • Phantom Power
  • 10dB Pad
  • Phase Switch
  • XLR Microphone Input
  • TRS Line Output (balanced)
  • Specifications
    Mic Section
  • Max Microphone Input Level: +1dBu
  • Input Impedance: 200
  • Pad: 10dB
  • Gain (no pad): +26dB to +70dB
  • Equivalent Input Noise (noise floor): -120dB
  • THD+N:

  • .01% @ +26dB Gain

  • .011% @ +40dB Gain

  • .049% @ +60dB Gain

  • .15% @ +70dB Gain
  • Bandwidth (1kHz, 150 source, unweighted): 10Hz to 30kHz

  • D.I. Section
  • Max D.I. Input Level: +18dBu
  • Input Impedance: 500k
  • Pad: none
  • Gain: +10dB to +53dB
  • Equivalent Input Noise (noise floor): -102dB
  • THD+N:

  • .008% @ +10dB Gain

  • .01% @ +25dB Gain

  • .03% @ +40dB Gain

  • .14% @ +53dB Gain

  • Bandwidth (1kHz, 600 unbalanced source, unweighted): 10Hz to 30kHz

  • Output Section
  • Max Output Level: +28dBu
  • Output Impedance: 600
  • Power Supply: 24VAC, 500mA External Supply
  • Product Dimensions: 9.5” x 6.5” x 1.75”
  • Product Weight: 3.2 lbs
  • Shipping Dimensions: 13” x 11” x 5”
  • Shipping Weight: 5.5 lbs
  • Reviews
    Price *

    $789.00
    Special
    $592.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the B12A, please visit the website of Black Lion Audio
