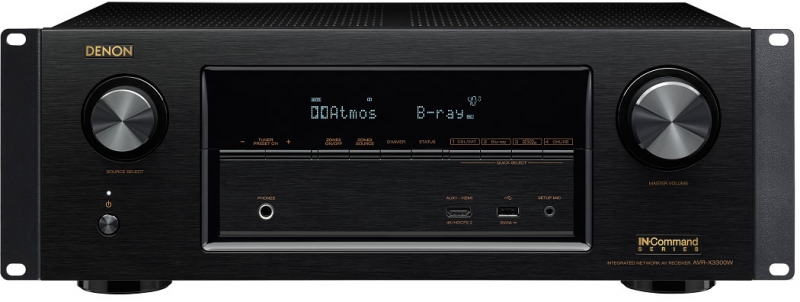

The DN-AVRX3300 is a 7.2ch AV Surround Receiver with Wi-Fi, Bluetooth and Ethernet Connectivity
The DN-AVRX3300 7.2ch surround AV receiver features Dolby Atmos decoding for the ultimate immersive audio experience. The 4k/60Hz full-rate pass-through, built-in dual-band Wi-Fi and Bluetooth, and 105W per channel speaker outputs make this powerhouse the perfect audio and video receiver. Connect to your internal network via the RJ-45 Ethernet LAN port and enjoy streaming services such as Spotify, Pandora and SiriusXM - and also choose from thousands of global Internet radio stations. AirPlay enables wireless connectivity from iPod Touch, iPhoneand iPad.
7.2 channel AV Receiver with 105W per channel (8ohms, 20Hz - 20kHz with 0.08% T.H.D.)Built-in Wi-Fi with 2.4GHz/5GHz dual band support; built-in Bluetooth4K/60 Hz full-rate pass-through, 4:4:4 color resolution, HDR and BT.20208 HDMI inputs (incl. 1 front) with full HDCP 2.2 support; 2 HDMI outputsDolby Atmos (up to 5.1.2) and DTS:X (via firmware update)Advanced Multi-Room options; 7.2ch Pre-out; RS232 ControlAirPlay, Bluetooth, Internet Radio, Spotify Connect, Pandora, SiriusXMNetwork Audio Streaming
Number of Power Amps
7 (Front L/R, Center, Surround L/R,Surround Back L/R)
Power Output
215 watts per channel (maximum power output per channel)
135 watts per channel (6 ohms, 1 kHz, THD 0.7%, 2ch driven)
105 watts per channel (8 ohms,20 Hz - 20 kHz, THD 0.08%, 2ch driven)
Speaker impedance: 4-16 ohms
Preamplifier Section
Input sensitivity: /impedance 200 mV / 47 kohms
Frequency response: 10 Hz - 100 kHz - +1, -3 dB (DIRECT mode)
S/N Ratio: 100 dB (IHF-A weighted, DIRECT mode)
FM Section
Tuning frequency range: 87.5 - 107.9 MHz
AM Section
Tuning frequency range: 520 kHz - 1710 kHz
General
Power supply: AC 120 V / 60 Hz
Power consumption: 600 W (Standby 0.1 W, CEC standby 0.5 W)
Power consumption: No-Sound 45 W (ECO on), 80 W (ECO off)
Dimensions: (W x H x D) 17.1 x 15.3 x 6.6 inches (434 x 389 x 168mm) (without rack ears)
Weight: 23.8 lbs. (10.8kg) (without rack ears)
IN
HDMI (Front 1) x 6
Component (video) x 2
Analogue Audio x 5
Digital Optical / Coaxial x 2 / x 2
USB (front) x 1
OUT
HDMI Monitor / Zone 2 x 1 / x 1
Composite Monitor x 1
Audio Preout (SW) 7.2 ch
Zone 2 Preout 2.0 ch
Phones x 1
OTHER
Ethernet x 1
Setup Microphone Port x 1
FM Tuner Antenna x 1
AM Tuner Antenna x 1
RS232 /12 V Trigger out x 1 / x 1
