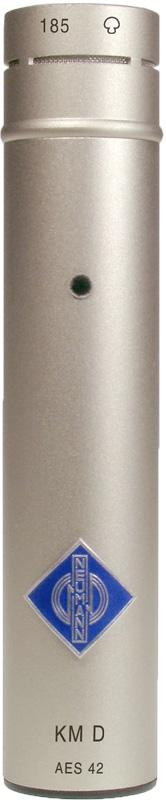

Neumann KM 185 D

This hypercardioid KM185 microphone is the pure Neumann sound in the digital domain, for use with AES/EBU, AES 42 or S/PDIF. The signal is converted directly at the capsule.

The Neumann MK 185 D has a pressure gradient transducer with hypercardioid characteristic. Attenuation of sound incidence from the side or rear is approximately 10 dB. Minimum sensitivity occurs at an angle of about 120°

The Neumann KM A / KM D Miniature Microphone System
The modular KM A / KM D miniature microphone system is a further development of the successful KM 100 series. The newly developed passive capsule design is available with 8 different directional characteristics, and can be combined modularly as desired with an analog (KM A) or digital (KM D) output stage in accordance with the AES 42 standard. The new, considerably smaller microphone capsules and an extensive program of accessories permit excellent adaptation of the microphone system to a wide range of applications.

Through the use of the most up-to-date electronic components the system offers many electroacoustic and operational advantages, such as lower self-noise, a wider dynamic range and very high immunity to electromagnetic interference. The acoustics of the capsules were taken from the proven KM 100 system.

Overview of Microphone Capsules
KK 120: Figure-8
KK 131: Omni (free-field equalized pressure transducer)
KK 133: Omni (diffuse-field equalized pressure transducer/capsule including titanium diaphragm with exceptional acoustic properties)
KK 183: Omni (diffuse-field equalized pressure transducer)
KK 143: Wide-angle cardioid
KK 145: Cardioid with acoustic bass roll-off in free field
KK 184: Cardioid
KK 185: Hypercardioid

KM A/KM D Output Stage
The KM A analog output stage with P48 phantom power has a switch for pre-attenuation of 10 dB. The microphones can thus handle levels of up to 152 dB (depending on the capsule type). The KM D digital output stage converts the signal from the capsule directly into a digital signal. The result is an AES/EBU signal with 24 bits and a large dynamic range. The integrated digital signal processor (DSP) permits remote control of the microphones, including the digital gain, pre-attenuation (6 dB, 12 dB or 18 dB) and low-cut filter (0 Hz, 40 Hz, 80 Hz or 160 Hz). An integrated peak limiter and compressor/limiter with additional de-esser function prevents any overloading of the audio signal.

The dimensions (diameter 22 mm, length 93 mm) of the analog and digital output stages are identical. As a result, all accessories can be used in combination with both output stages.
Upon request, a mechanical adapter can be supplied to adapt microphone capsules of the KM 100 system (AK series) to the KM A and KM D output stages.

The modular solution permits the microphone capsule to be separated from the output stage by a distance of up to 100 m. The LC 4 microphone cable with a length of 5 or 10 meters is available as a standard solution. Alternatively, capsule extensions of different lengths, swivel joints and stand mounts, etc., can be used for a flexible system setup.

The capsule heads KK 183, KK 184 or KK 185, together with the appropriate output stage, are also available as a set, in which case they are referred to as KM 183 A, KM 183 D, etc.
  • Miniature microphones with 8 exchangeable capsules, compatible with the analog miniature microphone system KM A
  • Set includes windshield and clamp
  • Extensive accessories
  • TRUE NEUMANN SOUND: The legendary Neumann sound in the digital realm.
  • Pure Neumann capsule sound.
  • TRUE TO THE ORIGINAL: The satisfaction of recording the uncolored original, with no "bottlenecks" between the capsule and the recording system.
  • TRUE CONVERSION: The guarantee of having one of the best
  • A/D converters available.
  • TRUE HANDLING SAFETY: Anti-clipping processing ensures handling safety, and reduces stress.
  • TRUE TIME SAVINGS: Reduced time requirements and personnel costs, particularly due to faster post production processing.
  • TRUE ECONOMY: Lower investment costs, since separate A/D converters and preamps are no longer needed. This also means space and weight savings (e.g. in the OB van).
  • Specifications
  • Acoustic transducer: KK 185 (known from Series 180)
  • Directional characteristic: Hypercardioid
  • Frequency response: 20 Hz to 20 kHz
  • Free-field sensitivity1) 2): -42 dBFS
  • Equivalent noise level, CCIR3): 25 dB
  • Equivalent noise level, A-weighted3): 16 dB-A
  • Signal-to-noise ratio2), CCIR3): 69 dB
  • Signal-to-noise ratio2), A-weighted3): 78 dB
  • Maximum SPL at 0 dBFS: 136 dBSPL
  • Sampling rates: Preset: 44.1, 48 or 96 kHz (with DMI-2 switchable: 44.1/48/88.2/96/176.4/192 kHz)
  • Preset Gain: 10 dB (variable with DMI-2)
  • Current consumption: max. 150 mA
  • Weight: Approx. 88 g
  • Diameter: 22 mm
  • Length: 108 mm

  • 1) at 1 kHz
    2) re 94 dBSPL
    3) according to IEC 60268-1;
    CCIR-weighting according to CCIR 468-3, quasi peak;
    A-weighting according to IEC 61672-1, RMS
