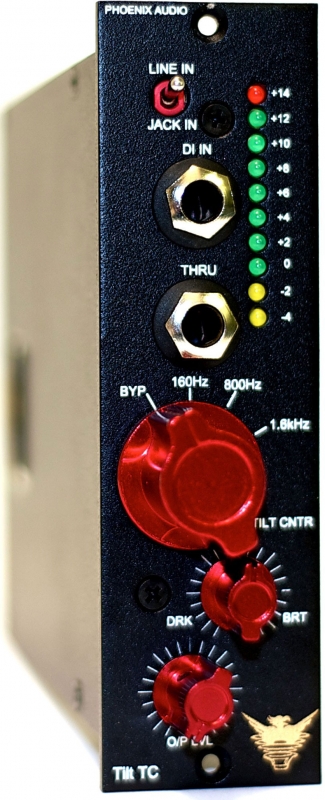

This is a 500 series channel strip featuring a balanced line level signal processor using our class A discrete buffer amp from the Nicerizer summing, 10meg ohm DI & a 'see-saw' EQ
Pivot TC/500 uses a powerful tone control pivot position EQ , a unique 3 position 'see-saw' EQ with 3 carefully selected pivot positions to cover low frequencies at 160hz, mid frequencies at 800hz and high frequencies at 1.6khz. A dark/bright shaping control, allows you to 'see-saw' the EQ to darken your mix (add LF) or brighten the mix (add HF).
There is a also a 10 position LED metering that accurately represents the output level.
The unit can also be used in bypass mode, the ouput control can be driven bringing in the Class A discrete output circuitry and output transformer to add analogue colour and saturation to any source, and a pair of units would be excellent on a mix bus or mastering.
Class A Discrete input line buffer ampClass A Discrete 10meg ohm DI inputClass A Discrete output ampPhoenix custom output transformerUnique 3 position pivot point sloping EQControllable LF, MF & HF pivot positionsDark & bright tone control
Class A Stereo DI Output specs.Frequency Response: 20Hz to 20Khz +/- 0.5dBMaximum Output: +26dBu @ 1KhzNoise: 90dB @ 22Hz to 22KHzClass A, discrete, truly balanced transformerless input stage.The Class A DI has a very high input impedance (10Mohm), without the use of FET's. This means that the guitar pickups are not loaded as with a lower impedance input, and so allows every transient to be reproduced, making even a cheap guitar sound exceptionalInputs: 1/4" jack (TS) input & through input on the front panelTransformer isolated balanced output (XLR) on the rear panelEQ with 3 fixed pivot positions: 160hz, 800hz & 1.6khzDark/bright tone control10 position LED output meteringOutput level control
