ASD-120 2.0

charge totale de 120 ampères

Six circuits de 20 ampères et 120 volts, chacun avec un indicateur d'état

Barres omnibus surdimensionnées

La conception à quatre bus prend en charge une alimentation monophasée de 120 V ou 240 V ou triphasée de 208 V

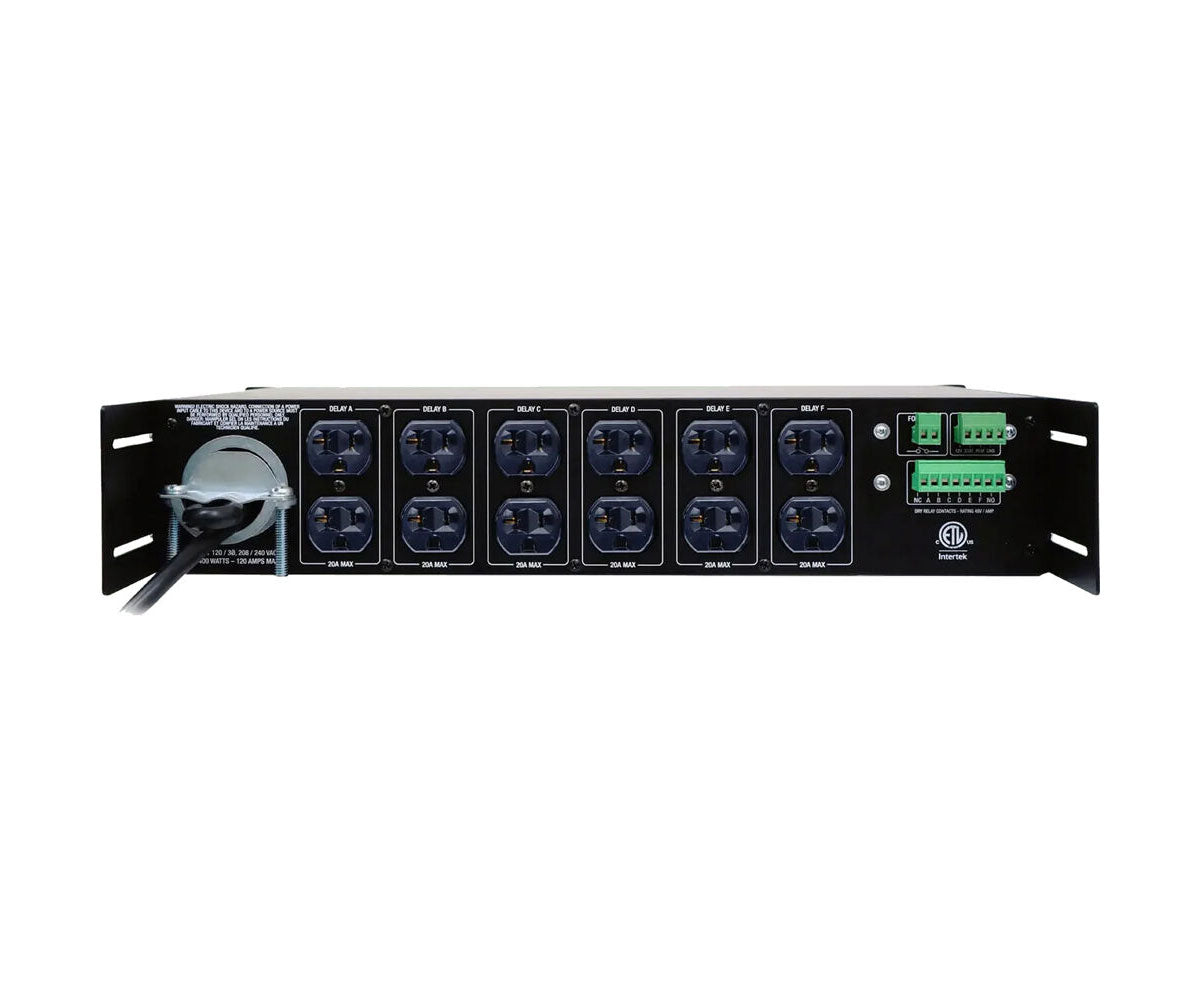

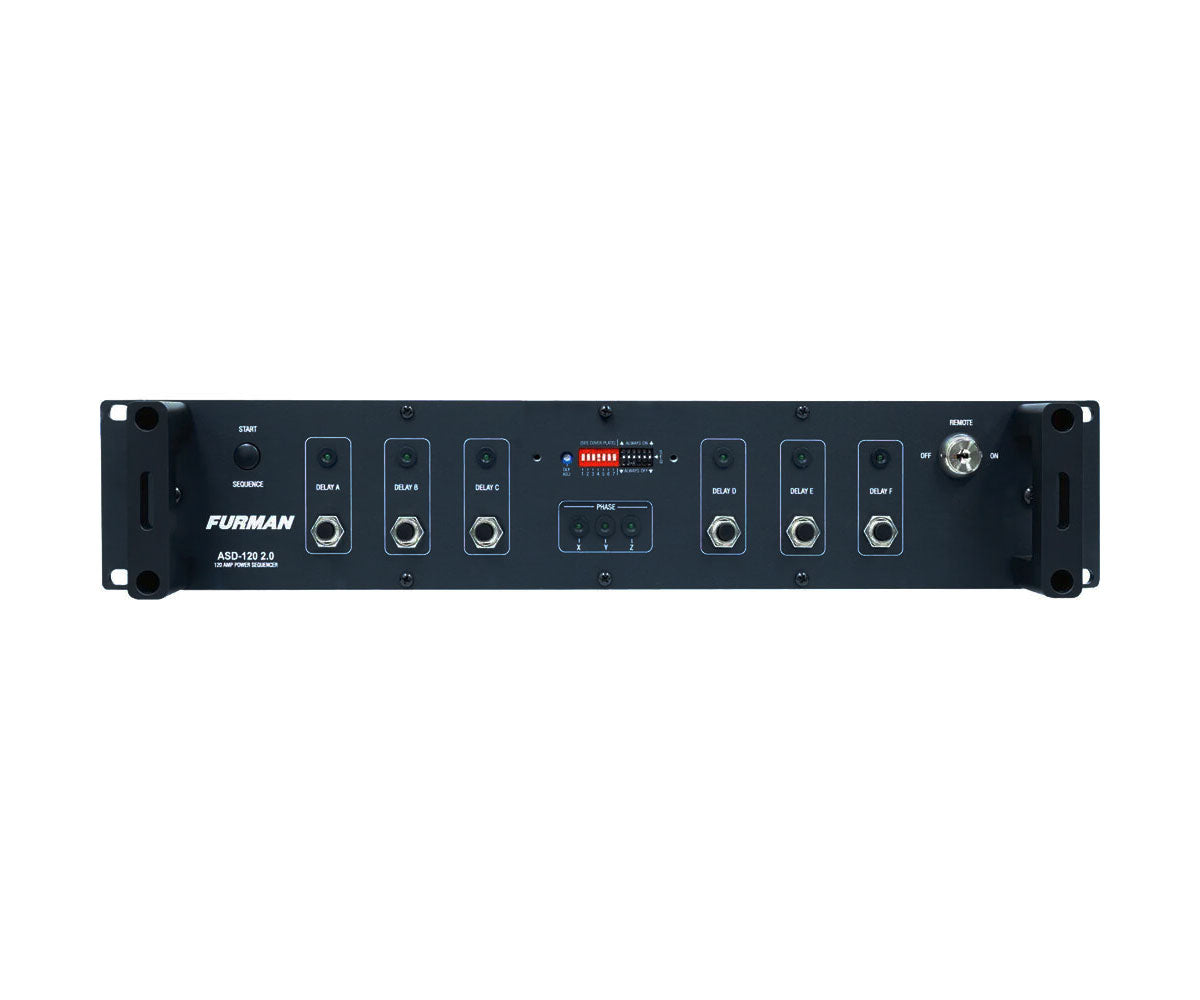

Six prises duplex largement espacées sur le panneau arrière

Les prises peuvent être allumées et éteintes en séquence

L'interrupteur à trois positions permet à chaque circuit de faire partie du séquençage d'alimentation ou d'être activé/désactivé indépendamment

La synchronisation des séquences peut être initiée à partir de l'unité ou à distance, à l'aide de câbles de commande basse tension

Des signaux de contrôle de séquence sont disponibles sur le panneau arrière pour piloter des ASD-120 supplémentaires ou d'autres appareils et circuits

Interrupteur à clé du panneau avant pour la sécurité

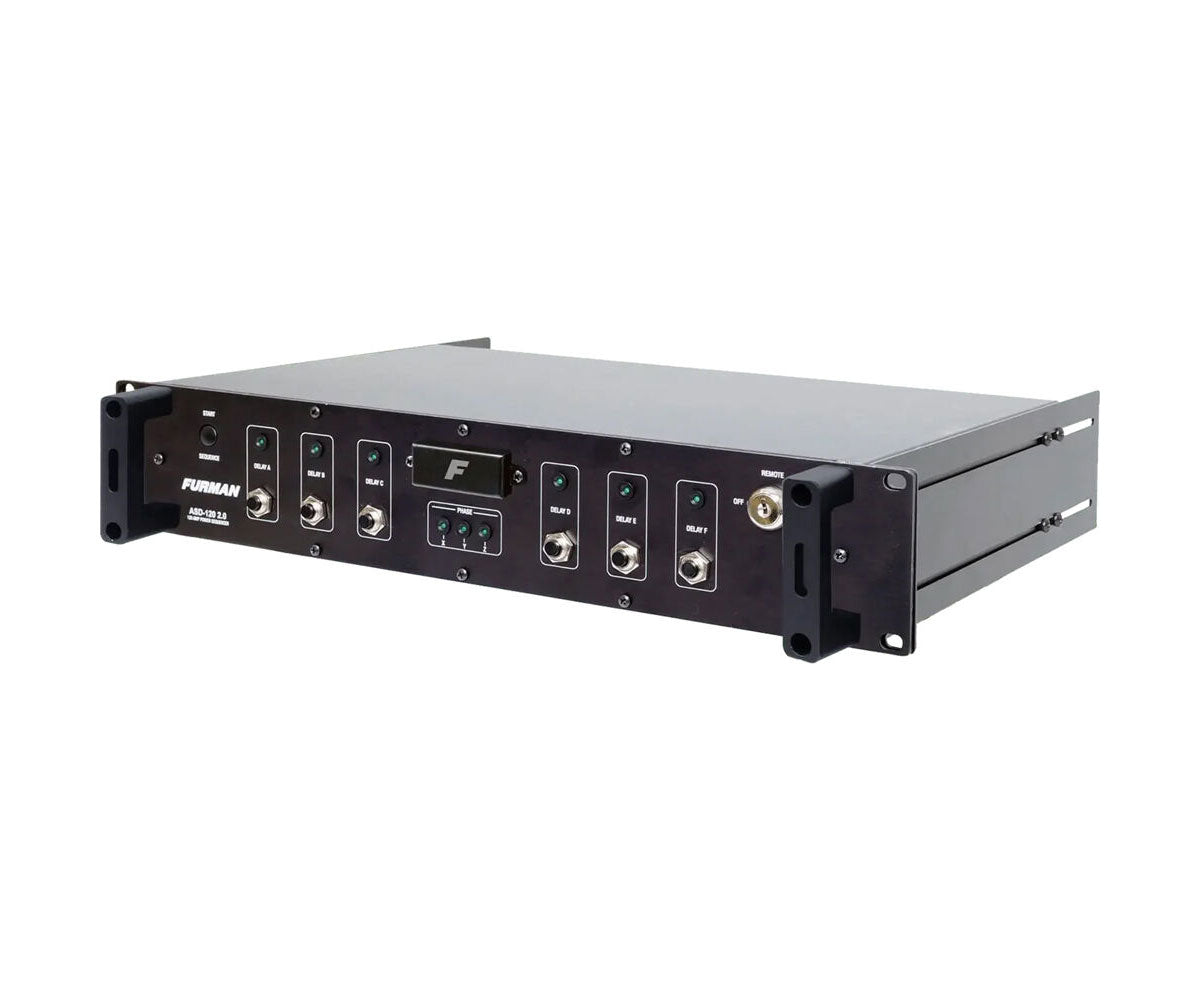

Ensemble compact à deux racks

Le produit le plus économique de son genre

General Specifications
Product: Furman ASD-120 2.0 Sequencing Power Distributor (Version 2)
Type: 6-Channel Sequenced AC Power Distributor
Rackmount Size: 2U
Material: Metal chassis
Weight: 16 lb (7.3 kg)
Dimensions (W × D × H): 19 × 10 × 3.5 in / 48.3 × 25.4 × 8.9 cm

Electrical Specifications
Input Voltage Range: 90 – 139 VAC, 50/60 Hz
Input Current Capacity: 120 A
Output Current per Circuit: 20 A
Total Output Capacity: 120 A (6 × 20 A circuits)
Wire Gauge: 6 AWG input cabling supported
Wall Plug Type: NEMA 5-15P

Output Configuration
Outlets: 12 × NEMA 5-20R (6 rear-panel duplex outlets)
Number of Circuits: 6
Sequencing Delay: Adjustable up to 7 minutes between banks (35 minutes total)
Circuit Breakers: 6 thermal breakers, 1 per circuit
Control Modes: Sequence ON/OFF, Manual ON/OFF, Bypass

Sequencing Features
Power Sequencing: 6 delay banks with independent circuit control
Adjustable Delay: Via internal trimpot
Front-Panel Key Switch: Provides locking control with anti-tamper DIP cover
Sequence Control: Local or remote initiation (momentary or maintained)
Force Off: Emergency shutdown feature
Status Indicators:
Power status LED per circuit
X, Y, Z phase LEDs for incoming power
Delay/sequence in-progress LED

Connectivity & I/O
Additional I/O:
1 × 2-pin Phoenix-type block (remote control)
1 × 4-pin Phoenix-type block
1 × 8-pin Phoenix-type block
Remote Interface: Isolated 12 VDC, 250 mA power source for external control
Relay Contacts: NO or NC signal-level control outputs for other sequencers

Power Distribution Flexibility
Power Bus Configuration: Supports 120V/240V single-phase or 120/208-Y three-phase setups
Strain Relief: Accepts up to 1.5 in diameter cable/wire bundles

Protection Features
Surge Protection: Yes
Over/Undervoltage Protection: No
Circuit Breakers: Yes (one per delay bank)
EMI/RFI Filtering: No

Included Accessories
2 × Adjustable Rear Rack Mounting Ears
2 × Security Keys
Security Cover with Two 6-32 3/8" Screws
Removable Rack Handles
1.5" Cable Clamp
2-Pin, 4-Pin, and 8-Pin Phoenix-Type Connectors

Certifications & Environmental
Certifications: FCC, RoHS
Operating Temperature: 40°F to 105°F (4°C to 40°C)
Relative Humidity: Up to 90%

Applications
Ideal for: Touring PA systems, mobile recording, broadcast video shoots, theaters, and temporary power setups
Function: Centralized AC distribution with sequential power-up/down to prevent inrush current and audio transients
