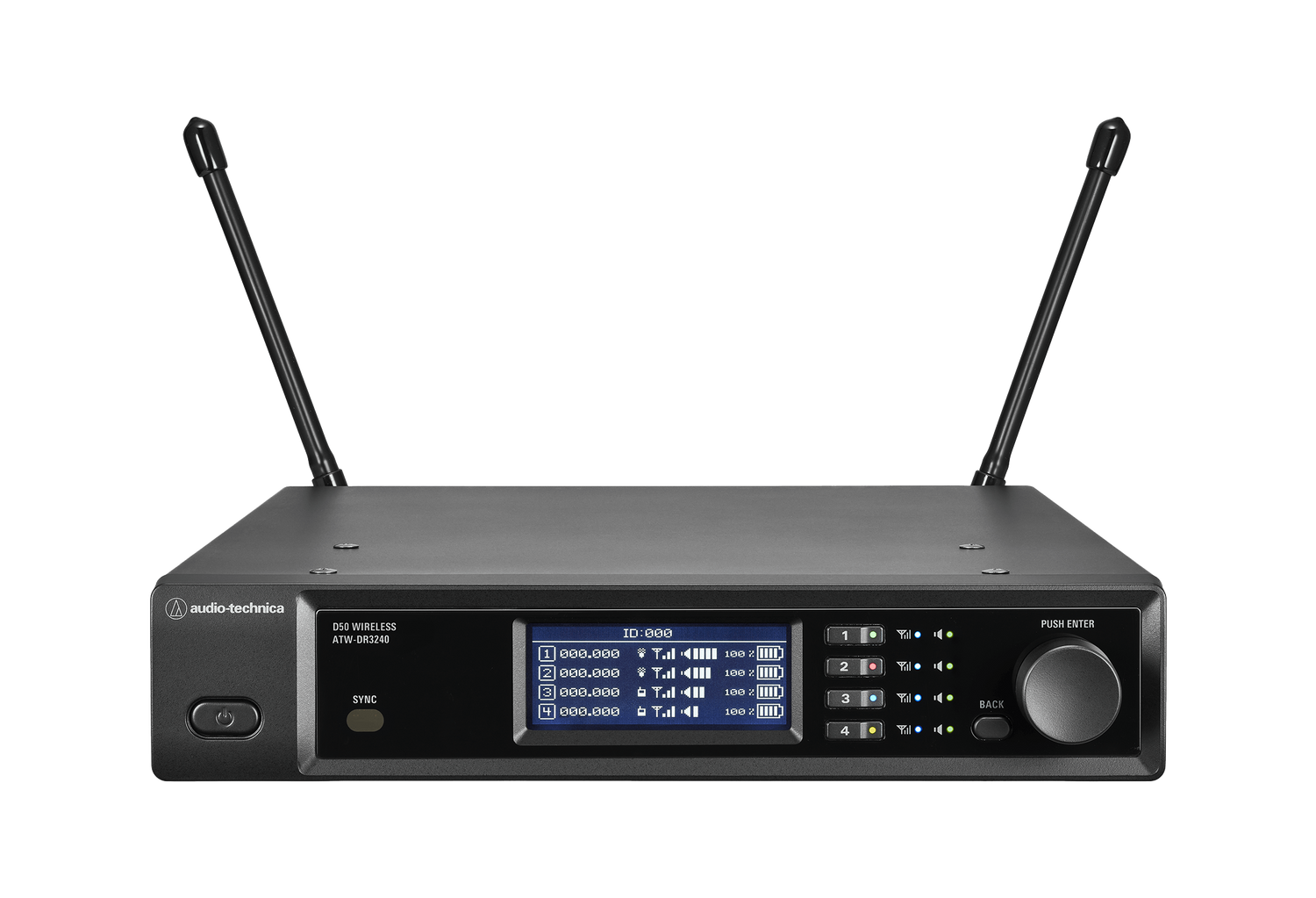

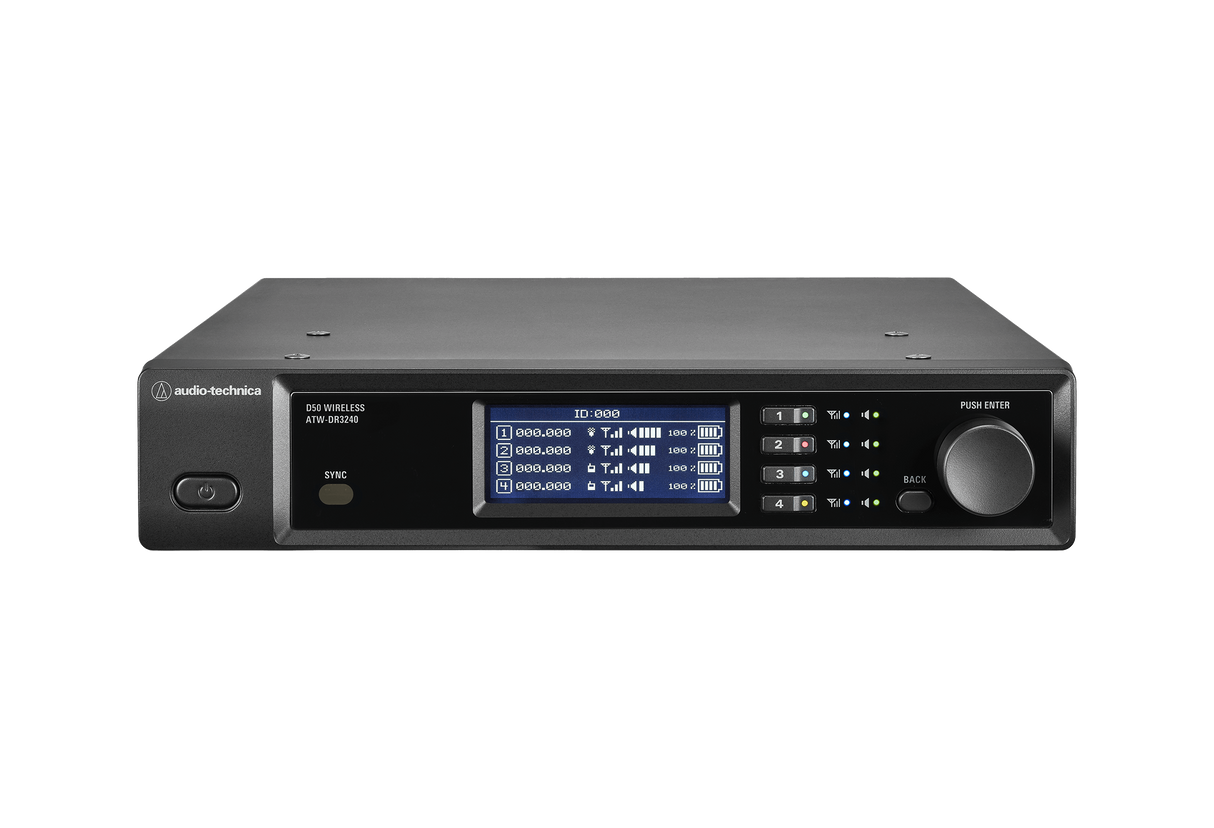

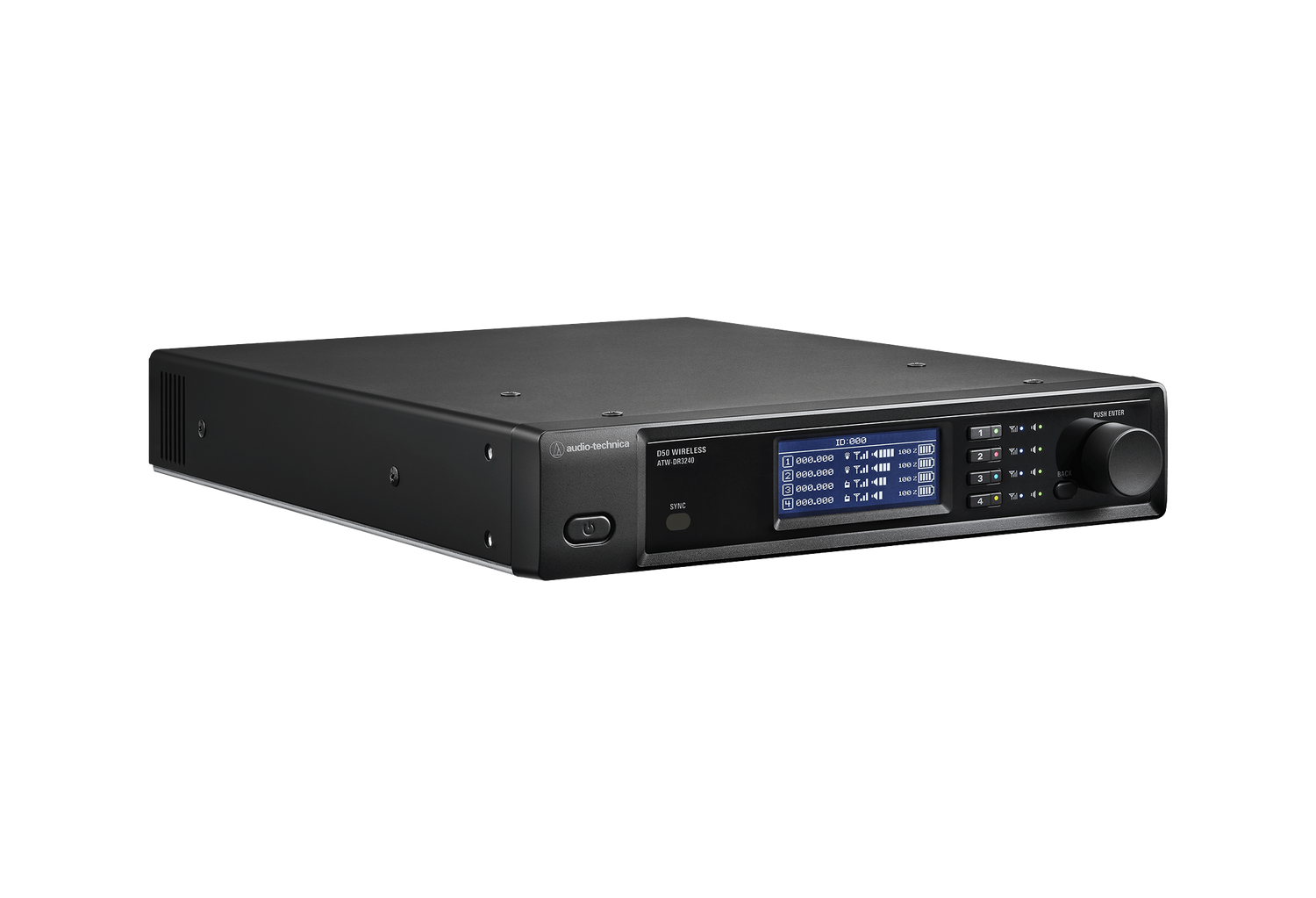

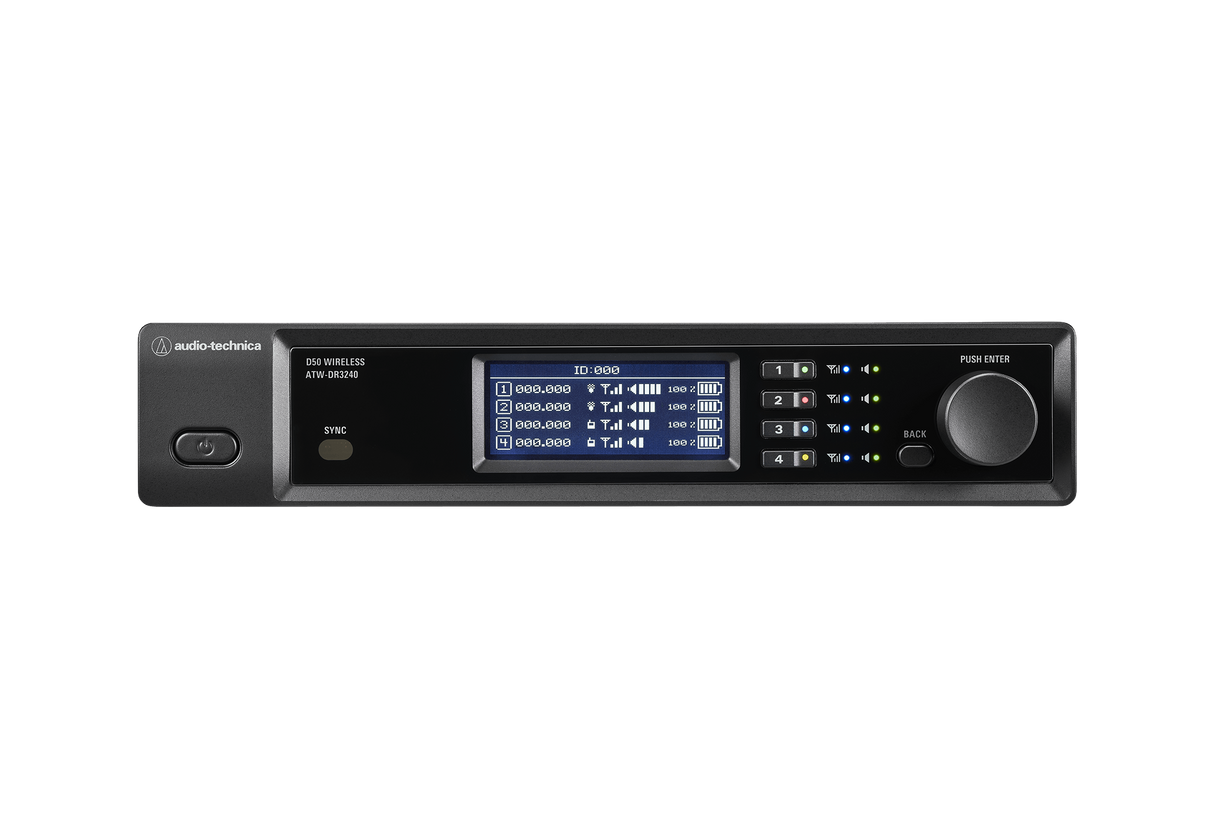

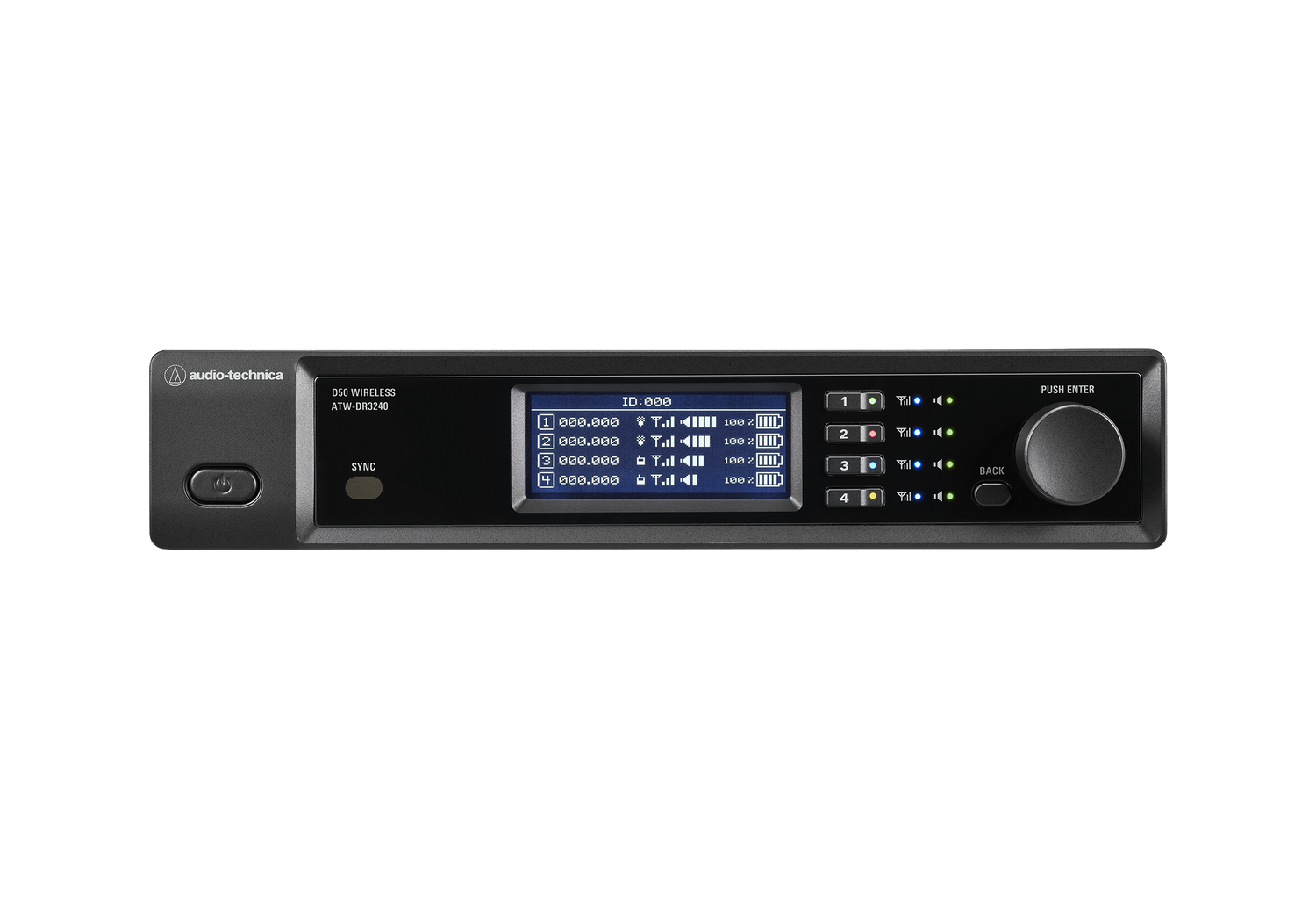

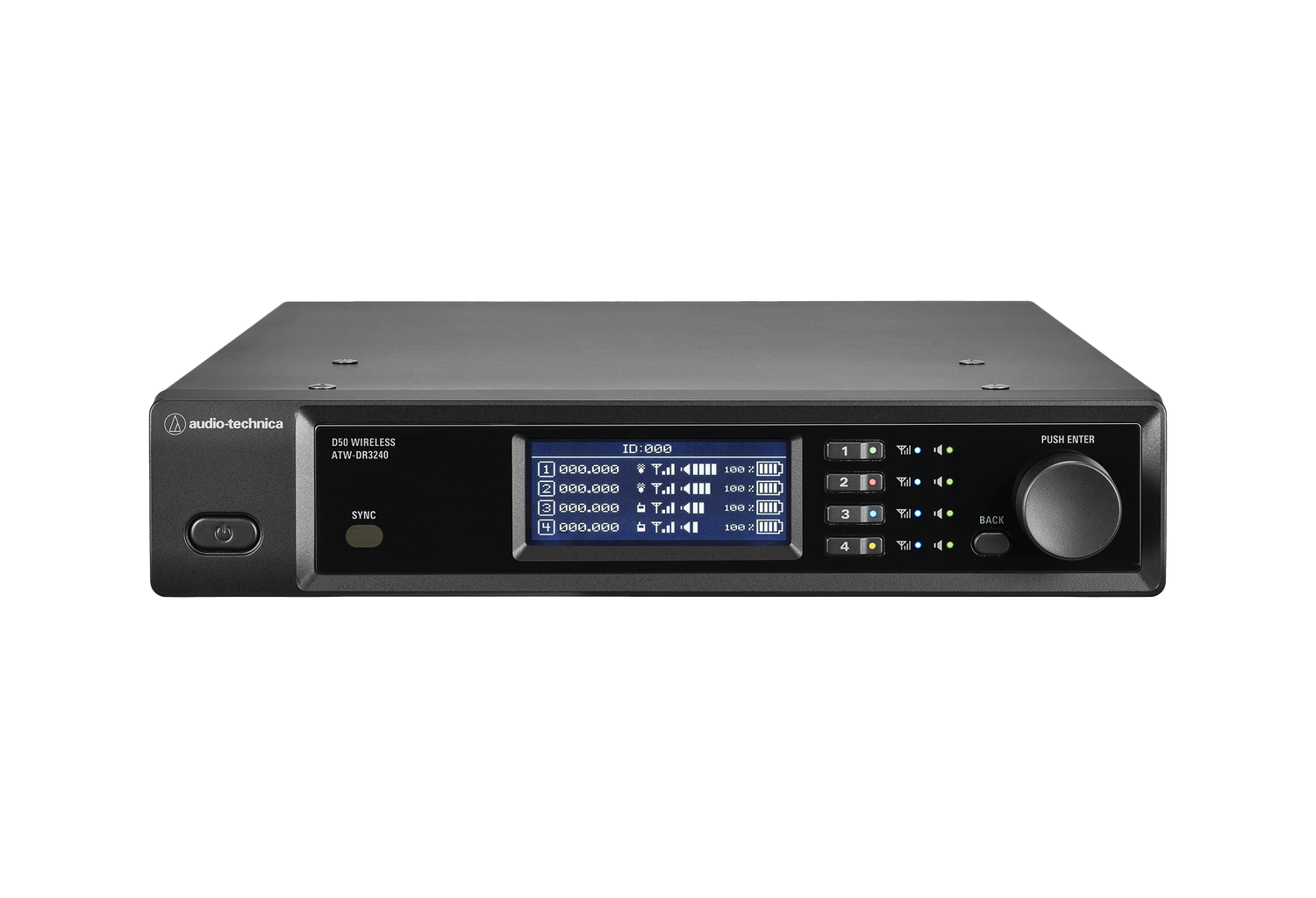

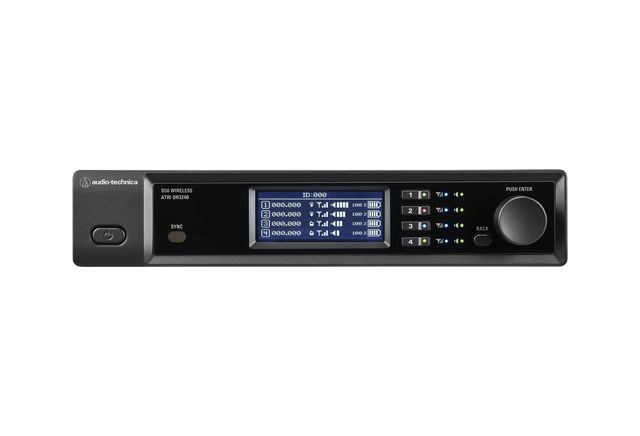

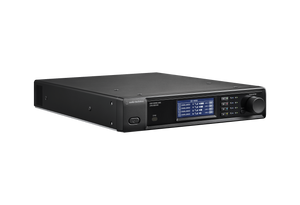

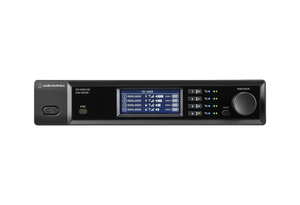

ATW-DR3240DANDF2

Four-Channel Reception
Handles four wireless audio channels in a compact half-rack enclosure.

Switchable Diversity
Choose between antenna-combining and true-diversity operation to suit the RF environment.

High-Density Operation
An alternate transmission mode supports more usable frequencies in congested locations.

Receiver Linking
Multiple receivers can share a single antenna pair for simpler system expansion.

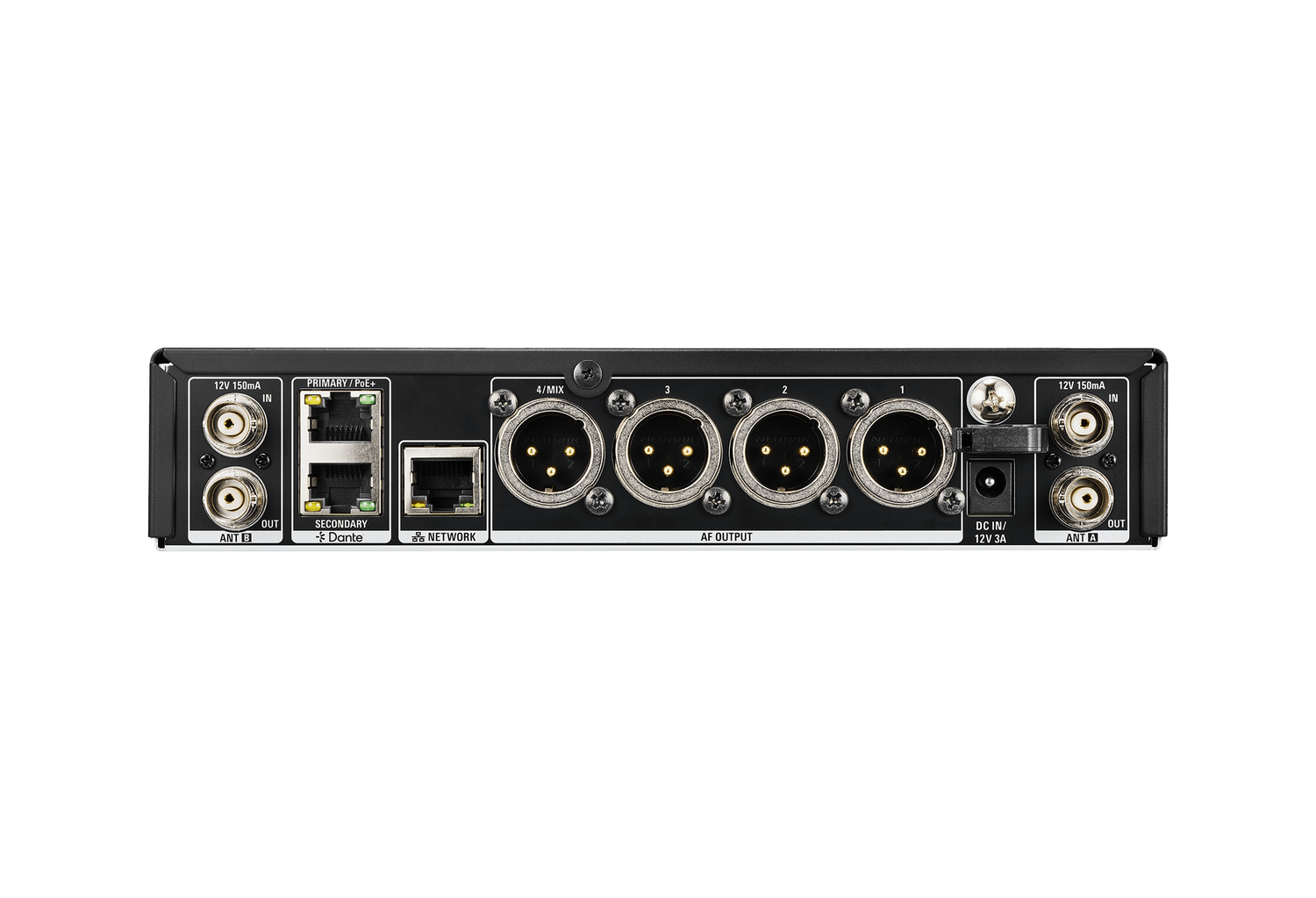

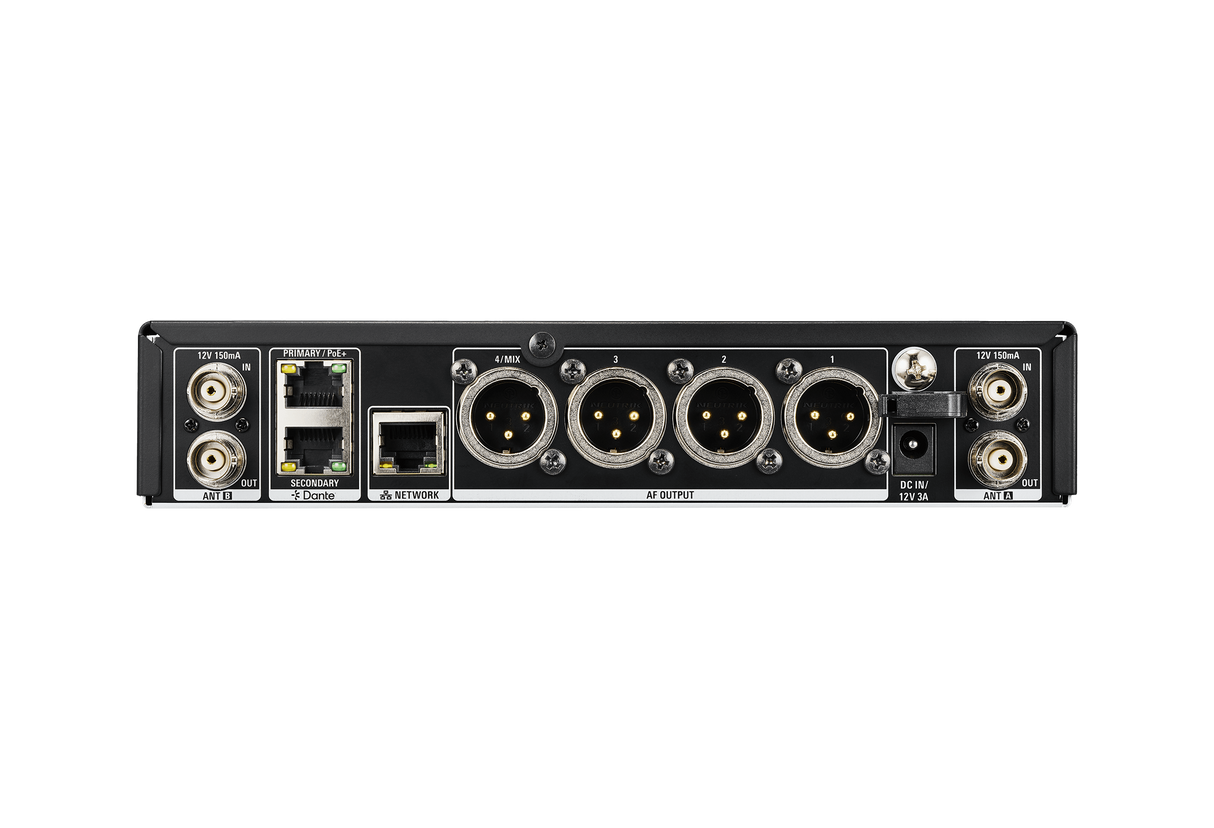

Dante Network Audio
Primary and secondary network ports support digital audio distribution, redundancy and daisy-chaining.

High-Resolution Audio
Dante connectivity supports detailed network audio for demanding production environments.

Onboard Audio Processing
Independent filtering, equalization and compression provide control over each receiver channel.

Secure Transmission
Digital encryption helps protect wireless audio from unauthorized reception.

Network Management
Wireless Manager enables remote monitoring, configuration and system control.

Multipoint Reception
Networked receivers can follow the same transmitter and select the receiver with the strongest signal.

Spectrum Analysis
Built-in scanning tools assist with frequency planning and interference detection.

Infrared Synchronization
Compatible transmitters can receive system settings quickly during setup.

Mixed Audio Output
Received channels can be combined when available input channels are limited.

Redundant Power
PoE+ can maintain operation if power from the AC adapter is interrupted.

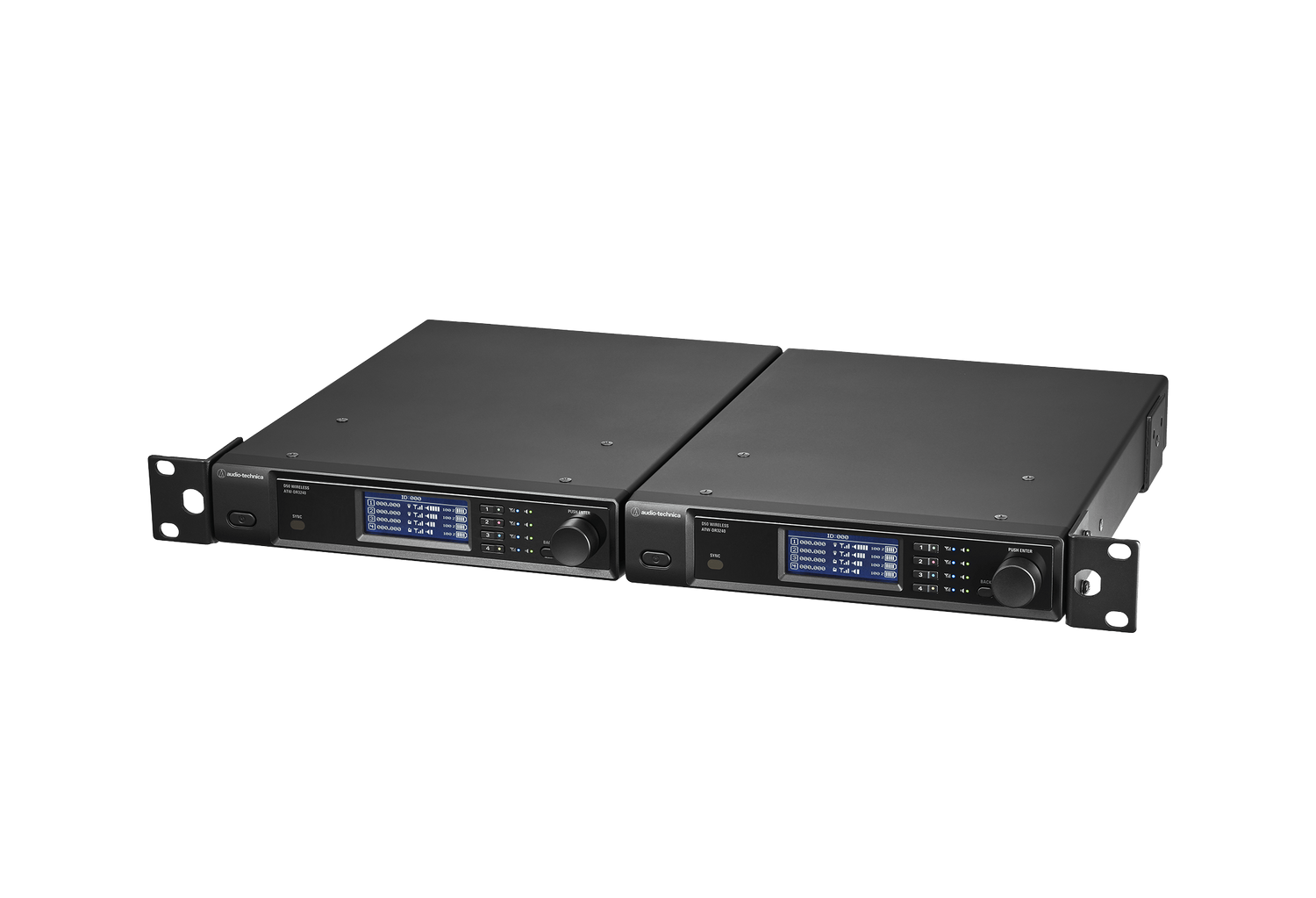

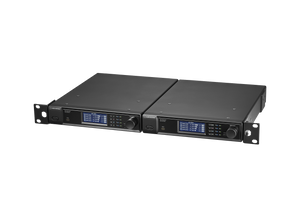

Flexible Rack Installation

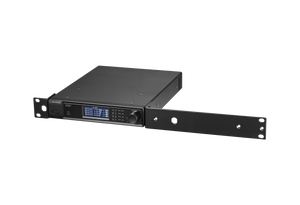

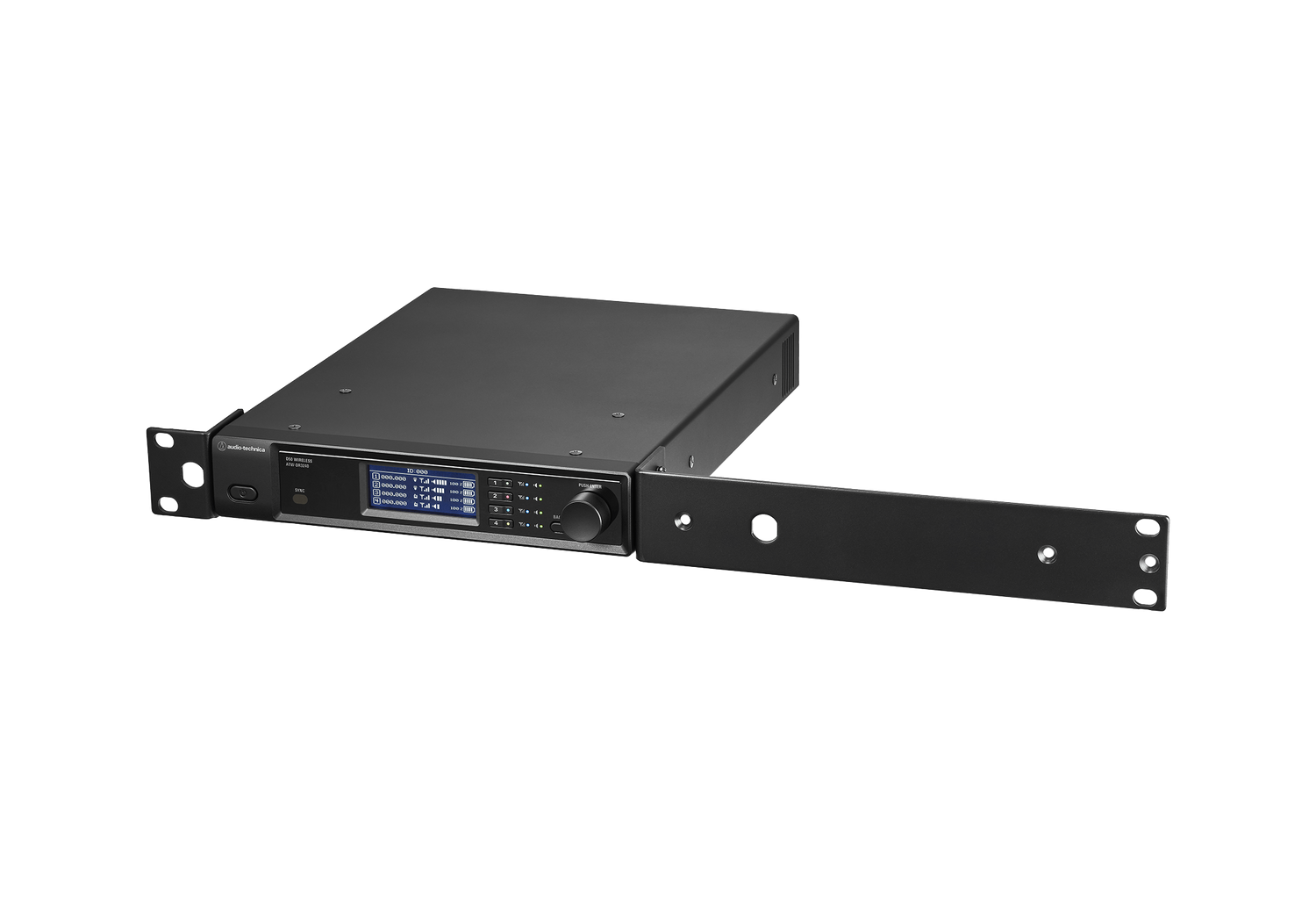

The included mounting hardware supports half-rack and paired full-rack configurations.

General Specifications
Device Type: Dante-enabled digital UHF wireless receiver
Wireless System: D50
Receiver Channels: 4
Chassis Format: Half-rack
Frequency Band: DF2
Operating Frequencies: 470.125 MHz to 607.875 MHz
Tuning Bandwidth: 137.75 MHz

Transmission Modes
Standard Modulation: 8-PSK
High-Density Modulation: 16QAM
Standard Occupied Bandwidth: 192 kHz
High-Density Occupied Bandwidth: 96 kHz
Recommended Standard Channel Count: 17 per 6 MHz TV channel
High-Density Channel Count: Up to 47 per 6 MHz TV channel
Standard Delay: 2.1 ms typical
High-Density Delay: 3.3 ms typical
Wireless Audio Sampling Rate: 48 kHz

Receiving System
Normal RF Mode: Antenna combining diversity
Robust RF Mode: MRC true diversity
Image Rejection: 70 dB
RF Sensitivity: -98 dBm at 10⁻⁵ BER
Operating Range: 100 m (328 ft), open environment without interfering signals
Encryption: AES256

Audio Performance
Frequency Response: 20 Hz to 20,000 Hz
Total Harmonic Distortion: 0.1% or less at 1 kHz, -20 dBFS
Maximum Output Level: +18 dBV
Body-Pack Microphone Input Dynamic Range: 120 dB, A-weighted, typical
Body-Pack Instrument Input Dynamic Range: 109 dB, A-weighted, typical
Handheld Transmitter Dynamic Range: 120 dB, A-weighted, typical
Desk Stand Transmitter Dynamic Range: 120 dB, A-weighted, typical

Audio Processing
High-Pass Filter: Per channel
Equalizer: 4-band, per channel
Compressor: Per channel
Mixed Output: Selectable
Spectrum Analysis: Front-panel display and Wireless Manager
Transmitter Synchronization: Infrared

Dante and Network
IP Control: 100 Mbps
Dante Network Speed: 1 Gbps
Dante Ports: Primary and secondary
Dante Sampling Rate: Up to 96 kHz
Dante Redundancy: Supported
Dante Daisy-Chaining: Supported
Management Software: Wireless Manager
Multipoint Reception: Supported
Firmware Updates: Wireless Manager

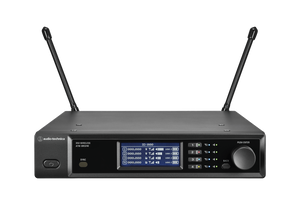

Antenna

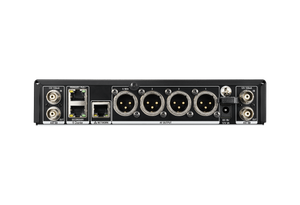

Antenna Inputs: 2 BNC
Input Impedance: 50 ohms
Antenna Power: 12 V DC, 150 mA per input
Linked Receivers: Up to 4
Shared Antenna Requirement: Single antenna pair

Power
AC Input: 100 V to 240 V AC, 50/60 Hz
Network Power: PoE+, IEEE 802.3at Class 4
AC Adapter Maximum Consumption: 22 W (75 Btu/h)
PoE+ Maximum Consumption: 22 W (75 Btu/h)
Power Redundancy: AC adapter and PoE+

Environmental
Operating Temperature: -5°C to 40°C (23°F to 104°F)
Storage Temperature: -20°C to 55°C (-4°F to 131°F)
Cooling Method: Fan-assisted air cooling
Airflow Direction: Front intake, rear exhaust

Dimensions and Weight
Width: 210 mm (8.3 in)
Depth: 288.2 mm (11 in)
Height: 42.5 mm (1.7 in)
Weight: 2.25 kg (5.0 lb), excluding accessories

Compliance
United States Compliance: TAA
European Union Compliance: Radio Equipment Directive cybersecurity requirements

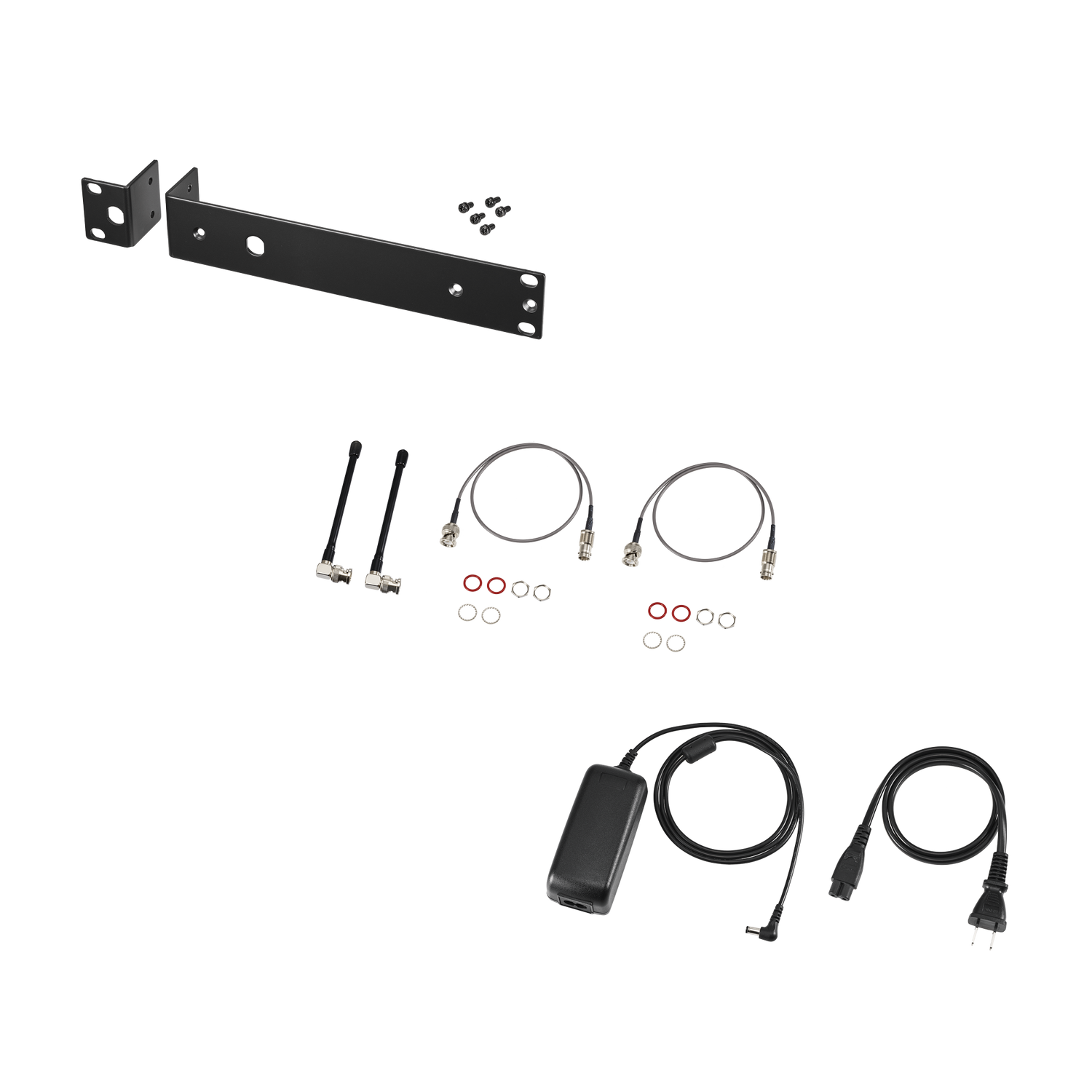

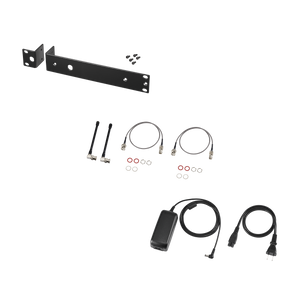

Included Accessories
Antennas: 2 whip antennas
Power Adapter: AD-SA1230XA
Power Cable: AC cable
Rubber Feet: 4
Rack Adapter: Short
Rack Adapter: Long
Fixing Screws: 7
Front-Mount Antenna Cables: 2 BNC cable kits
