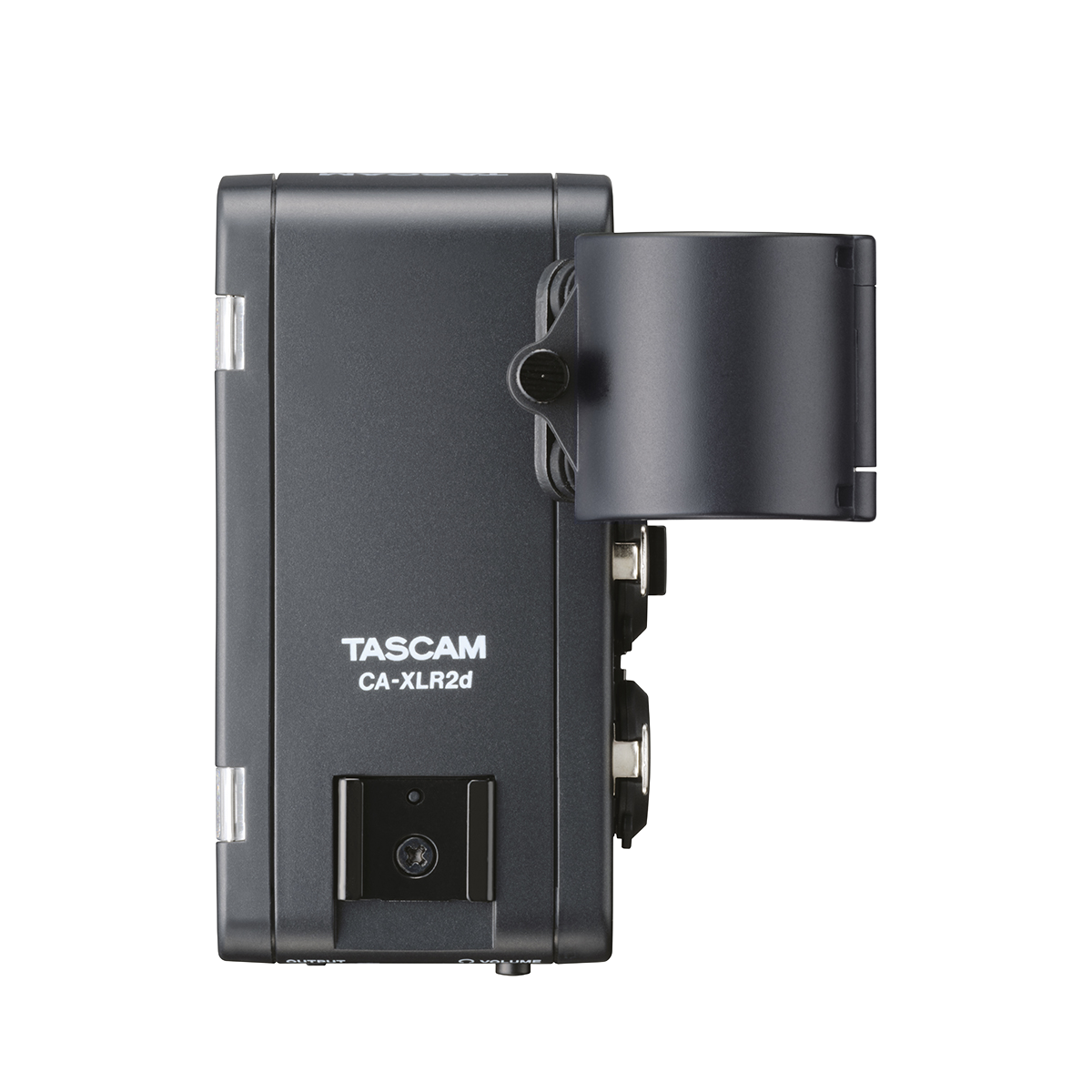

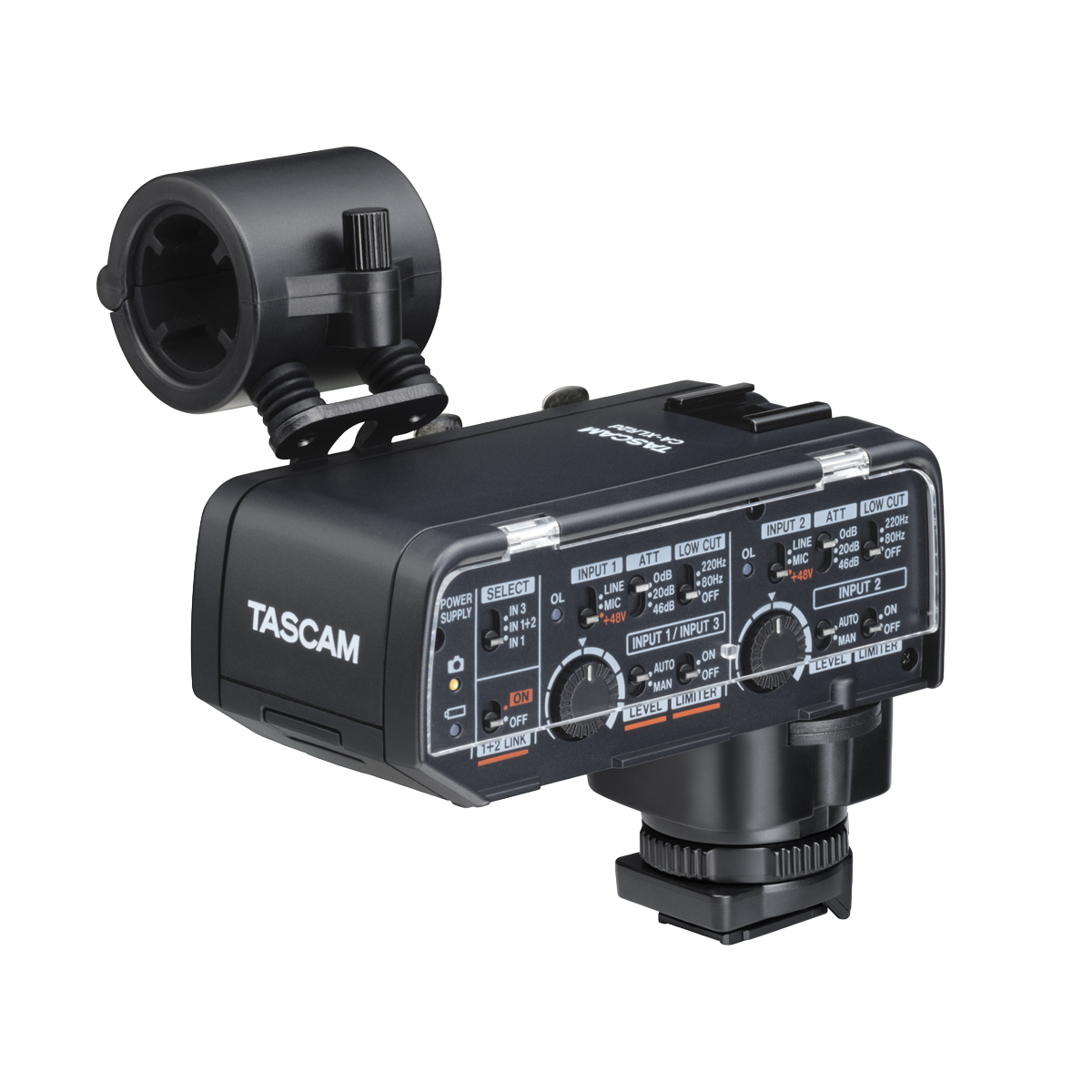

CA-XLR2d-N

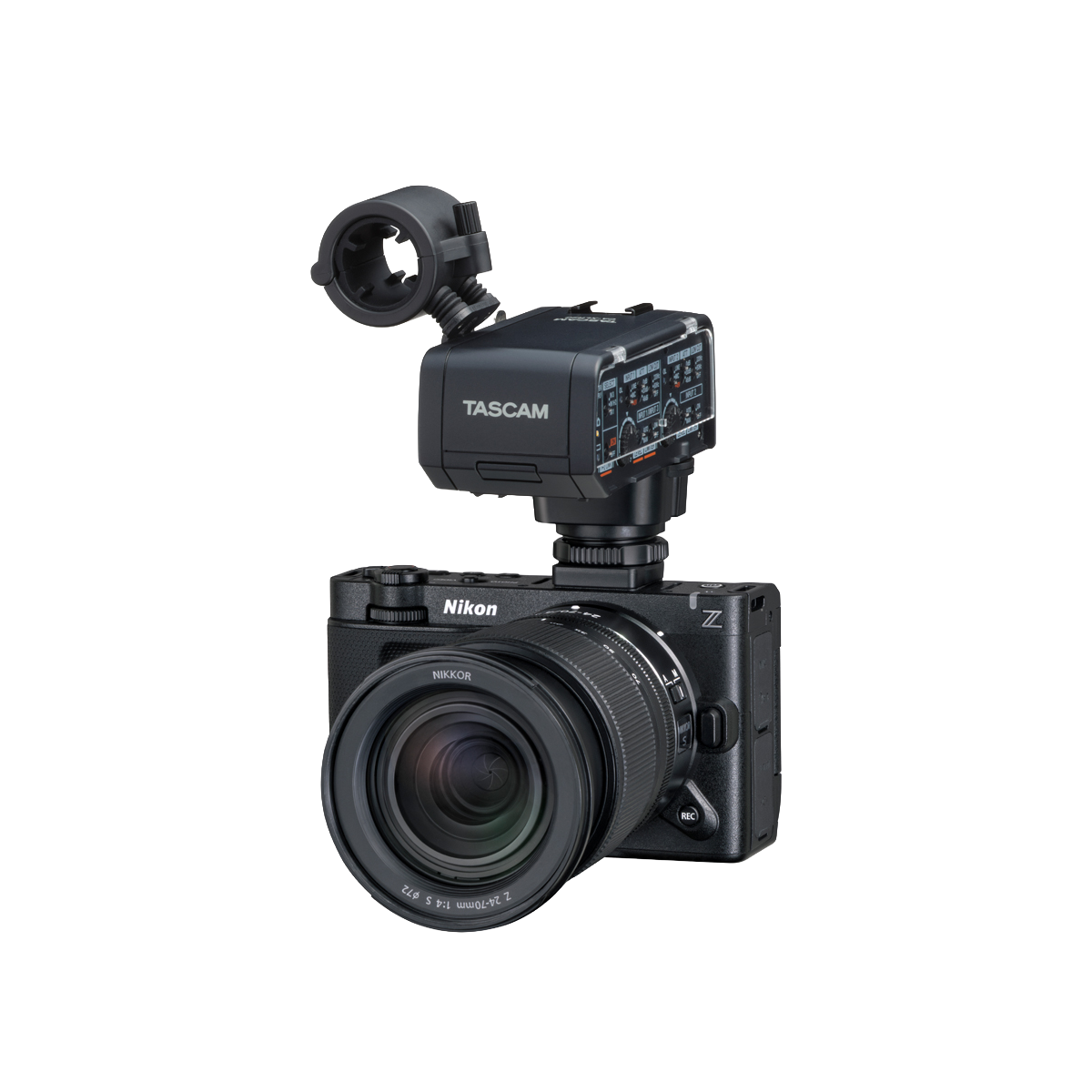

Designed for Nikon Cameras
Purpose-built for compatible Nikon mirrorless cameras, delivering a seamless digital audio connection through the accessory shoe.

Professional XLR Audio Inputs
Features two XLR/TRS combo inputs for connecting professional microphones, mixers, and other audio sources.

Additional 3.5mm Microphone Input
Includes a dedicated stereo mini input for lavalier microphones or microphones that require plug-in power.

High-Quality Digital Audio
Transmits digital audio directly to compatible Nikon cameras for clean, high-quality recordings without signal degradation.

HDDA Mic Preamps
Equipped with high-performance HDDA microphone preamps for clear, low-noise audio with a wide dynamic range.

Microphone and Line-Level Support
Accepts both microphone and line-level sources, making it suitable for a wide range of recording setups.

48V Phantom Power
Provides phantom power for compatible condenser microphones connected to the XLR inputs.

Camera-Powered Operation
Draws power directly from compatible Nikon cameras through the accessory shoe, reducing the need for external power.

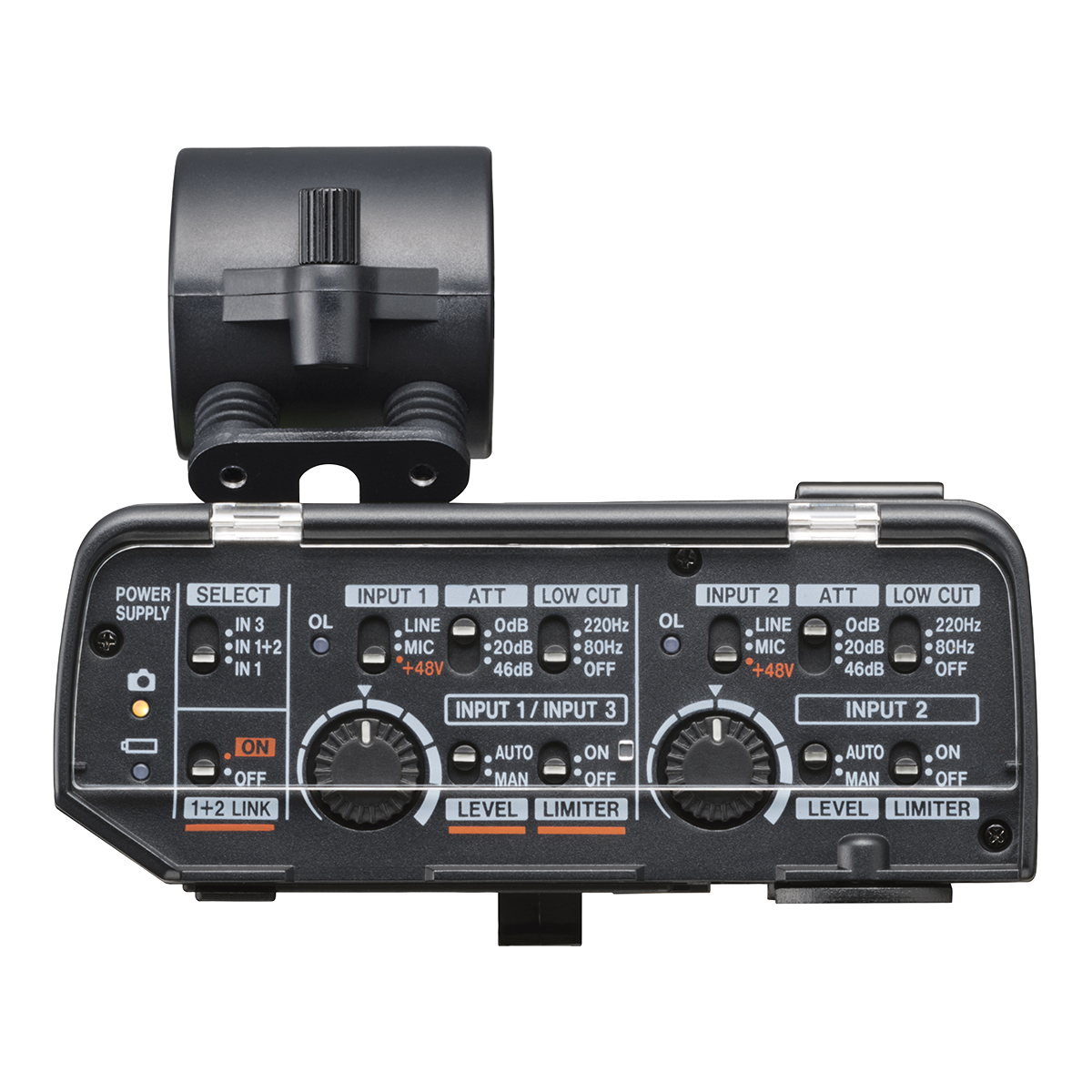

Built-in Audio Processing
Includes a limiter, low-cut filter, auto level control, and input linking for quick audio adjustments.

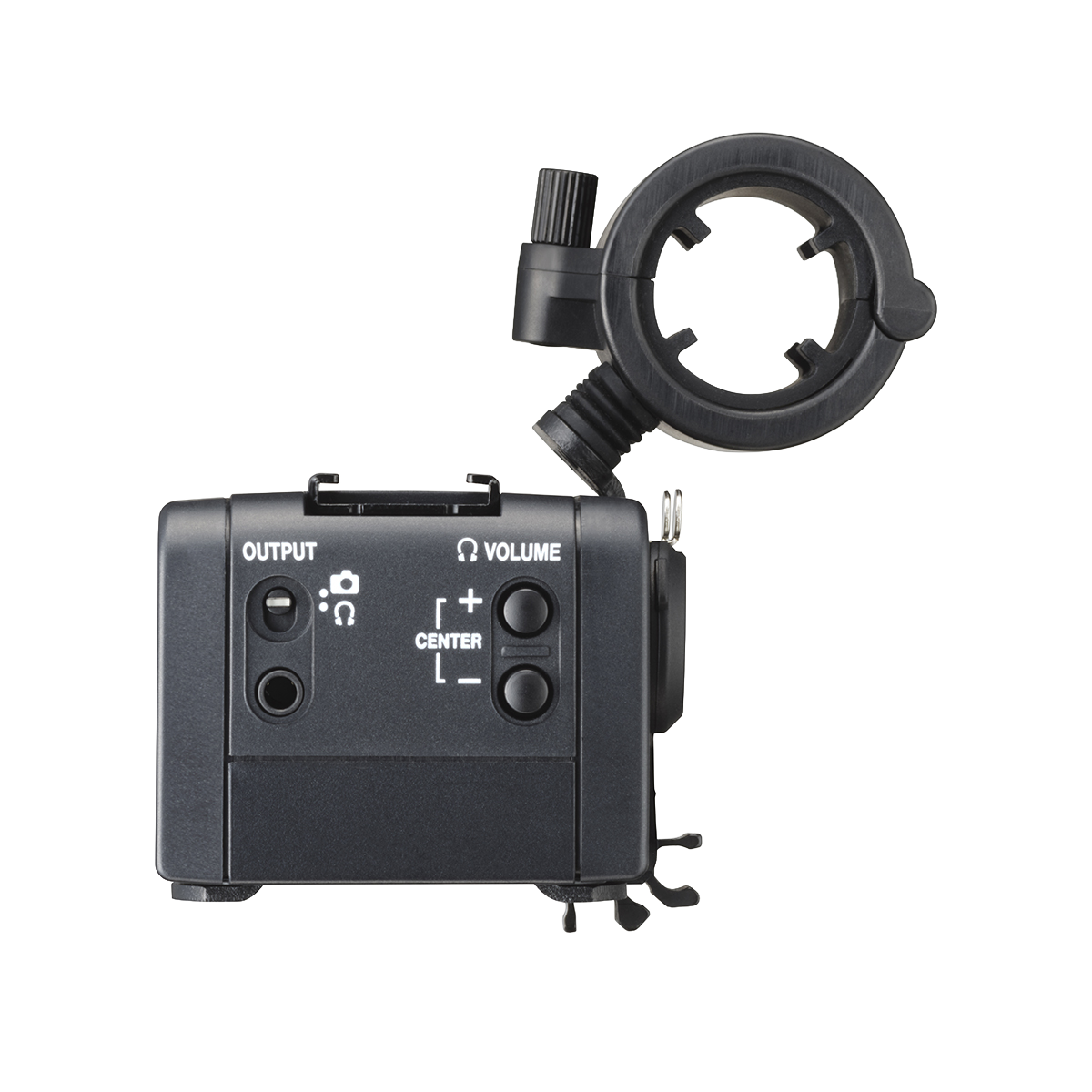

Headphone Monitoring
Supports direct headphone monitoring for real-time audio checks while recording.

Cold Shoe Mount
Features a built-in cold shoe for attaching additional accessories such as wireless receivers or lights.

Shock-Mounted Microphone Holder
Includes a detachable microphone holder with a shock mount to help reduce handling and vibration noise.

Analog Camera Compatibility
Can also be used with cameras that have a 3.5mm microphone input by using the included battery holder and analog connection.

Replaceable Adapter System
Uses interchangeable adapters, allowing the same unit to work with Canon, FUJIFILM, Nikon, or analog camera setups.

Complete Accessory Kit
Includes the CA-AK1-N adapter, CA-AK1-AN cold shoe adapter, battery holder, microphone holder, stereo mini cable, quick guide, and registration guide.

General Specifications
Device Type: XLR microphone adapter for mirrorless and DSLR cameras
Compatibility: Nikon mirrorless cameras with compatible digital accessory shoe
Camera Interface: Nikon-compatible accessory shoe (CA-AK1-N)
Digital Audio Transmission: Supported via compatible Nikon accessory shoe
Analog Camera Compatibility: Cameras with 3.5 mm microphone input using included battery holder and analog cable
Sampling Frequency: 48 kHz, 96 kHz
Quantization Bit Rate: 16 bit, 24 bit
Audio Channels: 2 channels
Firmware Requirement: Camera update required for CA-AK1-N compatibility

Audio Inputs
Input 1/2 Connectors: XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
Input 1/2 Alternate Connector: 6.3 mm (1/4") TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND)
Phantom Power: +48 V (XLR inputs only)
Microphone/Line Switching: Supported for INPUT 1 and INPUT 2
Input 3 Connector: 3.5 mm (1/8") stereo mini jack
Plug-in Power: 2.7 V

Balanced Microphone Input (INPUT 1/2)
Microphone Input Impedance: 2 kΩ or higher
Maximum Microphone Input Level: +6 dBu (ATT 46 dB)
Minimum Microphone Input Level: -60 dBu (ATT 0 dB)
Line Input Impedance: 10 kΩ or higher
Maximum Line Input Level: +24 dBu
Rated Line Input Level: +4 dBu
Gain Range: 66 dB

Unbalanced Microphone Input (INPUT 3)
Input Impedance: 2 kΩ or higher
Maximum Input Level: +6 dBV (ATT 46 dB)
Minimum Input Level: -60 dBV (ATT 0 dB)
Gain Range: 66 dB

Audio Output
Output Connector: 3.5 mm (1/8") stereo mini jack
Camera Output Level: 0.29 Vrms (fixed)
Headphone Output Level: 0.5 Vrms (maximum volume)
Headphone Impedance: 16 to 250 Ω
Output Modes: Camera, Headphone

Audio Processing
Microphone Preamplifier: HDDA (High Definition Discrete Architecture)
Attenuator: 0 dB, 20 dB, 46 dB
Low Cut Filter: Off, 80 Hz, 220 Hz
Limiter: Supported
Auto Level: Supported
1+2 Link Function: Supported
Overload Indicator: Per input channel

Audio Performance
Frequency Response (48 kHz): 20 Hz to 20 kHz (+0.5 dB / -1.0 dB)
Frequency Response (96 kHz): 20 Hz to 40 kHz (+0.5 dB / -1.0 dB)
Equivalent Input Noise: -120 dBu or lower (150 Ω termination, maximum gain, A-weighted)
Dynamic Range: 95 dB or higher (22 kHz LPF, A-weighted)

Power
Power Source: Compatible Nikon accessory shoe or 2 AA batteries
Battery Types: Alkaline, NiMH, Lithium
Maximum Power Consumption: 2.0 W

Physical Specifications
Dimensions: 88.2 × 119.1 × 110.0 mm
Weight: 341 g (mic holder attached, battery holder not attached)
Operating Temperature: 0°C to 40°C

Mounting Features
Top Mount: Cold shoe
Microphone Holder: Shock-mounted, detachable
Cable Holder: Integrated
Accessory Shoe Adapter: CA-AK1-N (attached)
Replaceable Adapter System: Supported

Package Contents
CA-XLR2d-N unit ×1
CA-AK1-N accessory shoe mount adapter ×1
CA-AK1-AN cold shoe mount adapter ×1
Battery holder ×1
Mic holder ×1
3.5 mm (1/8") stereo mini cable ×1
Quick Guide ×1
TASCAM ID registration guide ×1
