1 6
BAREFOOT SOUND

Empreinte02 Gen2

Moniteurs actifs

Tri-amplified 3-way monitor, SPOC DSP, MEME emulation, 1-inch tweeter, 5-inch midrange, dual 6.5-inch woofers, 111 decibel max SPL, 38 hertz to 42 kilohertz range.

$4,895.00 CAD
Frais de livraison calculés lors du paiement.
Parlez à nos experts
Notre équipe d'experts est là pour vous accompagner.

Livraison et expédition

Livraison gratuite au Canada pour les commandes de plus de 200 $. Des conditions s'appliquent. Voir les détails ici .

Financement

Affirm

Divisez votre achat en paiements mensuels faciles, avec une approbation rapide et sans frais cachés.
Cliquez ici pour plus d'informations.

Equilease

Idéal pour les achats plus importants, Equilease propose des solutions de financement personnalisées adaptées aux besoins de votre entreprise.
Cliquez ici pour plus d'informations.

Retours et politique

Vous pouvez consulter nos conditions générales ici

Description

The Barefoot Sound Footprint®02 Gen2 is a high-performance studio monitor that blends compact design with professional-grade power and precision. Built for engineers, producers, and creators who need uncompromising monitoring in smaller studio spaces, the Gen2 version is a complete overhaul of the original Footprint02—featuring upgraded drivers, a re-engineered DSP platform, and refined cabinet acoustics. It delivers the same sonic DNA as its larger siblings in a footprint that fits a wider range of production environments.

This tri-amplified 3-way monitor houses a 1-inch dual-ring radiator tweeter, a 5-inch aluminum cone midrange, and dual 6.5-inch aluminum woofers—each powered by dedicated Class D amplification (60W tweeter / 200W mid / 200W bass). The result is wide and smooth frequency response from 38 Hz to 42 kHz, minimal distortion, and crystal-clear detail at every level. At the core of its performance is SPOC™ (Spectrally Optimized Conversion), Barefoot's patented hybrid analog-digital crossover system that boosts signal-to-noise ratio by 15 dB and preserves transient accuracy, delivering low-latency, high-resolution monitoring ideal for mixing, mastering, and immersive workflows.

Caractéristiques

Three-Way Tri-Amplified Design
Each driver has its own Class D amplifier for clean, powerful sound with minimal distortion.

Reengineered Drivers
Upgraded tweeter, midrange, and dual woofers provide greater clarity, deeper bass, and improved accuracy.

Compact Size with Pro Performance
Delivers flagship-level audio in a smaller, space-efficient design ideal for modern studios.

SPOC™ + New DSP
Patented signal processing improves resolution, reduces noise, and delivers ultra-low latency for precise monitoring.

Dual-Force™ Woofer Technology
Opposing woofers cancel cabinet vibration for tight, controlled bass and better mix translation.

MEME™ Speaker Emulation
Switch voicings to mimic other common speakers for fast, real-world mix checks.

Rugged Sealed Cabinet
Acoustically treated MDF cabinet with internal damping enhances sound clarity and reduces unwanted resonance.

Optimized for Smaller Studios
Designed to excel in small to mid-sized treated rooms and immersive multi-channel setups.

Spécifications

General Specifications:
Model: Barefoot Sound Footprint02 Gen2
Type: 3-way active studio monitor
Amplification: Tri-amplified Class D
Crossover Frequencies: 180 Hz / 3700 Hz
Maximum SPL: ≥111 dB
Frequency Response: 38 Hz – 40 kHz (±3 dB), 42 Hz – 30 kHz (±1 dB)
Bass Extension: -3 dB @ 38 Hz, Q = 0.560, Slope = 18 dB/octave
Input Sensitivity: 90 dB @ 1 meter with -15 dBV input signal
Input Impedance: 20 kOhms (balanced XLR)
Signal-to-Noise Ratio: ≥100 dB
Latency: 3 ms
Power Supply: 100–240 VAC universal input
Power Consumption (Idle / Max): 35 W / 500 W

Amplification:
Tweeter Amp: 60 W
Midrange Amp: 150 W
Woofer Amp: 200 W

Drivers:
Tweeter: 1" dual-ring radiator, high magnetic flux motor, rear waveguide chamber
Midrange: 5" aluminum cone, 32 mm voice coil, high magnetic flux motor
Woofers: Dual 6.5" aluminum cone woofers with Dual-Force™ Technology

Cabinet Design:
Material: Medium-density fiberboard (MDF)
Baffle: Compound radius with extra thick machined aluminum faceplate
Volume: 9.4 liters internal
Mounting: Wall mount inserts compatible with Triad-Orbit and König & Meyer
Finish: Textured gray polyester coating
Design: Sealed enclosure with full acoustic damping

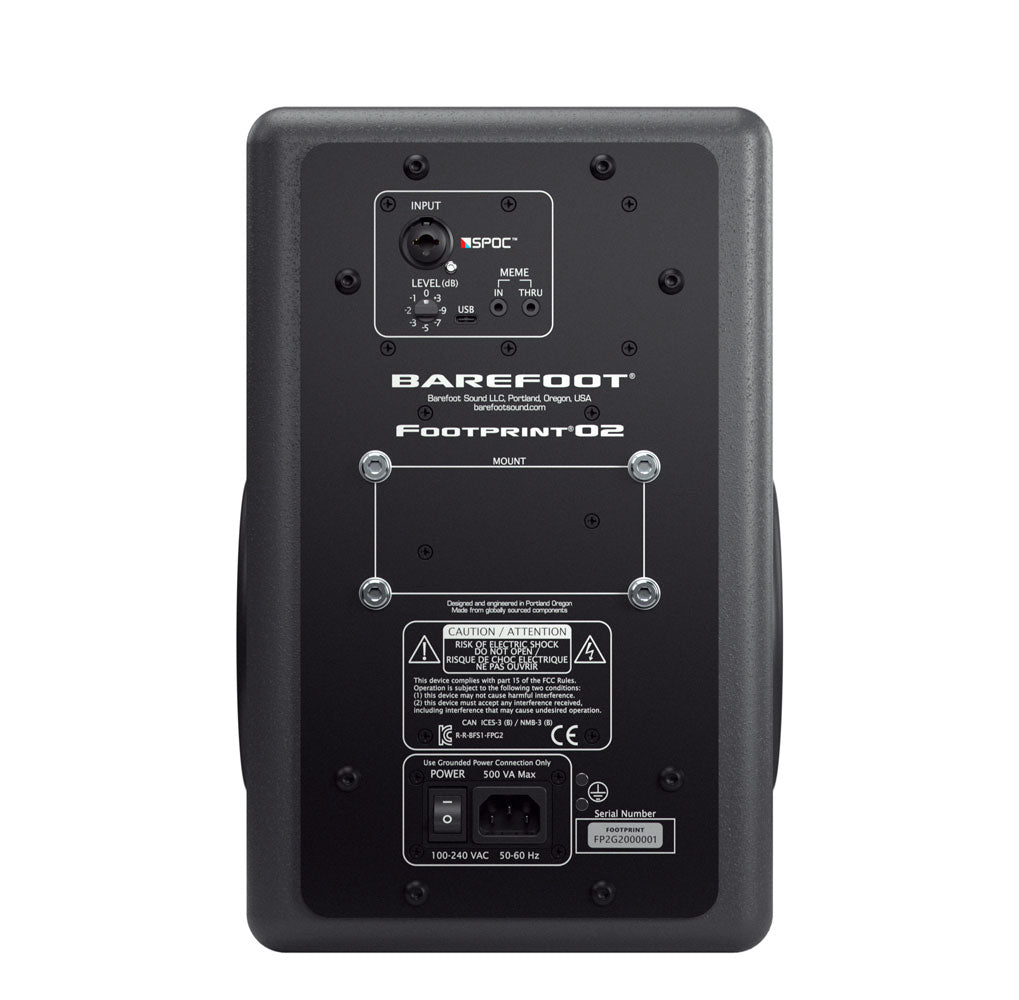

Connectivity & Controls:
Input: Balanced XLR (Pin 1 ground, Pin 2 positive, Pin 3 negative)
Level Control: 8-position stepped attenuator (+3 to -9 dB)

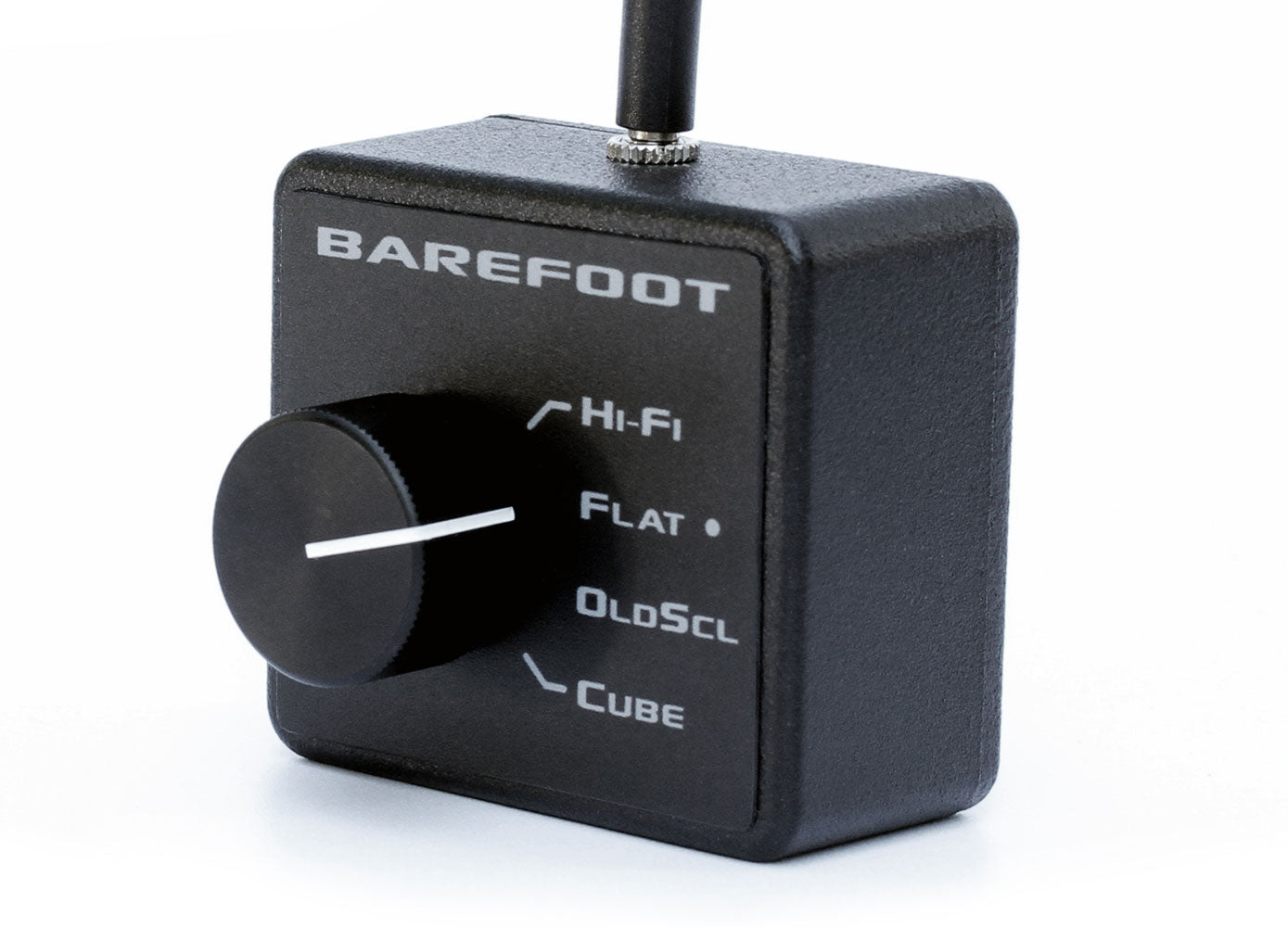

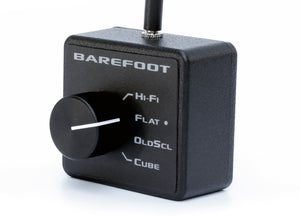

MEME™ Input/Thru: 3.5 mm stereo jack (passive control)
Factory Calibration Port: USB (non-audio)

DSP & Technology:
A/D Conversion: 24-bit / 96 kHz with SPOC™ (Spectrally Optimized Conversion)
DSP Engine: Low latency (3 ms), improves resolution and phase accuracy
MEME™ Emulation Modes: FLAT, HI-FI, OLDSCL (NS10M), CUBE (classic mix cube)
Peak & RMS Limiters: Active on LF and HF drivers
Overcurrent Protection: Auto-shutdown with reboot recovery

Dimensions & Weight:
Speaker Dimensions (H x W x D): 13.54" x 9.12" x 12.45" (344 mm x 232 mm x 316 mm)
Speaker Weight: 34.8 lbs (15.8 kg)
Shipping Dimensions (H x W x D): 21.25" x 13.27" x 16.73" (540 mm x 337 mm x 425 mm)
Shipping Weight: 44.0 lbs (17.7 kg)
