SCHOEPS

OCT-3D Set

Name: OCT-3D Set
Brand: SCHOEPS
SKU: 62057
Price: 32645.00 CAD
Availability: InStock

ID: 62057

MICROPHONES | Microphones à condensateur

Nine-channel immersive recording microphone set, 5.1.4 format, four height channels, balanced imaging, high channel separation

$32,645.00 CAD

Frais de livraison calculés lors du paiement.

Vous souhaitez être alerté(e) lorsque cet article sera en solde ?

Livraison & Expédition

Livraison gratuite au Canada pour les commandes de plus de 200 $. Des conditions s'appliquent. Voir les détails ici .

Financement

Flexiti

Profitez d'options de financement flexibles, y compris un financement à 0 % sur certains produits. Demande rapide et plans de paiement pratiques disponibles.
Cliquez ici pour plus d'informations.

Affirm

Répartissez votre achat en paiements mensuels faciles, avec une approbation rapide et sans frais cachés.
Cliquez ici pour plus d'informations.

Equilease

Idéal pour les achats importants, Equilease propose des solutions de location personnalisées adaptées aux besoins de votre entreprise.
Cliquez ici pour plus d'informations.

Retours et politique

Vous pouvez consulter nos conditions générales ici

Description

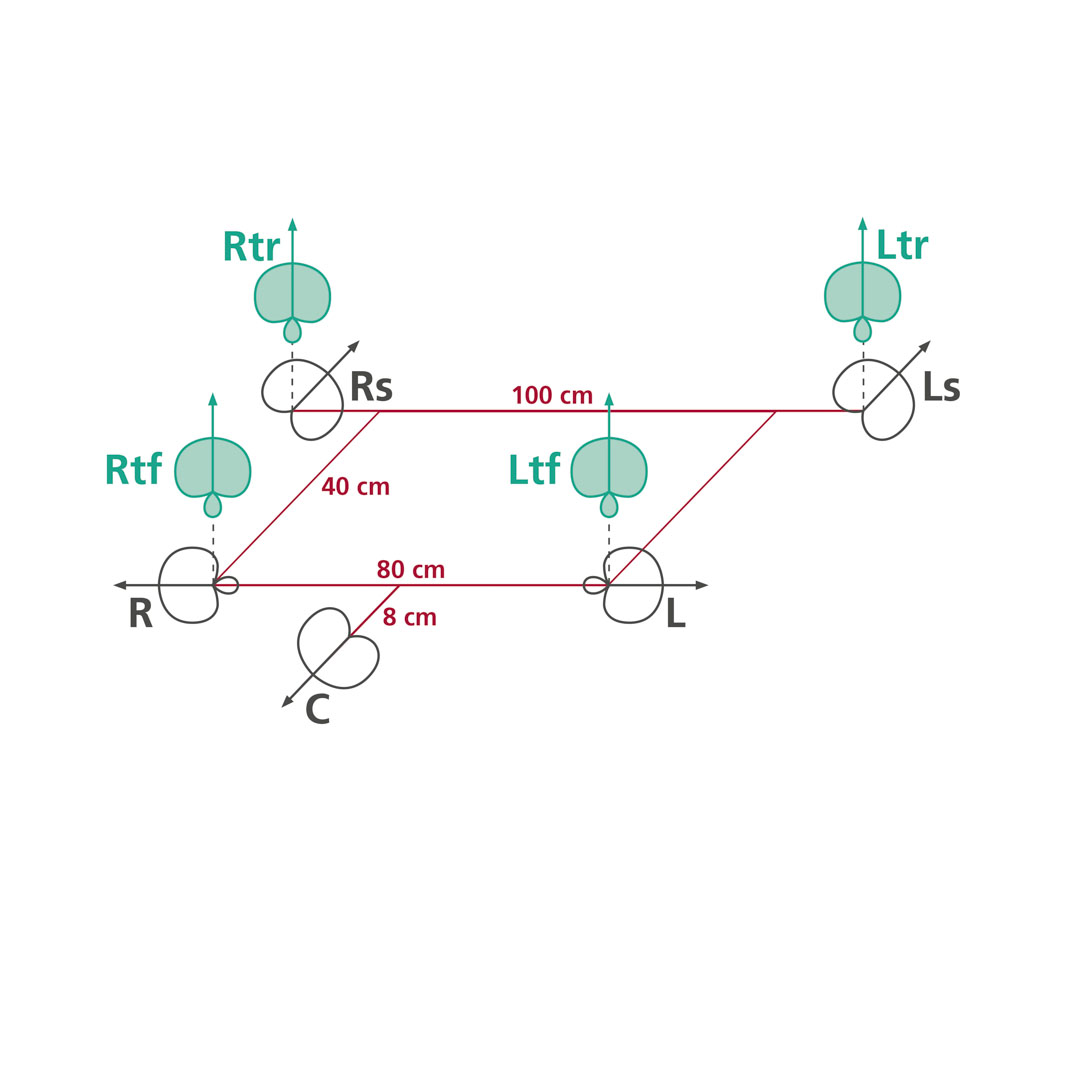

The OCT-3D Set is a complete nine-channel microphone system for immersive 5.1.4 recording, including Dolby Atmos and Auro-3D applications. It extends the established OCT surround technique with four height channels, providing natural spatial sound, balanced imaging, stable localization, and strong channel separation.

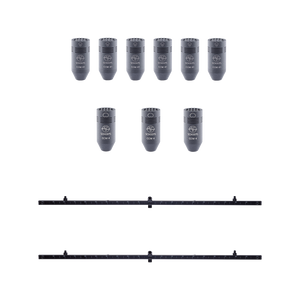

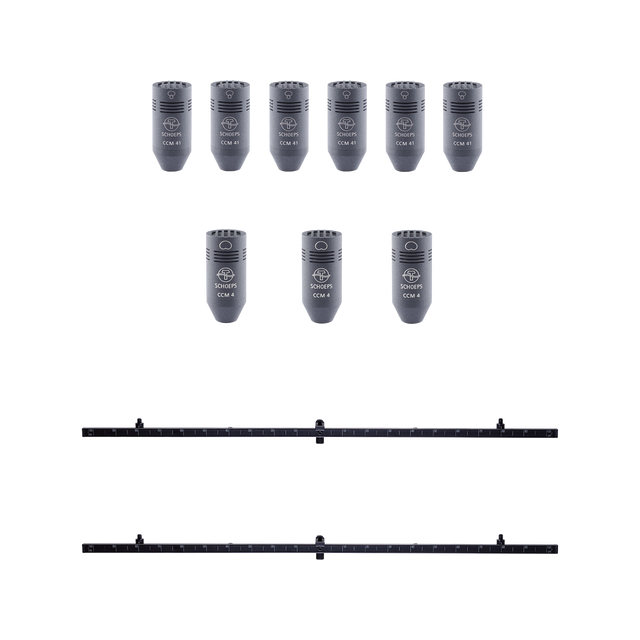

The set combines six CCM 41 L supercardioid microphones, three CCM 4 L cardioid microphones, and a dual-bar mounting system with additional riders for the height channels. Optional STR 250 support rods can separate the upper and lower microphone levels to reduce diffuse-field correlation, while direct mounting on the stereo bars supports a more compact configuration.

Caractéristiques

Nine-Channel Immersive Recording
A complete microphone arrangement for capturing OCT-3D recordings in the 5.1.4 format.

Four Height Channels
The OCT configuration is extended with four vertical channels for three-dimensional sound reproduction.

Natural Spatial Imaging
The recording technique supports natural surround sound, balanced imaging, and stable source localization.

Strong Channel Separation
High separation and direct-signal suppression help maintain clear distinctions between the main, surround, and height channels.

Diffuse-Field Decorrelation
The microphone arrangement provides high decorrelation in the diffuse field for a spacious immersive presentation.

Complete Microphone Array
Includes six CCM 41 L supercardioid microphones and three CCM 4 L cardioid microphones.

Adjustable Mounting System
Two MAB 1000 stereo bars, additional height-channel riders, and a CB-MAB bracket support the OCT-3D arrangement.

Flexible Vertical Placement
Optional STR 250 rods create spacing between microphone levels, while the height microphones can also mount directly on the stereo bars.

Modular Microphone Alternative
The compact microphones can be replaced with corresponding CMC 1 L amplifier and MK capsule combinations.

Spécifications

General Specifications
Recording Technique: OCT-3D
Channel Count: 9
Recording Format: 5.1.4
Height Channels: 4
Compatible Immersive Formats: Dolby Atmos, Auro-3D

Microphone Configuration
Supercardioid Compact Microphones: 6
Cardioid Compact Microphones: 3
Replaceable Configuration: Corresponding microphone amplifiers with modular capsules

Mounting System
Stereo Mounting Bars: 2
Height-Channel Riders: Included
Stereo-Bar Connecting Bracket: Included
Direct Height Microphone Mounting: Supported

Included Storage
Case: Included

Optional Accessories
Vertical Support Rods: 4
Support Rod Length: 250 mm
Support Rod Function: Upper and lower microphone level separation
