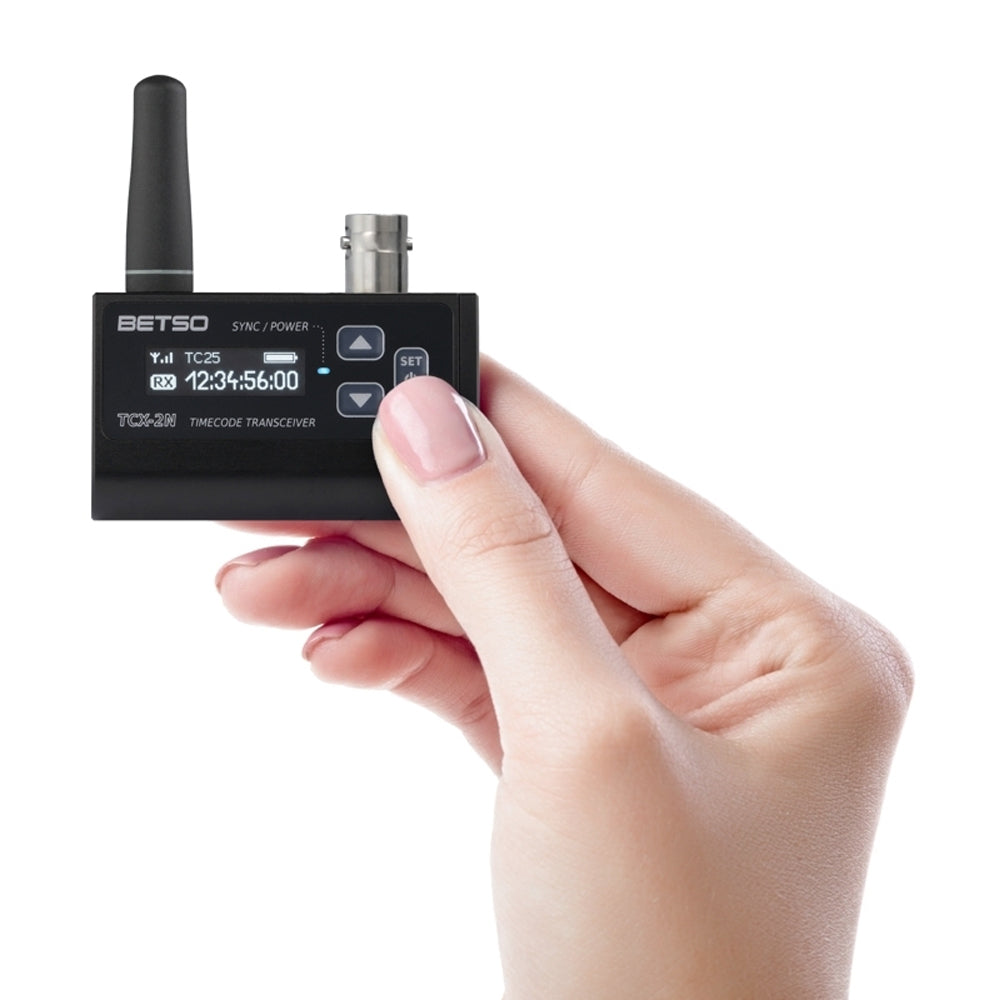

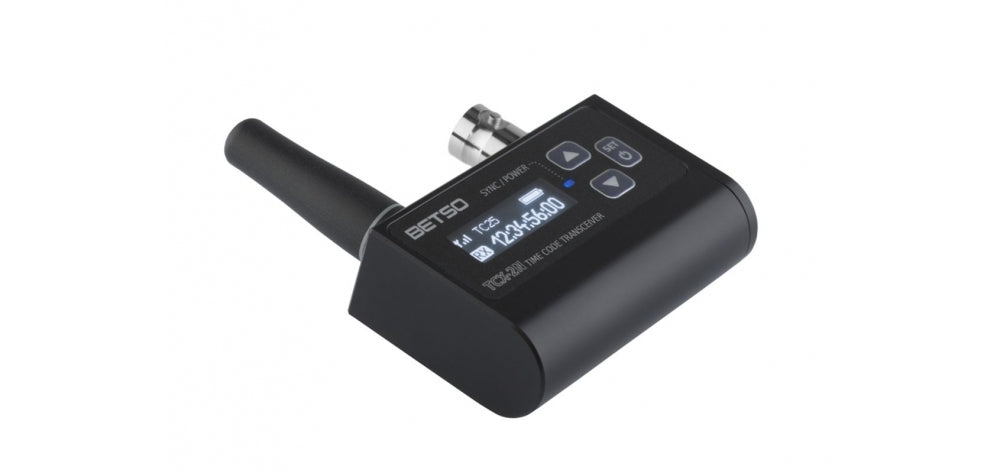

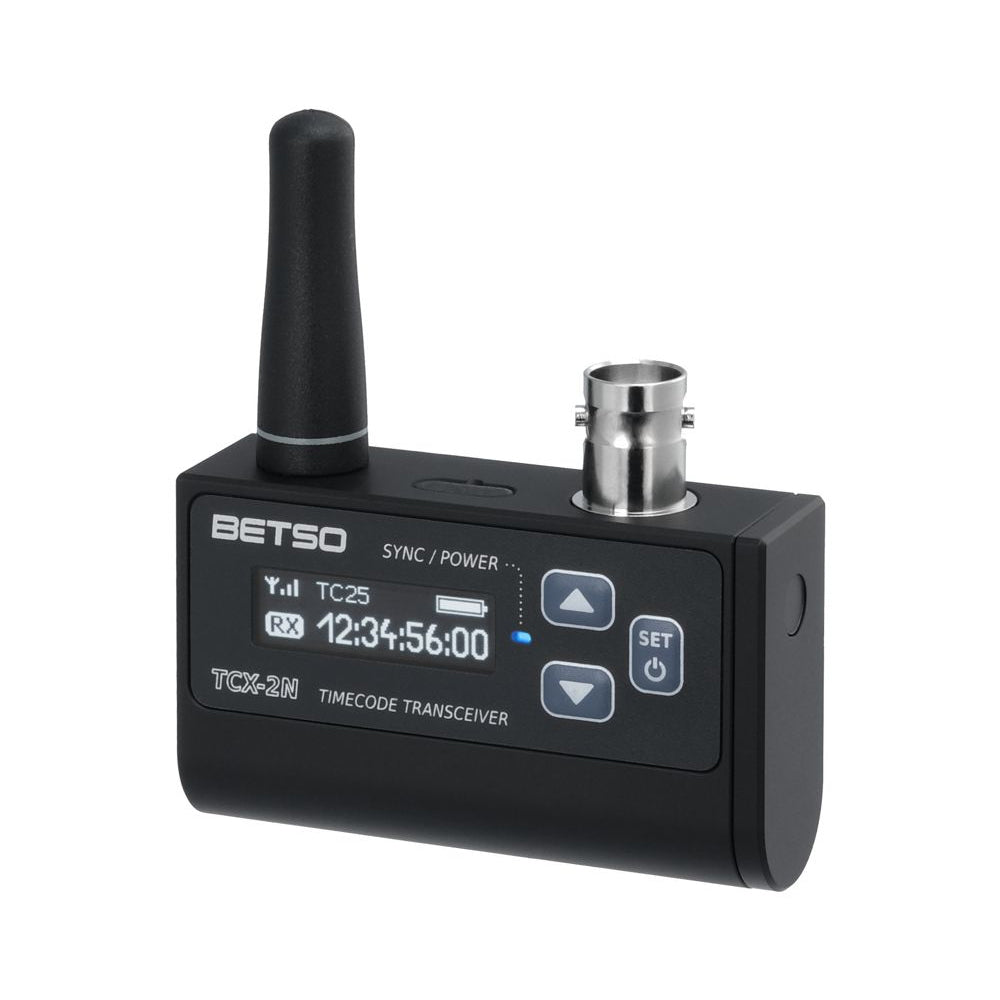

BETSO

TCX-2N

Timecode transceiver, wireless RF sync, 11.988–60 fps support, zero frame drift, BNC I/O, OLED display, 500 m range, USB-C power, 5 channels


$499.00 CAD
Frais de livraison calculés lors du paiement.

Vous souhaitez être alerté(e) lorsque cet article sera en solde ?

Livraison & Expédition

Livraison gratuite au Canada pour les commandes de plus de 200 $. Des conditions s'appliquent. Voir les détails ici .

Financement

Flexiti

Profitez d'options de financement flexibles, y compris un financement à 0 % sur certains produits. Demande rapide et plans de paiement pratiques disponibles.
Cliquez ici pour plus d'informations.


Affirm

Répartissez votre achat en paiements mensuels faciles, avec une approbation rapide et sans frais cachés.
Cliquez ici pour plus d'informations.


Equilease

Idéal pour les achats importants, Equilease propose des solutions de location personnalisées adaptées aux besoins de votre entreprise.
Cliquez ici pour plus d'informations.

Retours et politique

Vous pouvez consulter nos conditions générales ici

Description

Le BETSO TCX-2N est un émetteur-récepteur de timecode ultra-compact et d’une grande précision, conçu pour les productions ENG, EFP et en studio. Sa liaison RF numérique sans fil distribue un timecode synchronisé d’une unité TX vers plusieurs unités RX, sans aucune dérive d’image pendant la transmission RF. Chaque récepteur fonctionne également comme générateur de timecode, ce qui lui permet de continuer à produire un timecode synchronisé si la connexion sans fil est temporairement interrompue. Son large écran OLED, ses commandes de menu intuitives et son entrée/sortie timecode BNC simplifient la configuration et l’utilisation quotidienne.

Le TCX-2N prend en charge les fréquences de timecode SMPTE de 23,976 à 30 i/s, y compris les formats drop-frame et non-drop-frame, ainsi que les multiples 0,5x et 2x, de 11,988 à 60 i/s. Parmi ses outils de production pratiques figurent le jam externe du timecode, le cross-jam entre différentes fréquences d’image, le réglage du niveau et du décalage de sortie du timecode, les bits utilisateur, la surveillance sans fil de l’état des appareils, ainsi que la mise sous tension et le jam automatiques lorsqu’une source de timecode est connectée. Cinq canaux sans fil sont disponibles, avec une portée allant jusqu’à 500 m en visibilité directe.

Mesurant seulement 59 × 39 × 16 mm et pesant environ 45 g sans batterie, le TCX-2N est doté d’un boîtier robuste en alliage d’aluminium anodisé, adapté aux configurations compactes de caméra et de prise de son. Il peut fonctionner avec une seule pile AA alcaline, au lithium ou rechargeable, ou être alimenté en courant continu de 5 à 20 V via USB-C. L’autonomie peut atteindre 80 heures avec une pile au lithium, la RF désactivée et l’économie d’énergie de l’écran OLED activée. La luminosité réglable de l’écran et les modes d’économie d’énergie permettent en outre d’adapter la consommation aux besoins de chaque production.

Caractéristiques

Wireless Timecode Sync
Distributes timecode wirelessly between connected units, helping keep devices synchronized across a production setup.

Reliable Sync Without Signal
Receiver units continue generating synchronized timecode if the wireless connection to the transmitter is temporarily lost.

Wireless Device Monitoring
Lets connected units monitor the status of other devices within the wireless timecode network.

Flexible Transmit and Receive Modes
Can operate as a transmitter, receiver, or standalone wired timecode unit to suit different workflows.

Wide Timecode Compatibility
Supports common SMPTE timecode formats, including drop-frame and non-drop-frame operation.

Cross Jamming
Can synchronize from an external timecode source while retaining the frame rate selected on the unit.

Jamming Calibration
Can calibrate itself to an external timecode source during jamming for improved synchronization.

Automatic Power-On and Jamming
Can automatically power on when an external timecode source is connected and begin synchronization without a separate startup procedure.

Adjustable Timecode Output
Allows the timecode output level to be adapted for different connected cameras and recording equipment.

Timecode Offset Adjustment
Lets users compensate for timing differences that may occur with certain cameras and production equipment.

User Bits Support
Can display and generate user bits copied from a timecode source or entered manually.

OLED Display
Provides a clear interface for viewing timecode, user bits, wireless information, battery status, and settings.

Display Power Saving
The display can automatically dim or switch off when inactive to conserve battery power.

Adjustable Display
Offers selectable brightness and screen orientation for easier viewing in different setups.

Flexible Power Options
Runs from a replaceable battery or external power through its USB-C connection.

Battery Monitoring
Displays battery condition and provides warning information when the battery is running low.

USB-C Connectivity
Supports external power and provides a convenient connection for firmware updates.

BNC Timecode Connection
Provides a dedicated connection for timecode input and output.

Compact Metal Construction
Uses a small anodized aluminum body designed for portable production environments.

Simple Menu Control
Provides straightforward button-based navigation for quickly configuring timecode, wireless, display, and other functions.

Spécifications

General Specifications
Device Type: Ultra-compact high-accuracy timecode transceiver
Mechanical Construction: Anodized aluminum alloy
Display: Wide graphic OLED
Display Brightness: High, Medium, Low
Display Orientation: Normal, Rotated
OLED Power Save: Display dim, Display off, None
Controls: UP, SET, DOWN buttons
Timecode Connector: BNC input/output
USB Connector: USB-C
Mounting: BETSO Hot Shoe holder mounting holes

Dimensions and Weight
Dimensions (W × H × D): 59 × 39 × 16 mm (2.35 × 1.37 × 0.62 in)
Weight: Approx. 45 g without battery

Timecode
Timecode Format: SMPTE
Standard Frame Rates: 23.976, 24, 25, 29.97, 29.97 DF, 30, 30 DF fps
2× Frame Rates: 47.952, 48, 50, 59.54, 59.54 DF, 60, 60 DF fps
0.5× Frame Rates: 11.988, 12, 12.5, 14.985, 14.985 DF, 15, 15 DF fps
Timecode Output Amplitude: +6 to -30 dBu
Amplitude Adjustment Steps: 3 dB
Timecode Offset Range: -10.0 to +10.0 frames
Timecode Offset Resolution: 0.1 frame
User Bits: Jammed TC or manual
Manual User Bit Range: 0–9, A–F
Cross Jamming: Supported
Automatic Jamming: Once/Manual, Continuous, Disable
Jamming Calibration: On/Off
Auto On: Enable, Enable + JAM, Disable
Input Sensitivity: 0.2–10 V p-p

Timing Performance
Oscillator: GPS-calibrated temperature-compensated crystal oscillator
TCXO Accuracy: ±0.1 ppm
Accuracy Error Without RF Transmission: Less than 0.3 frames/24 hours
Accuracy Error With RF Transmission: 0.0 frames
Jamming Calibration Synchronization Precision: ±0.1 ppm

Wireless
Wireless Modes: RF OFF, TX, RX
RF Protocol: Digital frequency-hopping spread spectrum
RF Channels: 5 hopping schemes
RX IDs: 1–20
Frequency Range USA/Canada: 902–928 MHz
Frequency Range Europe: 863–870 MHz
Frequency Range Japan: 920.6–923.4 MHz
RF Output Power: 10 mW (10 dBm)
Operating Range: Up to 500 m line of sight
Wireless Timecode Drift: 0 frames with RF transmission
Usage Locations: Europe, USA & Canada, Japan

Power
Battery: 1 × AA
Supported Battery Types: Alkaline, lithium, NiMH, NiCd
Lithium Battery Voltage: 1.5 V
USB-C Input: 5–20 V DC
Current Consumption: Approx. 40–150 mA, operating-mode dependent
Battery Life: Up to 80 hours with lithium cell, OLED power save, RF off

Connectivity and Interfaces
BNC Function: Timecode input/output
BNC Pin 1: GND
BNC Pin 2: Timecode input/output
USB-C Functions: Power, firmware upgrade

Antenna
Approved Antenna Type: ANT-868-PW-LP
Antenna Manufacturer: Linx Technologies
Antenna Impedance: 50 Ω
Antenna Gain: 2.1 dBi
Minimum RF Exposure Separation: 20 cm

Regulatory
FCC Compliance: FCC Part 15
FCC Device Class: Class B digital device
European Radio Standards: EN 300 220
EMC Standard: EN 301 489
Safety Standard: EN 60065/2002
European Maximum Radiated Power: 10 mW (10 dBm)
