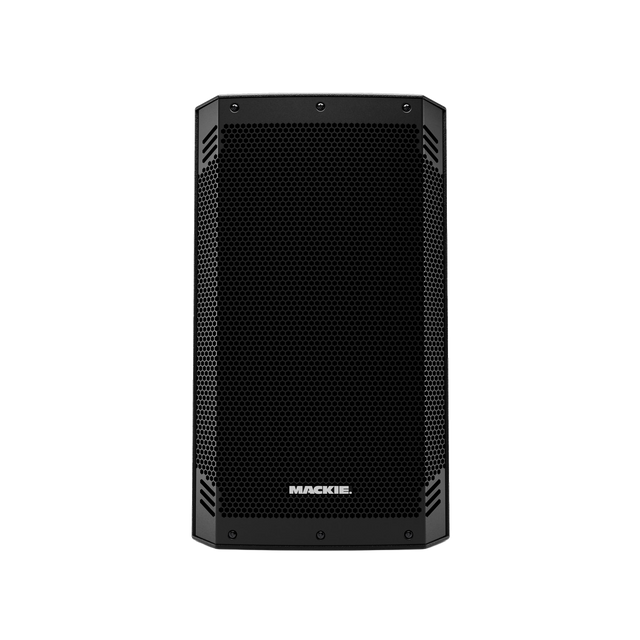

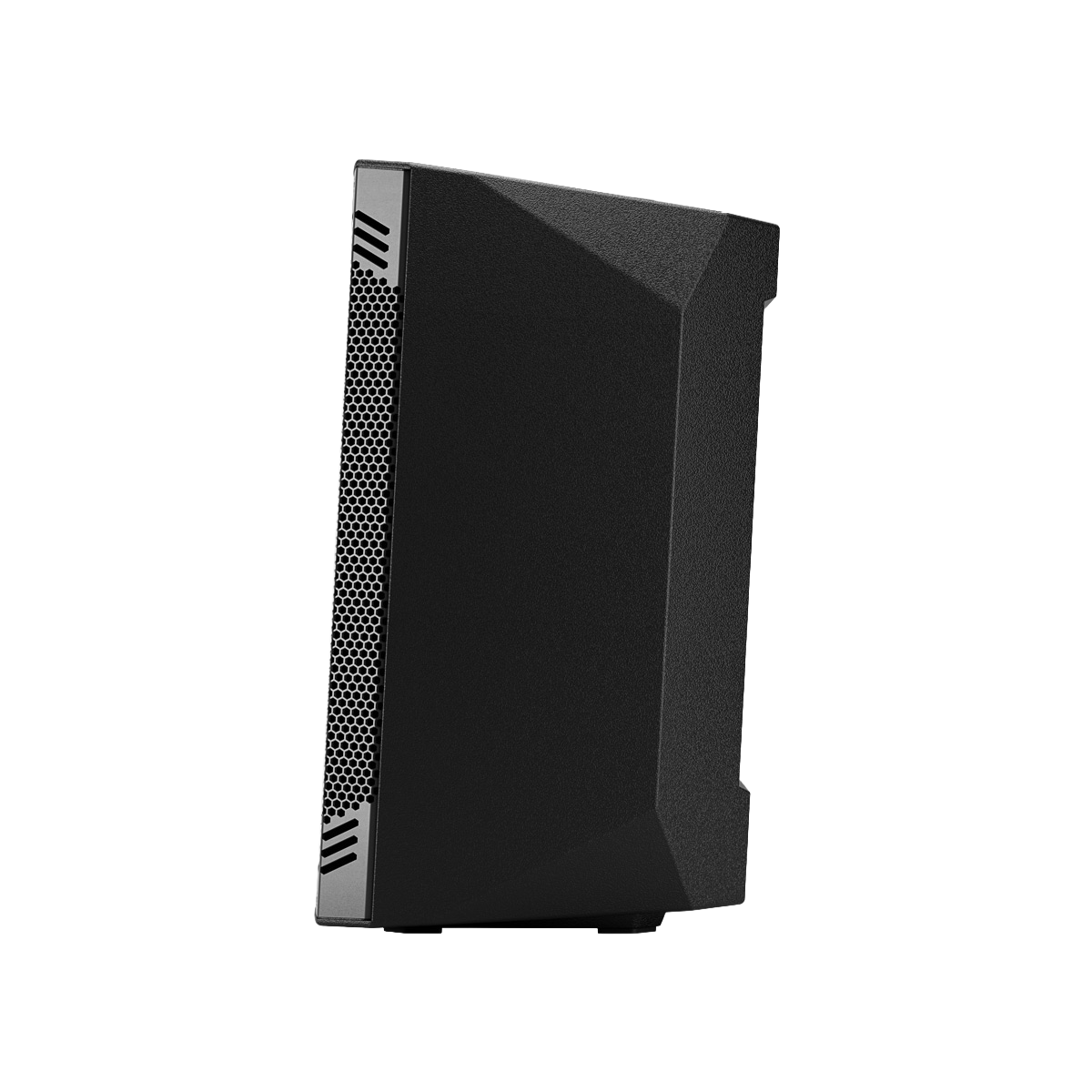

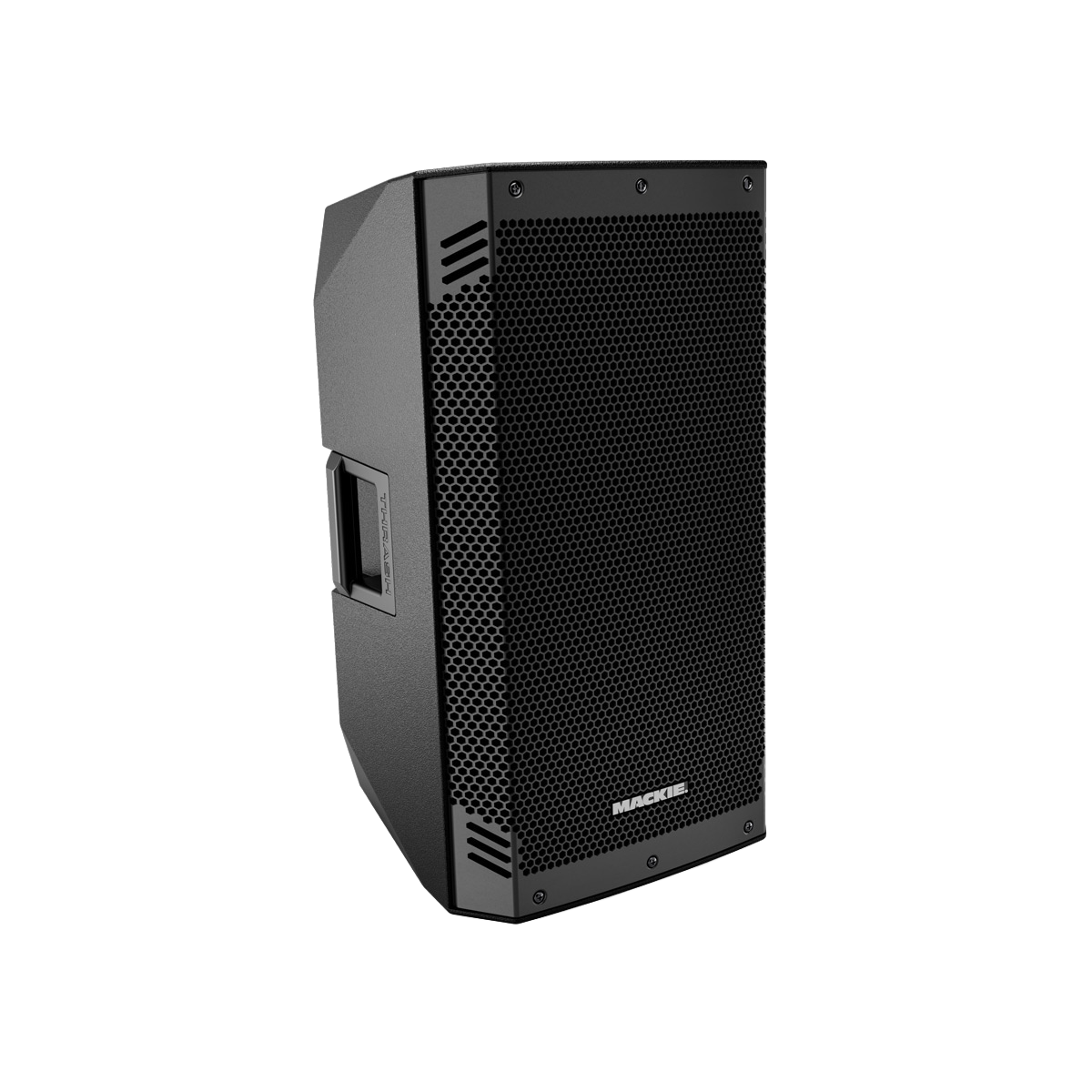

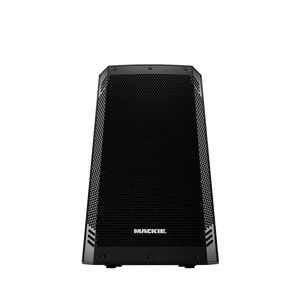

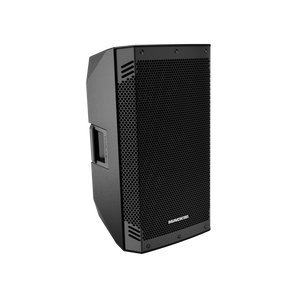

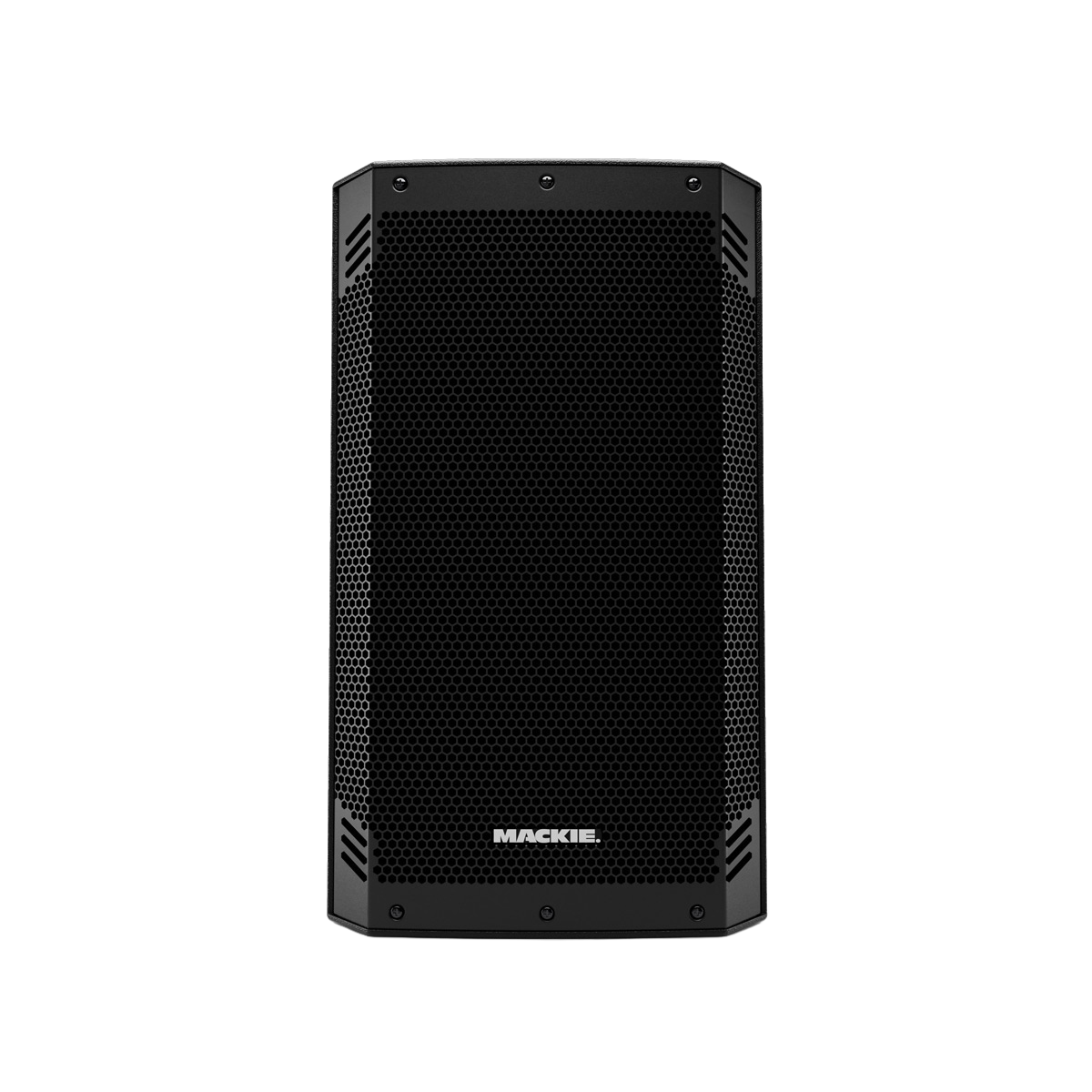

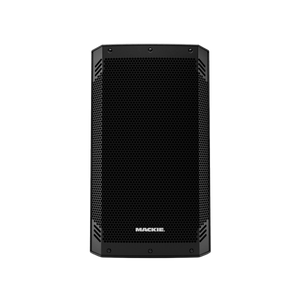

Thrash12v2

Four Voicing Modes
Choose Flat, DJ, Live, or Wedge mode to suit music playback, vocal performance, speech, or floor-monitor applications.

Feedback Eliminator
Activate automatic feedback control to help suppress unwanted microphone feedback during performances and presentations.

Bluetooth Streaming
Play audio wirelessly from a compatible phone, tablet, or computer while keeping the wired input available.

Wireless Speaker Linking
Send Bluetooth audio to two compatible loudspeakers in stereo or dual-mono configurations.

Flexible Input
Connect a microphone, instrument, or line-level source through the balanced combination input.

Balanced Mix Output
Route the wired input and Bluetooth signal to additional audio equipment through the XLR output.

Integrated Protection
Peak and RMS limiting, thermal protection, and an overload limiter help protect the loudspeaker during operation.

Portable Construction
A rugged enclosure, protective grille, and built-in handles support transportation and regular live use.

Flexible Placement

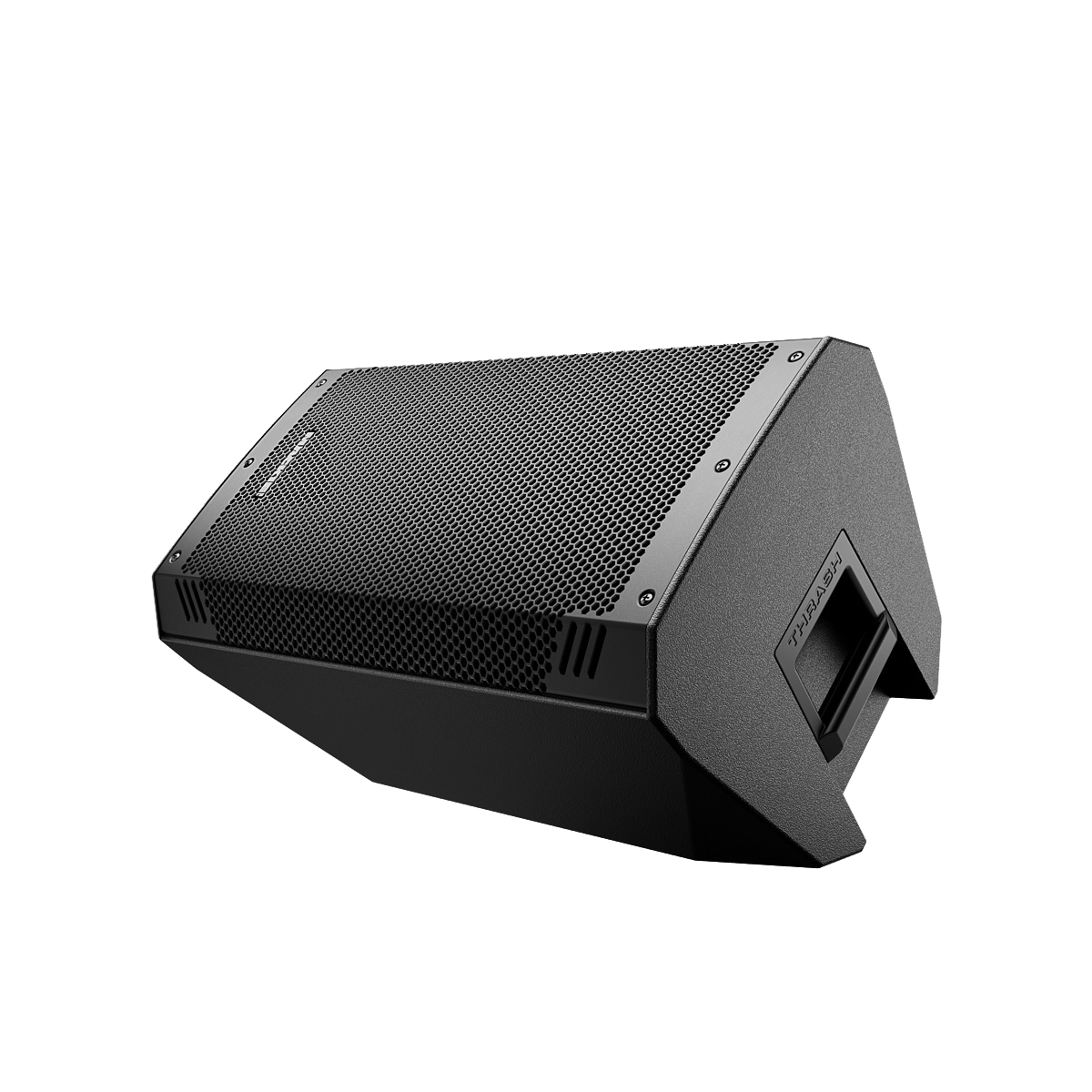

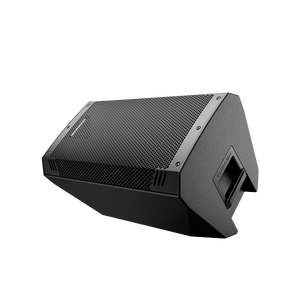

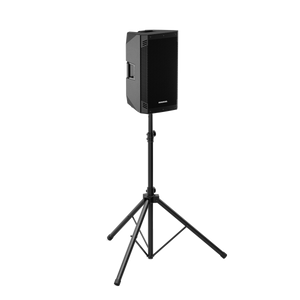

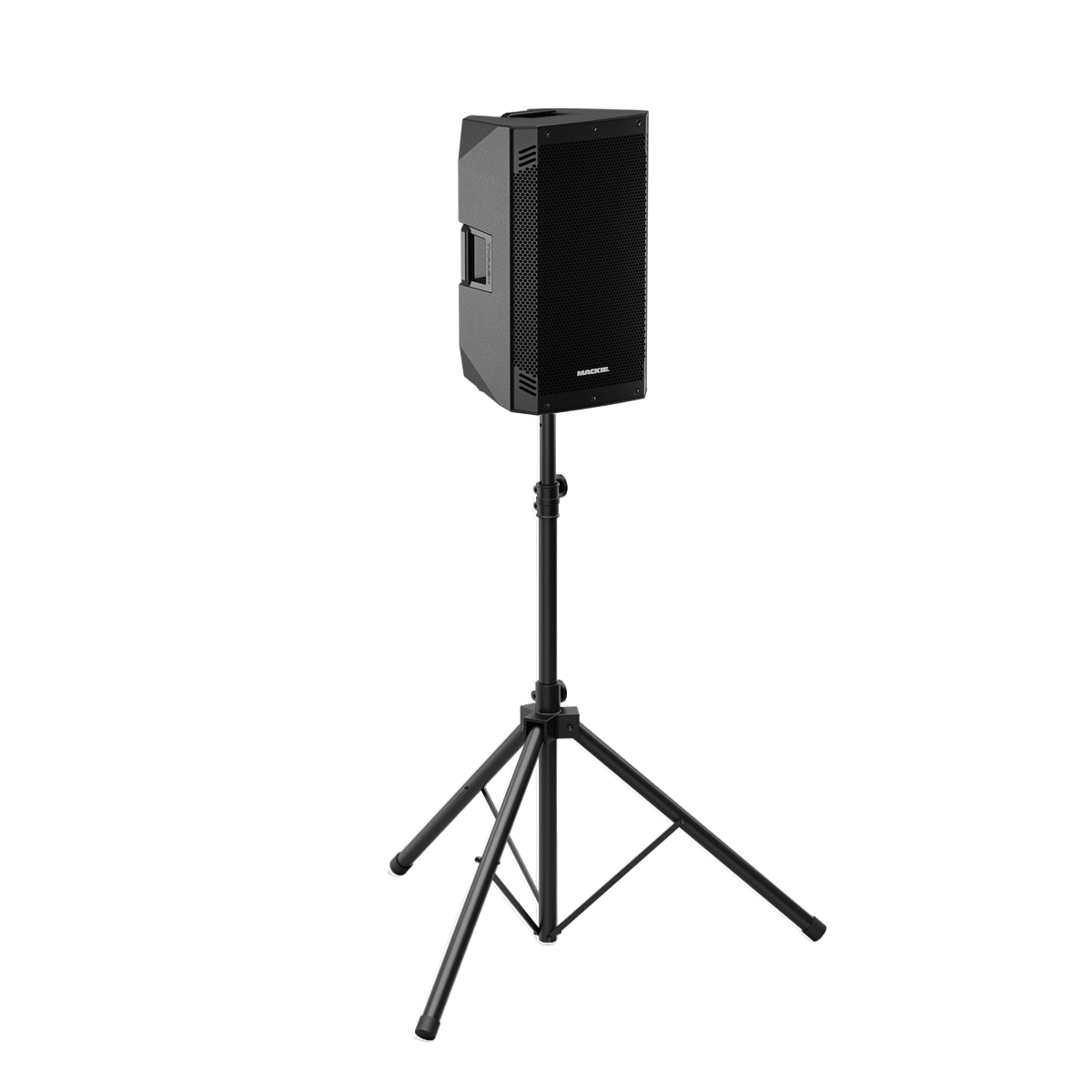

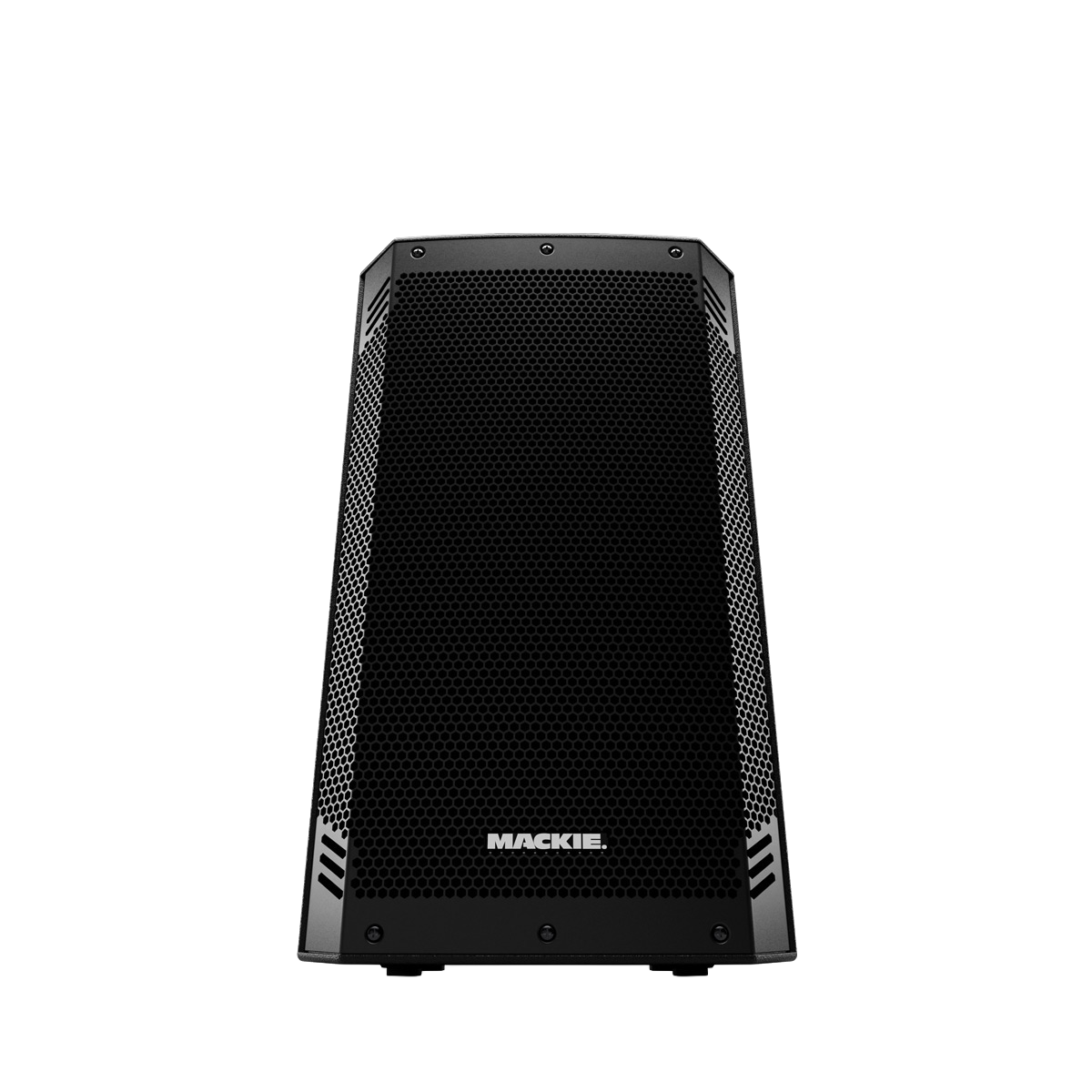

Use the loudspeaker upright, on a compatible pole, or at its fixed monitor angle for floor-monitor applications.

General Specifications
Quantity: Single powered loudspeaker
System Type: 2-way powered loudspeaker
System Power: 1300 W peak
Maximum SPL: 129 dB peak

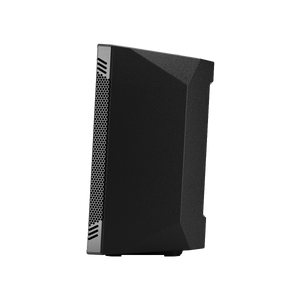

Monitor Angle: 45°

Transducers
Low-Frequency Driver: 12 in (305 mm) ferrite woofer
High-Frequency Driver: 1 in (25 mm) polymer compression driver

Amplification
Amplifier Design: Class D
Low-Frequency Amplifier Power: 1000 W peak, 320 W RMS
High-Frequency Amplifier Power: 300 W peak, 180 W RMS
Low-Frequency Amplifier THD: Less than 1%
High-Frequency Amplifier THD: Less than 1%
Cooling: Convection

Acoustic Performance
Frequency Response: 53 Hz to 16 kHz, -3 dB
Extended Frequency Response: 45 Hz to 18 kHz, -10 dB
Crossover Frequency: 2 kHz
Horizontal Coverage: 90°
Vertical Coverage: 60°

Audio Connections
Input: Female XLR and 1/4-inch balanced TRS combination jack
Input Compatibility: Microphone and line signals
Input Impedance: 10 kΩ balanced
Output: Male XLR balanced mix output
Output Impedance: 150 Ω balanced
Mix Output Sources: Bluetooth audio and wired input

Bluetooth
Bluetooth Protocol: 5.0
Bluetooth Function: Audio streaming
Speaker Linking: Stereo and dual mono

Signal Processing
Voicing Modes: Flat, DJ, Live, Wedge
Feedback Eliminator: On/off
Transducer Protection: Peak and RMS limiting
Environmental Protection: Power supply and amplifier thermal protection
Status Indicators: Voicing mode, Bluetooth, link, signal, overload, limit, Feedback Eliminator

Power
AC Input: 100-240 V, 50-60 Hz, 300 W
AC Connector: 3-pin IEC, 250 VAC, 10 A male
Power Supply: Universal regulated switch-mode power supply with integrated PFC

Mounting
Placement: Floor or pole mount
Pole Mount: Built-in bottom socket with tightening screw
Rigging Points: None
Suspension Compatibility: Not suitable for suspended installation

Physical Specifications
Height: 24.2 in (614 mm)
Width: 13.9 in (353 mm)
Depth: 13.7 in (348 mm)
Weight: 30.6 lb (13.9 kg)

Packaged Specifications
Packaged Height: 26.5 in (673 mm)
Packaged Width: 15.7 in (399 mm)
Packaged Depth: 15.7 in (399 mm)
Packaged Weight: 35.3 lb (16 kg)

Optional Accessories
Speaker Bag: Sold separately
Rolling Speaker Bag: Sold separately
Tripod Stand: Sold separately
Threaded Loudspeaker Pole: Sold separately
Unthreaded Loudspeaker Pole: Sold separately
