MANLEY LABS

Dual Mid Band EQ

Mastering EQs

Stereo passive EQ, inductor-based design, tube signal path, precise midrange control, transformer-coupled I/O, mastering-grade performance

$7,415.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.


Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.


Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

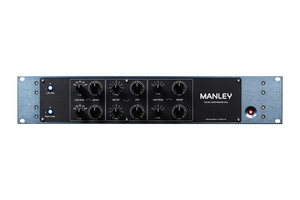

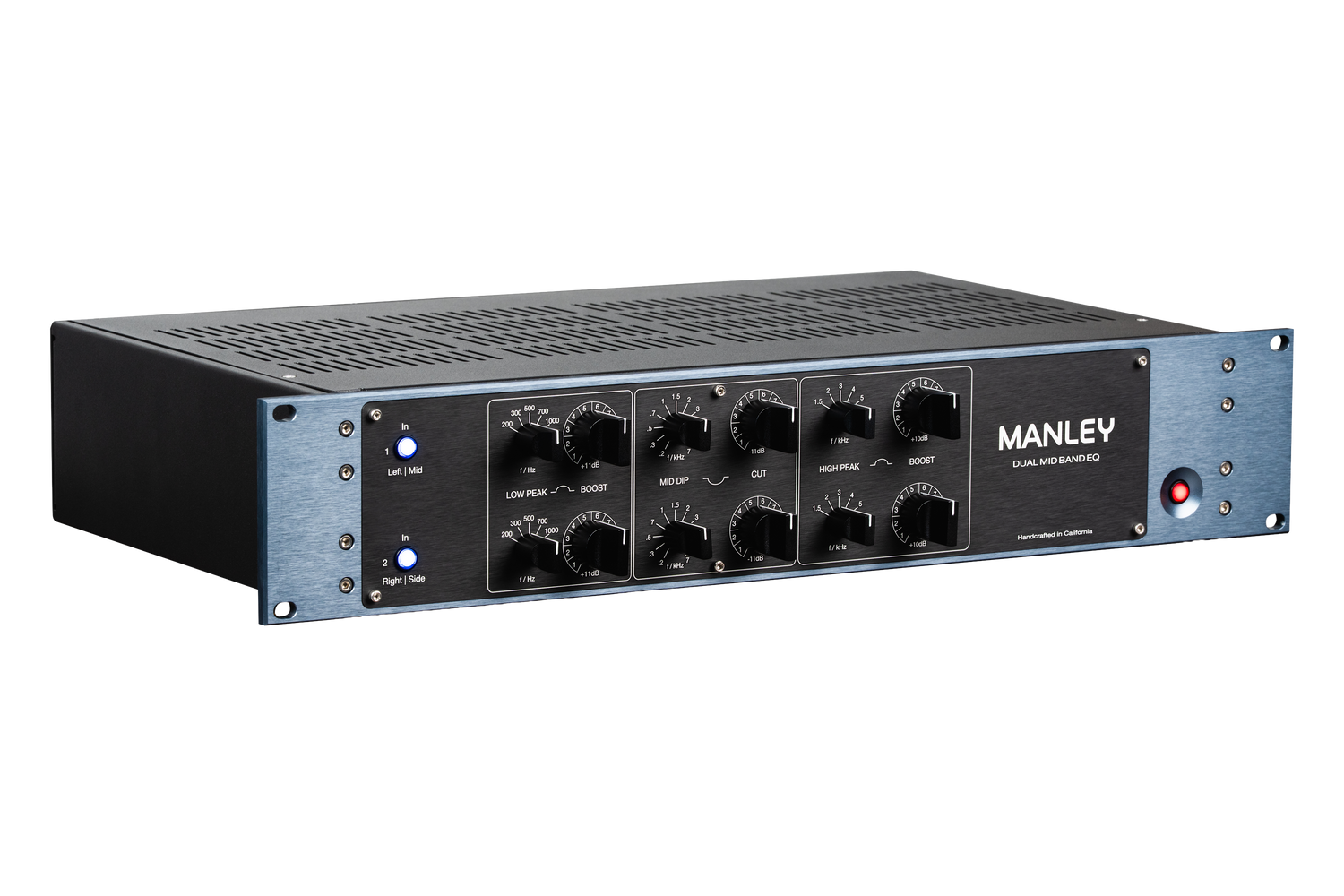

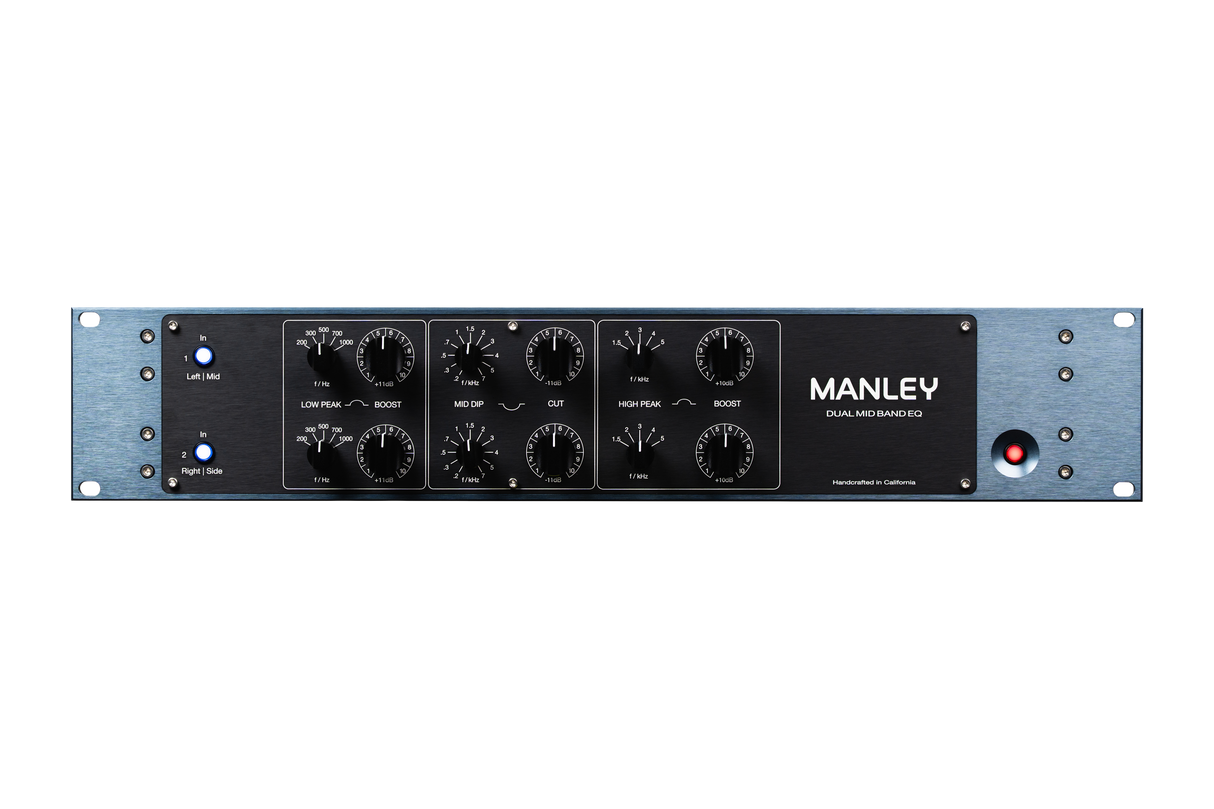

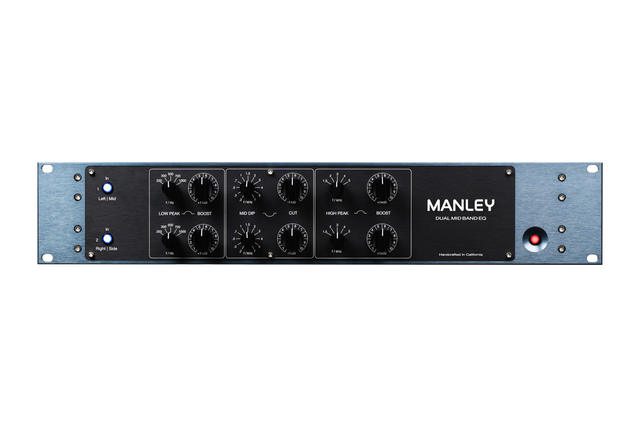

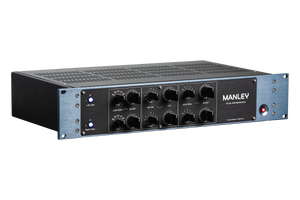

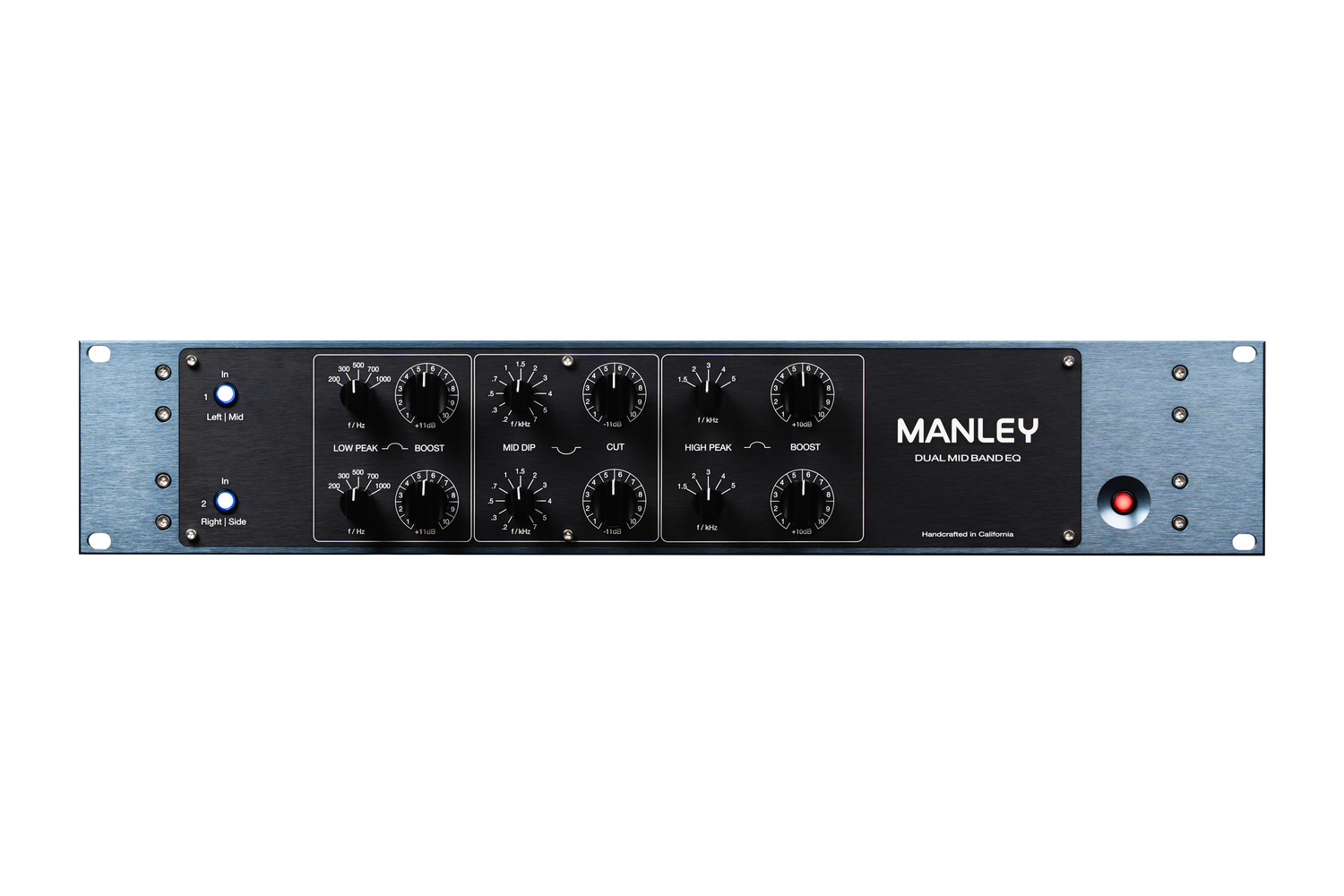

The Manley Dual Mid Band EQ is a premium dual channel passive equalizer designed to provide exceptional control over the critical midrange frequencies where clarity, presence, and definition come to life. Combining a passive inductor based EQ network with high voltage tube makeup gain and custom Manley Iron transformers, it delivers smooth, musical shaping while preserving the natural character of the source. Its precisely matched stereo channels make it well suited for recording, mix bus processing, stems, and mastering applications.

The Dual Mid Band EQ is engineered to refine vocal presence, instrument separation, and overall mix balance without introducing harshness or sacrificing depth. Its broad, musical response encourages subtle yet effective tonal adjustments, while support for both conventional stereo operation and external Mid/Side workflows provides added flexibility for modern production environments. Handcrafted in California and equipped with a universal power supply for worldwide use, the Dual Mid Band EQ delivers the signature analog sound and reliable performance that professionals expect from Manley.

Features

Passive Inductor-Based Equalization
Uses a passive inductor-based EQ design to deliver smooth, natural, and musical midrange shaping.

Mastering-Grade Midrange Control
Provides precise control over the critical midrange for improved clarity, presence, and tonal balance.

High-Voltage Tube Signal Path
Tube makeup gain restores signal level while adding warmth, depth, and the signature Manley analog character.

Custom Manley Iron Transformers
Custom input and output transformers enhance dimensionality, transient response, and overall sonic authority.

Improves Clarity and Separation
Helps vocals and instruments occupy their own space with greater focus and definition.

Musical EQ Curves
Broad, natural curves make tonal adjustments sound cohesive rather than overly processed.

True Stereo Operation
Perfectly matched dual channels maintain accurate stereo imaging for mix bus and mastering applications.

Mid/Side Compatible
Supports external Mid/Side processing workflows for flexible stereo enhancement and precise tonal shaping.

Interactive Controls
Frequency selection and gain work together to create intuitive, musical EQ adjustments.

Mixing, Mastering, and Tracking Ready
Ideal for individual tracks, stereo buses, stems, and professional mastering chains.

Universal Power Supply
Compatible with worldwide mains voltages for reliable operation in any studio environment.

Handcrafted in California
Built by Manley Laboratories using premium components for exceptional performance and long-term reliability.

Specifications

General Specifications
Device Type: Stereo passive equalizer
Format: Stereo / Dual Mono
Topology: Passive EQ
Tube Stage: 2 × 5751, 2 × 12BH7

Audio Performance
Frequency Response: 20 Hz–22 kHz (±0.1 dB)
Total Frequency Response: 10 Hz–70 kHz
THD+N: <0.01%
Signal-to-Noise Ratio: 89 dB
Dynamic Range: 115 dB
Maximum Output Level: +30 dBu

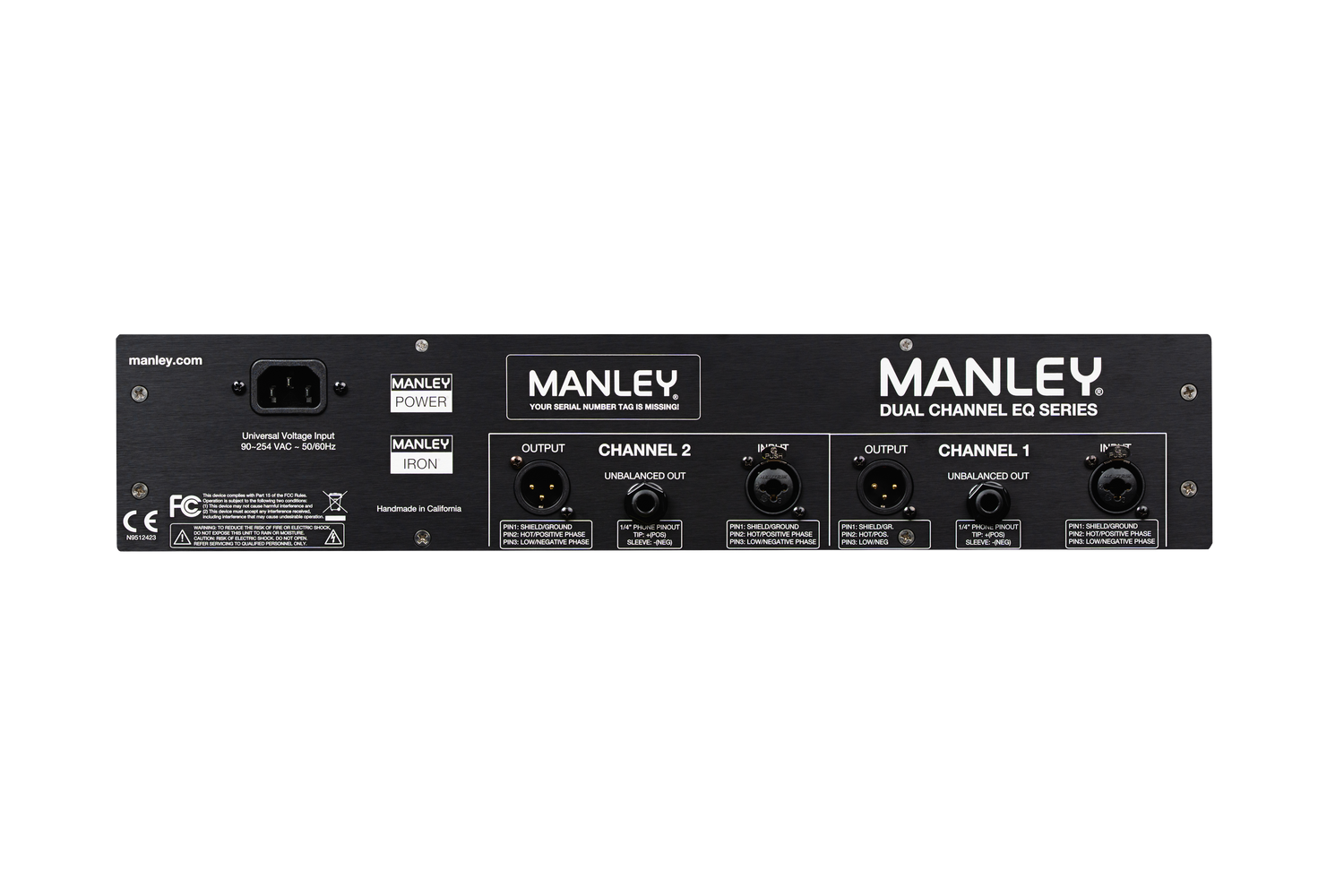

Connectivity
Inputs: Balanced XLR, transformer-coupled
Outputs: Balanced XLR, transformer-coupled; 1/4" unbalanced, direct-coupled
Input Impedance: 5 kΩ
Output Impedance: 150 Ω

Construction
Transformers: Manley Iron input and output
Bypass: All-tube signal path (non-hardwire)
Controls: Silent conductive plastic potentiometers
Power Supply: Universal switchmode
Rack Size: 2U
Dimensions: 3.5 × 19 × 7 in (89 × 483 × 178 mm)
Weight: 11 lb (5 kg)
Origin: Handcrafted in California, USA
