TK AUDIO  |  SKU: 24829

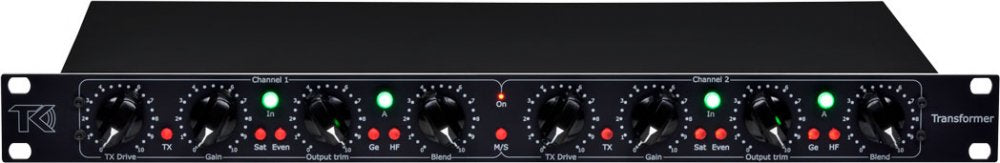

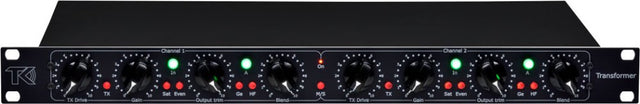

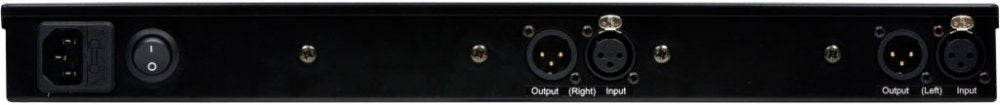

The Transformer

Enhancing

Transformer, passive and germanium saturation, vintage Class-A stage, M/S processing, blend control, analog warmth, detented knobs, illuminated switches

$2,485.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Transformer is a recording and mixing tool that transform your sound by using several different harmonic stages. The unit is divided into two sections, a harmonic generating section and a transformer coupled class-A stage with a punchy, vintage tone. If you're working mostly in the box this is the perfect tool to add some analog warmth, punch and color to your sound/mix.

The first section contains three different harmonic stages; a transformer saturation stage, a passive saturation/clipping stage and an active germanium circuit. These three stages does not only generate different kinds of harmonics, they also shape the tone curve in different ways.

With a blend function you can blend in the desired amount of harmonics. You can also choose to process the mid and side channels separately by activating the M/S function. The second section is a selectable vintage transformer coupled class-A stage.

Features

Transformer saturation circuit that adds low-end harmonics and a low-end bump.

Passive saturation circuit that adds a lot of odd and even harmonics.

Active germanium stage with a vintage sound and a mix of harmonics.

Class-A stage with a pleasant British 70's sound.

M/S function for separate processing of the mid and side channels.

Illuminated switches and detented potentiometers for easy recall.

Specifications

Input impedance: 20kohm

Max input level: +26dB

Max output level: +26dBu

S/N ratio @ 0dBu: 89dB, depends on which stages that are activated

Dynamic range: 115dB

Power consumption: 13VA

Power requirement: 115v or 230v internally selectable

Features

TX Drive control

TX Drive in/out

Gain, up to +20dB

Channel in/out

Saturation in/out

Even in/out (adds even harmonics to the saturation circuit)

Output trim, -20dB to 0dB

Ge stage in/out

Class-A in/out

HF in/out, (class-A stage HF boost)

Blend control, between harmonics stages and dry signal

M/S in/out

Detent potentiometers with 41 clicks

All switches are illuminated
