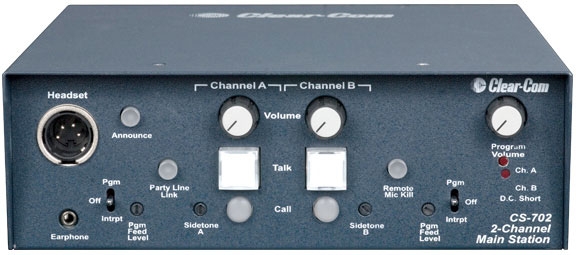

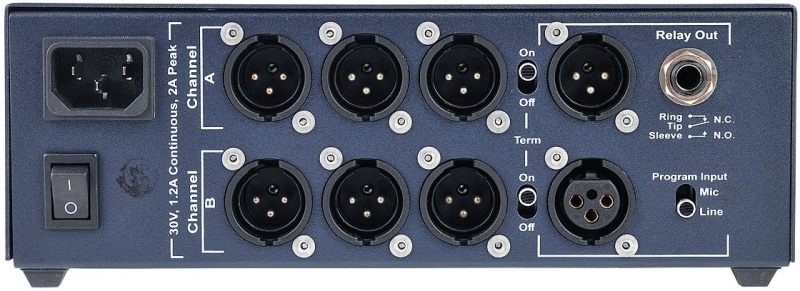

Clear-Com CS-702

The CS-702 is a portable main station with a power supply and a versatile intercom monitoring system.

It supports up to 40 beltpacks or 10 speaker stations on 2 channels. CS-702 accepts mic or line-level audio program input, assignable to either or both channels, with interrupt switch to override program.
Specifications
Input Type Dynamic
  • Input Impedance: >= 1K
  • Mic Limiter Threshold: 0dBu ± 3dB
  • Mic Limiter Range: >=15dB

  • Program Line Input
  • Maximum Level before Clipping: >= 20dBu
  • Input Impedance: >= 5K

  • Program Mic Input
  • Maximum Level before Clipping: >= -35dB
  • Input Impedance: >= 1K

  • Headset Output
  • Load Impedance: >= 8
  • Output Impedance: <= 25
  • Output Limiter Threshold: +5dBu ± 3dB
  • Maximum Output Level before Distortion: >= 17dBu

  • Party-line Output
  • Off Noise: < -74dBu
  • Output Impedance: >10K

  • Party-line Input
  • Crosstalk: < -60dB
  • Max level before Clipping: >= 12dBu
  • Sidetone Null Capability: > 25dB

  • Stage Announce/Balanced Line Out
  • Type: Balanced
  • Output Impedance: >= 200
  • Load Impedance: >= 600

  • Frequency Response
  • Headset Mic - Party-line: 200 - 18KHz ± 3dB
  • Headset Mic - Line Out: 200 - 18KHz ± 3dB
  • Program Input - Party-line: 200 - 20KHz ± 3dB
  • Program Input - Headset Out: 200 - 18KHz ± 3dB
  • Party Line - Headset Out: 200 - 18KHz ± 3dB
  • Reviews
    Price

    $1629.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the CS-702, please visit the website of Clear-Com
