BLACKMAGIC DESIGN

2110 IP presentation converter with USB-C & HDMI connections

Presentation converter, SMPTE 2110 IP, USB-C and HDMI video inputs, 45W laptop charging, HDMI and 12G-SDI outputs, XLR audio I/O.


$1,319.00 CAD
Frais de livraison calculés lors du paiement.

Parlez à nos experts
Notre équipe d'experts est là pour vous soutenir.

Livraison & Expédition

Livraison gratuite au Canada pour les commandes de plus de 200 $. Des conditions s'appliquent. Voir les détails ici .

Financement

Flexiti

Profitez d'options de financement flexibles, y compris un financement à 0 % sur certains produits. Demande rapide et plans de paiement pratiques disponibles.
Cliquez ici pour plus d'informations.


Affirm

Répartissez votre achat en paiements mensuels faciles, avec une approbation rapide et sans frais cachés.
Cliquez ici pour plus d'informations.


Equilease

Idéal pour les achats importants, Equilease propose des solutions de location personnalisées adaptées aux besoins de votre entreprise.
Cliquez ici pour plus d'informations.

Retours et politique

Vous pouvez consulter nos conditions générales ici

Description

Le convertisseur de présentation IP Blackmagic 2110 est une interface professionnelle de présentation et de collaboration conçue pour connecter ordinateurs portables, projecteurs, microphones et réseaux de diffusion IP SMPTE ST 2110 via une unité compacte unique. Spécialement créé pour les salles de conférence, auditoriums, amphithéâtres, événements d’entreprise et environnements de présentation broadcast, il permet aux présentateurs de connecter leurs ordinateurs via USB-C ou HDMI tout en diffusant de manière fluide la vidéo et l’audio dans un flux de production basé sur IP.

Une caractéristique remarquable est sa connectivité double USB-C et HDMI, facilitant la prise en charge d’une large gamme d’appareils de présentation modernes et anciens. Les entrées USB-C offrent une connectivité vidéo tout en fournissant jusqu’à 45 W de puissance de charge aux ordinateurs portables connectés, réduisant ainsi l’encombrement des câbles au pupitre. Une sortie HDMI intégrée peut alimenter des projecteurs ou écrans locaux et peut être commutée entre la source du présentateur et un retour depuis le réseau SMPTE-2110, permettant aux présentateurs de surveiller facilement le contenu. Des entrées microphone XLR professionnelles, des sorties audio symétriques et une surveillance casque simplifient encore l’installation pour les présentations et événements en direct.

Conçu pour les installations modernes basées sur IP, le convertisseur prend en charge les normes vidéo, audio et données auxiliaires SMPTE ST 2110, ainsi que la découverte NMOS, la gestion des connexions et la synchronisation PTP pour une intégration fluide dans de grands réseaux broadcast. Un panneau de contrôle intégré avec écran couleur, boutons dédiés et commande rotative permet un accès rapide aux réglages directement depuis l’unité. Avec la prise en charge des flux HD, Ultra HD et 4K, ainsi qu’une connexion Ethernet 10G capable de transporter à la fois les médias et l’alimentation, le convertisseur de présentation IP 2110 offre une solution optimisée pour intégrer les sources de présentation dans des environnements professionnels de diffusion et de production live.

Caractéristiques

Blackmagic 2110 IP Presentation Converter
Professional SMPTE ST 2110 presentation converter designed for speaker podiums, conference rooms, lecture halls, and live event venues. Combines USB-C, HDMI, audio, and SMPTE-2110 IP connectivity in a single device.

USB-C Presentation Input
Features front and rear USB-C connections for direct laptop connectivity, making it easy for presenters to connect and display content.

45W USB-C Laptop Charging
Provides up to 45W charging through USB-C, allowing connected laptops to remain powered during presentations.

HDMI Presentation Input
Includes an HDMI input for connecting laptops, media players, and presentation devices.

HDMI Projector Output
Features an HDMI output for direct connection to projectors, displays, and presentation screens.

SMPTE ST 2110 IP Integration
Connects directly to SMPTE ST 2110 broadcast networks through a 10G Ethernet connection for professional IP video transport.

Bi-Directional IP Video Connectivity
Supports both SMPTE ST 2110 IP video input and output, enabling seamless integration with IP-based production systems.

Projector Return Feed Support
Allows the HDMI projector output to display either the local presentation source or a SMPTE ST 2110 return feed from the network.

Professional Microphone Inputs
Includes dual XLR/TRS combo inputs supporting microphone and line-level sources with phantom power support.

Professional Audio Outputs
Features balanced XLR audio outputs for direct connection to PA systems, mixers, and professional audio equipment.

Headphone Monitoring Output
Includes a dedicated headphone output for local audio monitoring.

10G Ethernet Connectivity
Provides a high-speed 10G Ethernet connection for SMPTE ST 2110 video, audio, configuration, and software updates.

PoE++ Powered Operation
Can be powered directly through the Ethernet connection, simplifying installation and reducing power cabling requirements.

HD, Ultra HD and 4K Support
Supports HD, 2K, Ultra HD, and 4K video formats up to 2160p60 and 4Kp60.

HDR Workflow Support
Supports HDR metadata, HLG, and PQ transfer characteristics for modern presentation and broadcast environments.

Embedded Audio Support
Handles embedded audio over HDMI, SDI, and SMPTE ST 2110 IP workflows for complete audio and video integration.

SMPTE ST 2110 Compliance
Supports SMPTE ST 2110-20 video, ST 2110-21 traffic shaping, ST 2110-30 audio, and ST 2110-40 ancillary data standards.

PTP Synchronization
Supports IEEE 1588 Precision Time Protocol and SMPTE ST 2059 standards for accurate synchronization within IP facilities.

NMOS Integration
Supports NMOS discovery, registration, and connection management for streamlined routing and control.

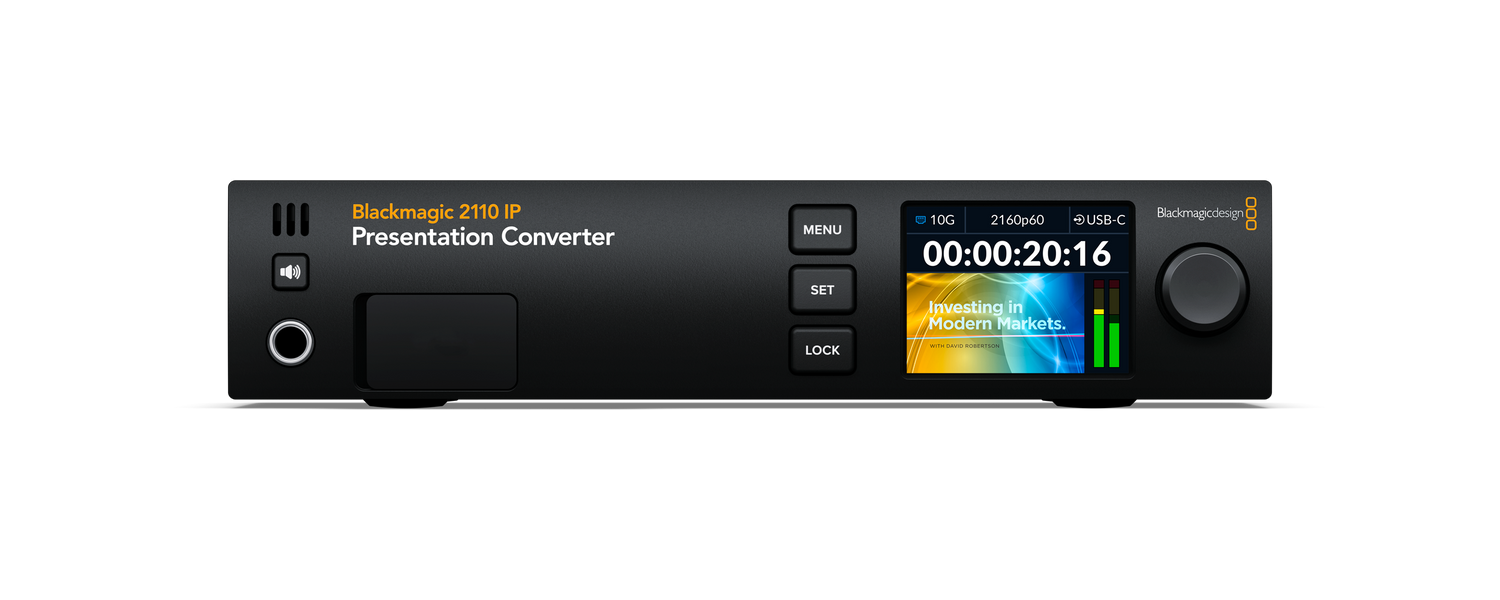

Built-In LCD Display
Features a front-panel color display with control buttons and rotary knob for status monitoring and configuration.

Compact Rack-Mount Design
Half-rack width design allows convenient installation in presentation systems, broadcast facilities, and AV racks.

Ideal for Presentation and Conference Workflows
Perfect for conference centers, auditoriums, lecture halls, corporate presentations, houses of worship, live events, and SMPTE ST 2110 production environments.

Spécifications

General Specifications
Device Type: SMPTE ST 2110 IP presentation converter
Application: Speaker podium, presentation and conference AV workflows
Form Factor: Half rack width, 1 rack unit height
Compatibility: USB-C computers, HDMI devices, SMPTE ST 2110 IP networks

USB-C Connectivity
USB-C Video Inputs: 1 x front USB-C, 1 x rear USB-C
USB Standard: USB-C 3.1 Gen 1
Data Rate: Up to 5 Gb/s
Host Charging: 45 W
Computer Video Input: Supported

HDMI Connectivity
HDMI Video Input: 1 x HDMI 2.0
HDMI Video Output: 1 x HDMI 2.0
HDMI Audio Input: 8 channels embedded audio
HDMI Audio Output: 8 channels embedded audio
HDMI Video Sampling: 4:4:4, 4:2:2, 4:2:0
HDMI Color Precision: 8-bit, 10-bit, 12-bit
HDMI Color Space: Rec.709, Rec.2020
HDR Support: HDR static metadata, HLG, PQ
HDMI Deep Color: Supported

IP Connectivity
SMPTE ST 2110 IP Video Input: 1 x 10G Ethernet
SMPTE ST 2110 IP Video Output: 1 x 10G Ethernet
Ethernet Interface: 1 x 10Gb/s RJ45
Ethernet Standards: 10/100/1000/10G BASE-T
IP Video Compliance: SMPTE ST 2110-20
Traffic Shaping: SMPTE ST 2110-21
Audio Transport: SMPTE ST 2110-30 Level C
Ancillary Data: SMPTE ST 2110-40
IGMP Support: IGMP v3

SDI Connectivity
SDI Video Output: 1
SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G
Embedded Audio Output: 16 channels
Automatic Standards Conversion: Supported

Audio Specifications
Analog Audio Inputs: 2 x combo XLR/TRS
Input Levels: Mic level, +24 dB line level
Phantom Power: +48V
Analog Audio Outputs: 2 x balanced XLR
Headphone Output: 1 x 6.35 mm jack
SDI Audio Output: 16 channels embedded
HDMI Audio Input: 8 channels embedded
HDMI Audio Output: 8 channels embedded
Audio Sampling Rate: 48 kHz
Audio Bit Depth: 24-bit

Video Standards
HD Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF Standards: 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2K Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
Ultra HD Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K DCI Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI

Video Processing
SDI Video Sampling: 4:2:2, 4:4:4
SDI Color Precision: 8-bit, 10-bit, 12-bit RGB 4:4:4
SDI Color Precision: 8-bit, 10-bit YUV 4:2:2
SDI Color Space: Rec.709, Rec.2020
HDR Support: HDR static metadata packing, HLG, PQ

SMPTE Compliance
SMPTE 274M
SMPTE 296M
SMPTE 424M
SMPTE 425M
SMPTE 2081-1
SMPTE 2081-10
SMPTE 2082-10
SMPTE ST2108-1
SMPTE ST2110-20
SMPTE ST2110-21
SMPTE ST2110-30
SMPTE ST2110-40

PTP & NMOS
Precision Time Protocol: IEEE 1588-2008 (PTP v2)
Synchronization: ST 2059-1, ST 2059-2
NMOS IS-04 Discovery and Registration: v1.3.2
NMOS IS-05 Connection Management: v1.1.2
NMOS BCP-002-01: Natural Grouping
NMOS BCP-004-01: Receiver Capabilities
Peer-to-Peer Discovery: mDNS/DNS-SD

Ancillary Data Support
Timecode: RP188 / SMPTE 12M-2
Closed Captioning: Supported
HDR Static Metadata: Supported

Codec Support
Blackmagic IP10 Codec: Supported for 12G-SDI to 10G SMPTE ST 2110 IP conversion

Control & Monitoring
Control Panel: 3 buttons
Control Dial: Spin knob
Display: 2.2-inch color LCD
Speaker Control: Front panel on/off button

Power Specifications
Power Supply: Internal 100-240V AC, 50/60Hz
Power Connector: IEC C14

Physical Specifications
Width: 210 mm
Depth: 228 mm
Height: 44 mm
Weight: 1.29 kg

Operating Systems
macOS: macOS 13 Ventura or later
macOS: macOS 14 Sonoma or later
Windows: Windows 10
Windows: Windows 11

Environmental Specifications
Operating Temperature: 5°C to 40°C
Storage Temperature: -20°C to 45°C
Relative Humidity: 0% to 90% non-condensing
